| Prod Model: |
RSM-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black Only |
| Radio: |
Mototrbo |
| Material: |
PU+Kevlar |
| Work For: |
Intercom/ Walkie Talkie Communication |
| Certification: |
CE/RoHS/FCC |
| Shoulder Speaker Microphone: |
Yes |
| Size: |
Heavy Duty Type |
| Quality: |
100% QC |
| Brand: |
Rtc or OEM |
| Warranty: |
12 Months |
| Style: |
Handheld Microphone |
| Application: |
Walkie Talkie |
| Signal Transmission: |
Wired |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Combined Type |
| Output Impedance: |
1000-20000Ω |
| Connector(',s): |
Audio Radio Connector |
Product Description

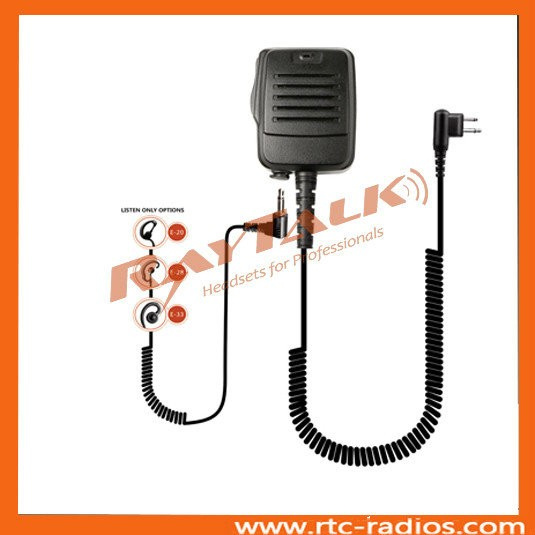

Remote shoulder speaker microphone for MOTOTRBO DP2000/DP2400/DP2600 RSM-300
Descriptions:
Heavy duty shoulder microphone
Loud and clear sound with smaller microphone head
High constructed polycarbonate housing
Built in 3.5mm audio jack
Clothing Clip 360 degree rotation
Commercial applications
Technical specification |
Speaker
|
Dimension
|
Φ36*9.8mm
|
Impedance
|
8Ω
|
Rated input power
|
1.0W
|
Maximum power
|
1.5W
|
Sound Pressure Level
|
98±3dB at 1KHz
|
Frequency Range
|
50-5KHz
|
Microphone
|
Dimension
|
Φ9.7*6.5mm
|
Type
|
Electret Condenser Microphone
|
Impedance
|
2.2KΩ
|
Sensitivity
|
-40dB±3dB at 1000Hz(0dB=1 V/Pa)
|
Operating voltage
|
2.0V
|
Directivity
|
Omni directional
|
Wire
|
Dimension
|
Φ4.2
|
Durable temperature
|
60ºC~20ºC
|
Material
|
TPU Black
|
This speaker microphone has been designed for most radio applications. By adding an optional connector to this mic it can be used on many radio applications.
Your one stop source for Two way radio accessories. (Safety & Comfortable Communication)
RayTalk Communications & Technology was established in 2003 as a professional manufacturer of two way radio Accessories & Aviation headsets, and has continued to provide worldwide customers with the best in two-way communications products and services/ Our team of sales, service, engineering and operations are among the most qualified and best trained in the two way radios industry.
Our products include audio accessories, headset, earpiece, surveillance kit, speaker microphone, throat microphone, batteries, battery chargers compatible with Motorola, Kenwood, Icom, HYT, Vertex/Standard, GME, Unider and Tait products.
RayTalk has delivered comprehensive, dependable, and cost-effective solutions to meet the demands of our clients and on site support service tailored to the specifications and budgets of our clients. OEM & ODM are also welcome, our teams of experts work closely with customers and listen to your opinions with an aim to create products that suits your requirements.
At RayTalk, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction. With the skill, range of service, stability and resources, we believe we can become your long-term communications partner.
