| Prod Model: |
SP-767C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
Air Plug |
| Chip: |
CCD |
| Definition: |
720tvl |
| Waterproof Grade: |
IP69k |
Product Description

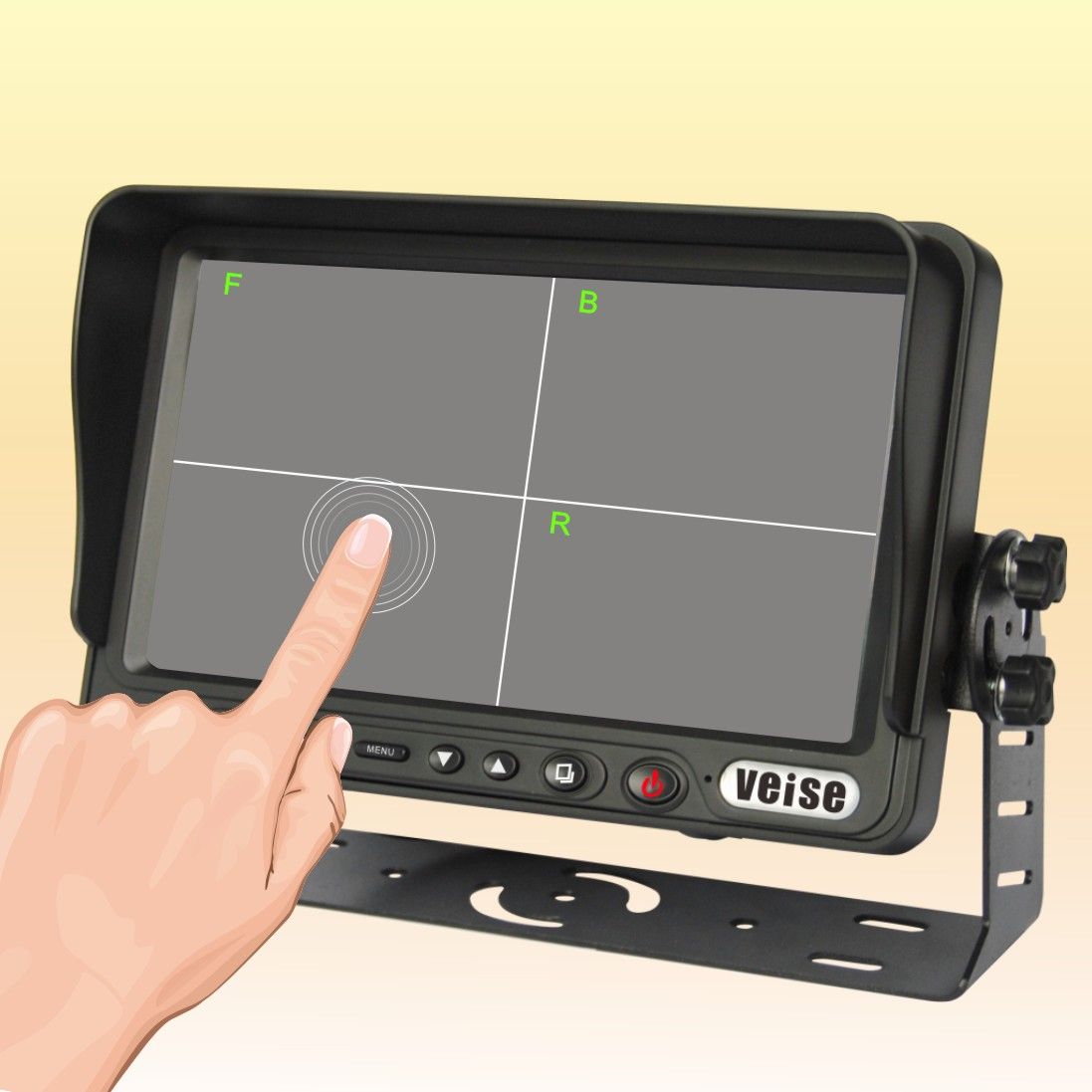

7"Touch Screen for Farm Tractor, Trailer, Truck
7 inches digital screen display, supports quad triplex, dual,single touch screen display;USA Techwell car regulation dedicated digital video processor;
Quad touch monitor, easy to oprate, support single- point touch.
Quad touch screen support shortcut touch to Single View. Totally with 9 different view modes.
Quad touch screen support single-piont touch to single/dual view, slid to turn on/off.
OSD MENU Support 4 language: Chinese, English, French, German
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s
LED backlight display with constant voltage constant current circuit protection design.
Load Dump: DC14+87V(Td400mS) 5pulses
Touch Quad Monitor(Model: SP-767C) |
7" Touch Screen TFT LCD Quad Monitor with Removable Sun Visor, 13 pin cable |
Supports quad view single-point touch to single view, slid to switch the view modes. With shortcut keys toSingle View. |
Totally with 9 different view modes. Each camera can be full displayed when it is triggered. |
OSD MENU Separately Set Each Camera Trigger Priority/Separately ruler ref. |
OSD MENU Support 4 language: Chinese, English, French, German |
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s |
OSD MENU Separately Set Each Camera Image Can be Rotated to Mirror or Non-mirro |
Engineering model can set any screen display mode, ruler ref. display mode,
on screen LOGO on/off, no signal blue/black screen switch,etc. |
Touch Screen: Resistive panel, support single-point touch, slid touch |
Color System:PAL/NTSC (AUTO) |
Display Resolution: 800RGB(H) X 480(V) dot |
Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 |
Brightness (cd/m2): 400 |
Contrast ratio: 500:1 |
Operating temperature: -20ºC to +70ºC |
Storage temperature: -30ºC to +80ºC |
Load Dump: DC14+87V(Td400mS) 5pulses |
Free Operating Voltage: DC11-32V |
External dimensions:L*W*T(185X122X28)mm(without mounting) |
Weight Approx:800g
|
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
