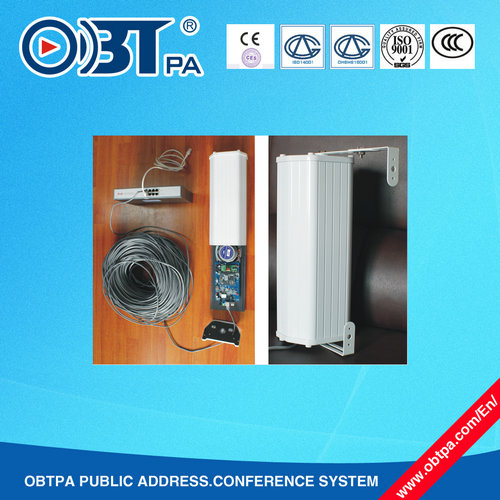

Waterproof IP Network Speaker, Audio Solution Speaker

Prod Model:	OBT-POE902
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Obpta
Model Number:	Obt-9806
Power Supply:	DC 12V
Power Consumption:	25W
Network Interface:	RJ45
Transmission Speed:	10/100Mbps
Audio Format:	MP3
Sensitivity:	92db
S/N Ratio:	≤0.1%
Weight:	242X182X162mm
Speaker System:	2.0 Channel
Application:	Commercial
Operation Mode:	Wire / Remote Control
Hi-Fi:	Hi-Fi
Speaker Material:	Metal
THD:	0.005%-0.01%
Noise:	<95dB
Certification:	FCC

Product Description

Waterproof IP Network Speaker, Audio Solution Speaker:

Product Description Mode:

Power Supply
POE Power Supply

Or External Connect to DC+12V

Standby Power Consumption
5W

Power Consumption
25W

Network Interface
RJ45

Transmission Speed
10/100Mbps

Support Protocol
TCP/IP, UDP, IGMP(Group Broadcast)

Audio Format
MP3/MP2

Audio Model
16digit stereo CD level

Sample Rate
8K~48K

Bit Rate
8K~512Kbps

Rated Power Consumption
8W

Peak Power Consumption
10W

Sensitivity
92dB

Frequency

Response
100Hz~16kHz+1/-3dB

S/N Ratio
≤ 0.1%

THD
90± 3dB;

Weight
242X182X162mm

Dimensions
1.15Kg


Application: 1. Professional network audio decoder integrated wall-mounted speakers, built-in digital fixed- resistance amplifier and high-fidelity loudspeakers;
2. Installed in room, offices, rooms and other places.

Application: 1. Integrated wall-mounted design, exquisite appearance, sophisticated technology, filling with the high-grade temperament;
2. Equipment uses embedded computer technology and DSP audio processing technology; Uses high-speed industrial-grade chips, 100 devices connecting to the server just need a second;
3. Full digital transmission, full support POE (IEEE 802.3af) power supply, only need one network cable connection, construction is simple and low cost;
4. With DC backup power interface, power demand is more than 10W or for non-POE powered network;
5. Intelligent adjustment, adaptive power supply, automatic power adjustment digital power amplifier, the performance and the efficiency are always optimized to maximize;
6. Amplification unit with full-band and high sensitivity, with plenty of power, high-fidelity CD-quality sound;
7. Need to be used together with POE switches;
8. You can connect at any place which have the Ethernet port, support cross-segment and cross-routing.
Easy to operate, without manual setting, connecting automatically to server once there is online of network, Automatically complete the synchronization with the servers

Two kinds of working modes: Online and offline, still can perform timing tasks when there is network failure
Bandwidth: 20Hz-20kHz;
Rated Power: Built-in 2X10W amplifier, 10W is to promote local speakers, another 10W is to promote external passive speakers;
Speaker Unit: 1X5 inch + tweeter;
Material: ABS engineering plastic shell, exquisite workmanship, and anti-shock;


Delivery: 1. Sample time: In stock or 7-10 days.

2. Mass production time: 25-30 days.


What any other speakers we can make here? Land speakers, waterproof column speaker, wooden column, Wall mount speaker, indoor wall speaker, ceiling speaker,

Waterproof ceiling speaker, subwoofer speaker, hanging speaker, Horn speaker etc.
