Prod Model: |
OBT-9808 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Local Broadcast Audio Sound: |
120-16000Hz |
Communication Interface: |
RJ45 |
Line Output: |
1000mv |
Line Input: |
500mv |
Power Supply: |
~AC 220V 50Hz |
Frequency Response: |
40-18000Hz |
Native Speakers Power: |
2W |
Color: |
Black |
Dimensions: |
230*126*47mm |
Weight: |
0.55kg |
Certification: |
CCC |
Application: |
Public Place |
Usage: |
Public Place |
Product Description

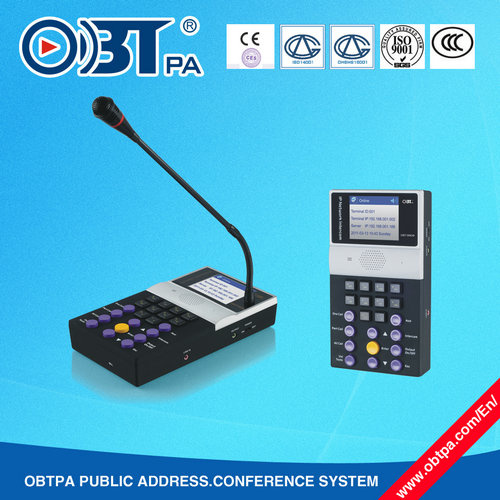

PA System TCP wireless IP Microphone for Paging console used in school,office,prison,shopping mall
Features:
Appearance neat, beautiful lines, durable, desktop and wall-mounted optional;
TFT color screen display, screen-friendly, high-keyboard design, 21 pieces of numeric keys and function keys, display clearly, easy to operate;
Built-in high-level speakers, 10 electronic volume control;
The device uses an embedded linux technology and DSP audio processing technology design; using industrial-grade chips;
Numeric keypad dialing, call any terminal, achieve full-duplex intercom;
Can be connected to an external speaker, voice calls are clear and loud;
Built-in high sensitivity microphone, wide area of the sound capture, high sound reproduction ;
Support wired network and WIFI wireless internet access modes;
Support four ways to get tracks : the server, local memory, U disk and line in
Support remote unicast, multicast and all broadcast in a LAN environment ;
Two kinds of working modes: online and offline, still can perform timing tasks when
there is a failure of network.
One audio auxiliary output, external expansion to active speakers or headphones;
One local signal input, achieve external audio input and implement the local emergency broadcast input;
a DC5V power supply interface;
Can connect to the Ethernet wherever there is a Ethernet port, support cross-segment and cross-routing.
Technical parameters:
Model
OBT-9808
Network Interface
Standard RJ45
Protocol Support
TCP/IP,UDP,IGMP(group broadcasting)
Audio Model
MP3
Sample Rate
8K~96KHz
Transmit Speed
10/100Mbps
Audio Format
16 digit stereo CD tone
Output Frequency
20Hz~18KHz
THD
≤0.2%
Noise Signal Rate
>80dB
Auxiliary line input level
350mV RCA Screw terminals
Speaker Output Impedance
and Rated Power Output
8Ω,RCA Screw terminals
Line Out Voltage Input
1000mV 3.5 Screw terminals
Line Out Resistance Input
1KΩ
MIC Input Sensitivity
10mV
Working Temperature
5ºC~40ºC
Working Humidity
10%~90%
Power Consumption
10W
Standby Power Consumption
≤1W
Power Supply
DC5V
Dimensions
430×110×165mm
Weight
1Kg
Lead time:
Sample: In stock
Mass production: 5 working days
Service:
Good Service:
1. Professional sales reply you enquiry in 24Hrs
2. Feedback of complaint in 24Hrs
3. OEM/ODM are welcomed
4. 2 years Warranty
Warranty:
1. All products have been strictly Quality Checked before packing.
2. All products have been well packed before shipping.
3. All products with 2 years warranty.
After Sales Service:
1. We are always online to solve all your request.
2. Any faulty product, we can send replacement to you freely
3. To ensure your receive the order tax free upon import, we are willing to declare lower value.
Shenzen OBTPA Technology Co., Ltd is a collecton Research and Development, production, sales, public addess series products of the high-tech industry type company, which was located at Shenzhen, Guangdong. Since the company was founded in 1999, adhering to the consant innovation and creat value for the customer.
