| Prod Model: |
MDS100D |
| Heating & Cooling: |
Pipe Buired System |
| Heat Source: |
Water-source |
| Interior Material: |
Spray Coating |
Product Description

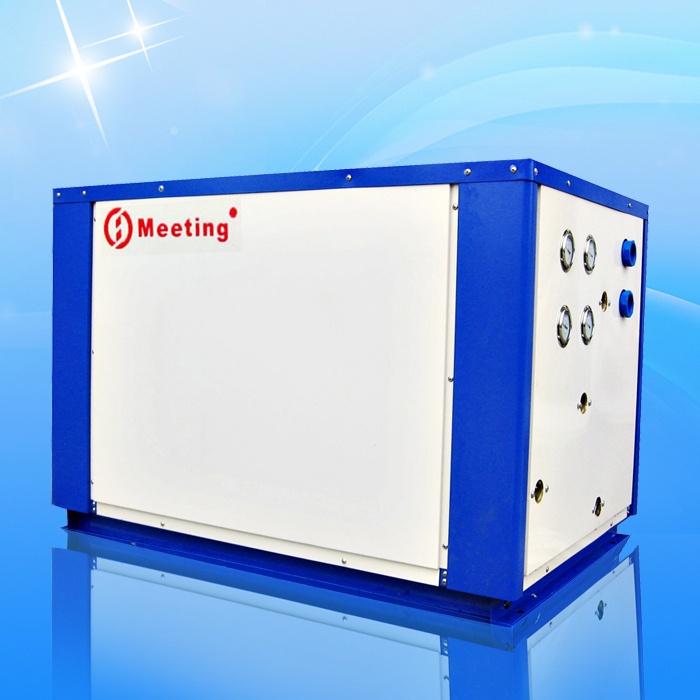

Water To Water Heat Pump Water Heater MDS100D
*Technical parameters:
Rated power: 8.8KW
Heating capacity: 38KW
Cooling Capacity: 28KW
Rated voltage: 380 V
Rated frequency: 50Hz
Rated current: 18A
Outlet water rated temp: 55deg
Outlet water max temp: 60deg
Cold water drop: 3-5deg
Water flow: 10000L/H
Pipe size: DN40mm
Dimension: 1450× 750× 650 mm
Weight: 330Kg
Defend grade: IPX4
Defend electric shock grade: 1 grade
Noise: <60dB
Refrigerant: R417A/R410A/R407C
*Major collocation: Compressor, evaporator, condenser, electronic control system.
*Energy saving equipment.
*No pollution to the environment.
Guangzhou Jinlun Electric Equipment Co., Ltd., is a professional manufacturer of heat pump products, it's in 2001. After several years effort and searching, we have got our stable marktet in the world.
In the pass few years only, It has attained ISO9001, CE, CCC, GMC and EN14511 certifications.
With our advanced technology and production equipment, we provide a wide range of heat pump products from air source heat pumps, water source heat pumps, geothermal source heat pumps, trinity heat pumps to swimming pool heat pumps, all of them are durable and quite energy-saving.
We have always sticked to the philosophy of improving product quality and service. With our excellent quality, outstanding brand, good after-sales service, effictive management system, modern facilities, and favorable prices, our products have been enjoying a good sales and reputation in Europe, America, the Middle East, Southeast Asia and Australia etc. Today, we are about to expand our business to more countries and regions all over the world. Please don't hesitate to contact us for further information. Let us have long-term cooperation.
