| Prod Model: |
MD60D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Source: |
Air-source |
| Interior Material: |
Copper |
Product Description
Air Source Heat Pump
Detail description of Air Source Heat Pump:

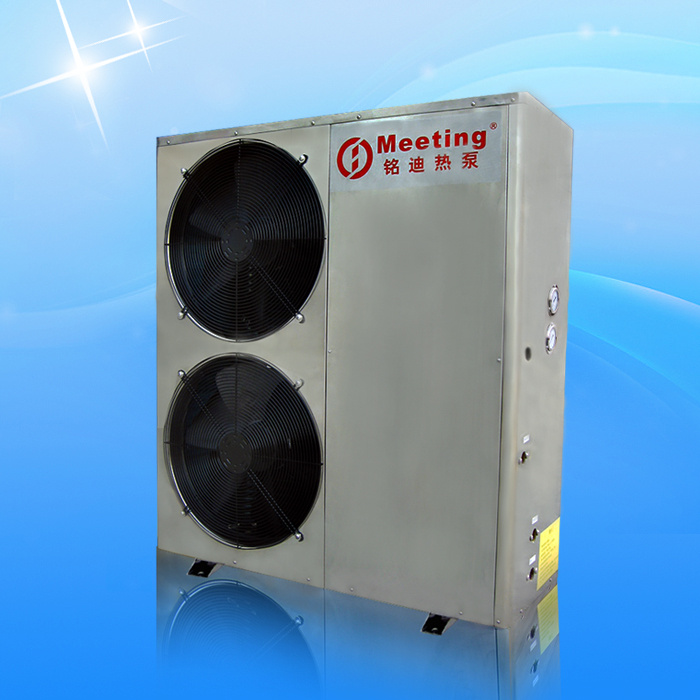

Model No. MD60D air source heat pump
1. CE, CCC, ISO approval
2. Easy to install, low cost on it, low consumption
3. Enery saveing, input power 4.4KW, Output 18 KW
4. Coated metal and stainless steel can use for cabnet
5. Accept customer's design if big quantity
Air source heat pumpTechnology parameters:
MODEL Unit MD60D
Rated heating capacity KW 24.5
Hot water supply L/h 520
Average heating input power KW 5.68
Rated heating input current A 27/12
Max outlet water temp ° C 60
Power V/Hz 220V/380/50
Noise dB(a) 60
Dimension W*D*H mm 1390*760*900
Unit weight KG 240
Refrigerant R417A/R407C
Working air temp range (-20° C)_45° C
Compressor Type Copeland
Air source heat exchanger Type Finned heat exchange
Fan Type axial flow fan
Hot water side heat exchange Type Coil heat exchanger
Water flow L/H 6000L/h
Water pressure down Kpa 48
Pipe size DN 40
Trade term
1> Packing: Standard Export Packing (Ply wooden case), 56 units for per 40" container
2> Pay term: 30% T/T Of Total value as deposit to start the produce, And 70% the balance before shipping
3> Delivery time: Within 15 days after receive the deposit
4> Effective date: The price validity is 1 month
5> Warranty: 14 months Since the delivery day
6> Discount will be offered base on one container
7> MOQ=2
1. High-efficient energy-saving:
1). Heatpump water heater use heat energy from air(including heat recovery and via compressor work produceing more heat energy release to water to achive get hot water.
2). Saving more than 75% energy consumption compared to traditonal heaters.
3). During the work process it will not produce watse, no pollution
4). They delivery fresh air to people to make cool to the air, against air conditioner, let people escap greenhouse
5). They delivery clearn energy to people, Contributuion significant to fight against CO2 emission
6). Very coordinate with Copenhagen conference. Low carbon, low exhaust
2. Air source heat pump uniques:
1). Janpanese Panasonic or American Copeland compressor.
2). Evaporator is larger than usual size to keep its high efficiency.
3). Water pressure reaches 0.6Mpa-0.9Mpa.
4). Full automaticlly start and stop according to setup temperature.
5). LCD touch- screen controller. 2
3. Automatic control:
1). High/low pressure protection and sufficient water flow protection, automatic units on/off timeclock
2). Automatic reversing defrosting function enables units to work reliablely in hard winter
3). Units run automaticlly according to setted water temperature.
2. Special defrosting technology makes the heat pump more efficient, higher COP
3. Special heat exchanger designs provide excellent performance at low ambient temerature and high humidity.
Air source heat pump water heater have good responds from many customers in many different countries, both in quality and price!
Guangzhou Jinlun Electric Equipment Co., Ltd., is a professional manufacturer of heat pump products, it's in 2001. After several years effort and searching, we have got our stable marktet in the world.
In the pass few years only, It has attained ISO9001, CE, CCC, GMC and EN14511 certifications.
With our advanced technology and production equipment, we provide a wide range of heat pump products from air source heat pumps, water source heat pumps, geothermal source heat pumps, trinity heat pumps to swimming pool heat pumps, all of them are durable and quite energy-saving.
We have always sticked to the philosophy of improving product quality and service. With our excellent quality, outstanding brand, good after-sales service, effictive management system, modern facilities, and favorable prices, our products have been enjoying a good sales and reputation in Europe, America, the Middle East, Southeast Asia and Australia etc. Today, we are about to expand our business to more countries and regions all over the world. Please don't hesitate to contact us for further information. Let us have long-term cooperation.
