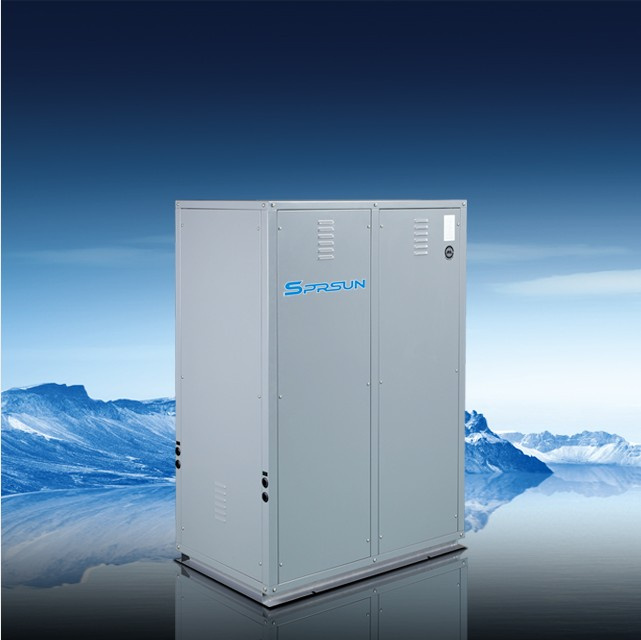

Water to Water Heat Pump Water Heater (CE, ISO9001, EN14511 test report by TUV) (CGS-36)

Prod Model:	CGS-36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet:	Stainless Steel or Spray Coating
Compressor:	Copeland
Condenser:	Copper Double-Pipe Heat Exchanger
Refrigerant:	R407c/R404A/R417A
Working Condition:	No Affected by Air Temperature
Max Outlet Water Temp:	65 Degree C
Working Voltage:	220-240V/1pH, 380V/3pH, 50Hz
OEM/ ODM:	Available
Transportation:	FOB/CIF/CNF/CFR
Payment:	30% Deposit, 70% Before Delivery
Heat Source:	Water-source
Certification:	En14511 for TUV
Work Environment:	Low-temperature Heat Pump
Heat Temperature:	50-70??C
Application:	Restaurant/Commercial Building/Office

Product Description

Water source heat pump(CE, ISO9001, EN14511 test report by TUV)

Water souce heat pump is a kind of high energy saving water heater and green products.
Following is water source heat pump working principle.
Mode: Heating mode(for house heating and hot water)

1. Sanitary hot water or house heating
2. Working condition of source side water temperature: 7 degree C to 35 degree C
3. Max outlet water temperature of load side is 60 degree C
4. Installed in basement or any place you want
5. Open loop of source side, exchange heat with river, underground water, and so on.
6. Refrigerant: R407C, R410A, R417A, R404C can be optional.
7. Heating capacity: 10.4~97.2 KW

1. Features:

1. Using a new intelligent defrosting system, one-touch control
2. Copeland Digital Scroll Compressor, EVI technology, increased 20% when -10 C heating capacity
3. Nano spray evaporator, hydrophilic aluminous foil, high heat transfer efficiency
4. Titanium built-in coil technology, not easy blocked. Enhance the heat transfer coefficient, ensure adequate hot water temperature
5. Security and stability, environmental protection and create a pleasant living.
6. Distinguished luxury and various colors
7. COP reach 4.0
8. Wide application

2. Principle diagram&Installation diagram:
Use electric to drive compressor work. The main heat is not from electric, but from river water, underground water, ocean water or soil, Refrigerant is heat transfer media. It transfers heat from source water to building water. Q1 from source + W from compressor=Q heat release to building water. Normally, Q/Q1=5: 1.

3. Usage:
Users can use it to supply sanitary hot water or/and heating house, house heating and house cooling.

4. High COP:

1) Economy: The operating cost is only 1/4 of electric water heater, and 1/2 of oil water heater, 2/3 of solar water heater. 2) COP is more than 4.0.
3) EVI worked at cold areas from -20C to 40 C, increased 20% when -10 C heating capacity.
4) Safe and no pollution: Water and electricity are completely separated. No electricity leak, No explosion, No CO.
5) General testing and operational test carried out for every unit before delivery.

5. Top quality: (compare to other suppliers)

1) Copeland/Panasonic/SANYO scroll compressor with R410A/R407C/R417A refrigerant.
2) Water exchanger equipped with high efficiency tube in shell heat exchanger, finned tube heat exchanger or plate heat exchanger.
3) Evaporator: Using surface modification of hydrophilic aluminous foil.
4) Expansion valve: Refrigerant flow control accurate.
5) LCD display control panel. Intellectual control water pump, water supplement, water discharge and defrosting system.

6. Quality control&product certifications:

7. Services:

1) SPRSUN can supply OEM service for customers.
2) Produce heat pump according to customer's special demands.
3) Supply spare parts according to order quantity.
4) General testing and operational test carried out for every unit before delivery.
5) Long warranty period.

Guangzhou Sprsun New Energy Technology Development Co., Ltd is a professional group enterprise, which focuses on the research and development, style design, precision manufacture, sale and service of heat pump products. With first-calass manufacturering facilities, we have skillful and stable producing team, modern cooperation system and a normalized mangement team. Let SPRSUN will become your professional consultant, stable and cooperative partner and close friend Forever.
