| Prod Model: |
CGK/C-22(HC) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Housing Material: |
Stainless Steel |
| Compressor: |
Copeland |
| Expansion Valve: |
Danfoss |
| Max Outlet Water Temp: |
60 Degree C |
| Working Condition: |
-7 Degree to 43 Degree C |
| Refrigerant: |
R407c, R404c, R410A, R417A |
| Cop: |
up to 4.2 |
| OEM Service: |
Available |
| Warranty: |
18 Months Since Delivery Date |
| HVAC Solution: |
We Offer HVAC Solution for Special Project |
| Heat Source: |
Air-source |
| Certification: |
En14511 |
| Work Environment: |
Common Heat Pump |
| Heat Temperature: |
50-70??C |
| Application: |
Shopping Mall |
Product Description

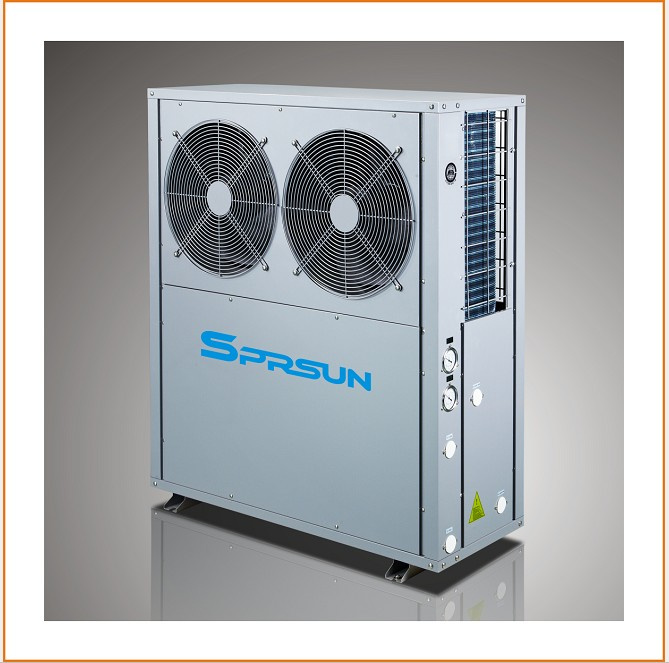

Heat pump air heater air conditioner
Features:
1. Sanitary hot water or house heating
2. Working condition range: -7° C to 43° C
3. Max water outlet temperature: 60° C
4. Copeland scroll compressor
5. High efficiency shell and tube water heat exchanger
6. LCD display controller
7. Multiple protection and query function
8. Easy to install, installed on outdoor wall or in yard or on the top of house
9. Refrigerant: R407C, R410A, R404C, R417A can be an option.
10. Side discharge, Modern design
1. Main components
1) Copeland scroll compressor, High efficiency and low noise, Two-way scroll soft design
2)Condenser, double pipe heat exchanger, copper material tube, large heat exchanging area
3)Evaporator, inside thread copper, hydrophilic aluminous foil and balanced liquid seperator
2. Working Diagram:
3. Our heat pump advantages
1). Use special heat pump Copeland scroll compressor, high efficiency, low noise, long lifetime, self protection, large working range.
2). High quality defrost: Sprsun adopt double way defrost, one is 4-way valve reverse direction, one is electric heater defrost. Double defrost way can save defrost time and let defrost completely.
3). Hultiple protection: No matter what fault happen, the display panel will show the error code and heat pump stop to protect itself.
4). Preheat compressor in cold days, avoid liquid impact in compressor.
5). Different series products, suitable of different customers.
4. High COP:
1) Economy: The operating cost is only 1/4 of electric water heater, and 1/2 of oil water heater, 2/3 of solar water heater. 2) COP is more than 4.0.
3) EVI worked at cold areas from -20C to 40 C, increased 20% when -10 C heating capacity.
4) Safe and no pollution: Water and electricity are completely separated. No electricity leak, No explosion, No CO.
5) General testing and operational test carried out for every unit before delivery.
5. Our services:
OEM service include:
1). Supply heat pump without any brand for customer.
2). Supply heat pump with the label of customer's brand on heat pump body and display panel.
3). Produce heat pump according to customer's special demands
4). Supply spare parts according to order quantity.
5). Good price
6. Quality control and product certifications
Guangzhou Sprsun New Energy Technology Development Co., Ltd is a professional group enterprise, which
Focuses on the research and development, style design, precision manufacture, sale and service of heat pump
Products. With first-calass manufacturering facilities, we have skillful and stable producing team, modern
Cooperation system and a normalized mangement team. Let SPRSUN will become your professional consultant, stable and cooperative partner and close friend forever.
We import Geramn advanced technology. We have supplied plans of energy rebuilding project and construction works for many large and middel-size enterprises, commercial buildings, hotels, schools and hospitals.
SPRSUN has a very excellent R&D team, parts of them are the people who enter heat pump field earliest in
China. SPRSUN has advanced simulation laboratory, automatic controlling and PID adjusting system, advanced detection device. Engineers can detect not only all machines in workshop but also develop new products by advanced professional software.
|
Specifications |
Model |
CGK/C-12(HC) |
CGK/C-18(HC) |
CGK/C-22(HC) |
CGK/D-36(HC) |
CGK/D-42(HC) |
CGK/D-52(HC) |
CGK/D-72(HC) |
CGK/D-95(HC) |
|
Heating input power |
Heating mode |
KW |
2.03 |
4.09 |
4.9 |
8.24 |
9.84 |
10.6 |
14.2 |
18.8 |
|
Heating capacity |
KW |
8.1 |
16.4 |
19.5 |
32.8 |
39.1 |
43.4 |
57.2 |
75.6 |
|
COP |
|
3.99 |
4.01 |
3.98 |
3.98 |
3.97 |
4.09 |
4.03 |
4.02 |
|
Heating current |
A |
10.2 |
7.5 |
8.5 |
14.5 |
17 |
20 |
26 |
33 |
|
Water flow when heating |
L/h |
2000 |
4000 |
4600 |
8000 |
9200 |
10500 |
13800 |
18500 |
|
Cooling input power |
Cooling mode |
KW |
2.32 |
4.71 |
5.42 |
9.42 |
10.6 |
12.3 |
15.9 |
22.3 |
|
Cooling capacity |
KW |
6.3 |
12.8 |
15.1 |
25.6 |
29.6 |
33.4 |
43.8 |
60.2 |
|
EER |
|
2.72 |
2.72 |
2.79 |
2.72 |
2.79 |
2.72 |
2.75 |
2.70 |
|
Cooling current |
A |
10.70 |
8.00 |
9.30 |
16.00 |
18.50 |
22.00 |
28.00 |
36.00 |
|
Water flow |
L/h |
1400 |
2800 |
3400 |
5600 |
6700 |
7500 |
10200 |
13500 |
|
Standard components |
Power supply |
V |
220V~240V/50Hz/1ph |
380V~415V/50Hz/3ph |
|
Compressor |
|
Copeland scroll compressor |
|
Condenser(copper) |
|
Double-pipe heat exchanger |
shell and tube heat exchanger |
|
Evaporator |
|
blue hydrophilic aliuminium foil\wavy fin and copper tube heat exchanger |
|
Cabinet |
|
Galvanized sheet/ Spray coating / gray color |
|
Working mode |
|
heating and cooling mode |
|
Package |
|
corrugated board case |
Plywood case |
|
Refrigerant |
|
R407C |
Founded in 1999 as a professional heat pump manufacturer, Guangzhou SPRSUN new energy Technology Development Co., Ltd has been in heat pump business for about 15 years. It is built up to meet customers' special energy saving needs with advanced technology support from Germany while ISO9001, ISO14001 have been obtained.
Our Products
With a strong R&D center and production line, we are specialized in producing and supplying air source heat pump, water/ground source heat pump, swimming pool heat pump, high temp. Heat pump, EVI heat pump for cold area and so on. All the products are developed and produced based on EN14511 standard that CE, CB, GS, CCC, ETL certificates and patents are obtained while for some, EN14511 test report are released by TUV.
Our Markets
Our products are welcome by lots of customers all over the world for its energy saving performance and good quality which keeps customers free from worries of the problem. Our main market is Germany, Britain, Sweden, Serbia, Turkey, the Czech Republic, Russia, Australia, South Africa and so on.
Our Service
With dedicated professional members in engineering team, production team, management team and marketing team, we are willing to cooperate with you from the very beginning to the end. Our service covers from project consultation, product design, sampling, production to quality control, logistics, shipping, technical support, after sales service and other important functions.
Over the years, excellent products based on leading technology and professional service have earned SPRSUN its reputation as the world's leading heat pump manufacturing and supplying company. Let's grow stronger and inspire the next together.
