| Prod Model: |
OBF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
3pH400V 50Hz |
| Diameter: |
35mm |
| Size(L): |
1000mm |
| Brand: |
OEM |
| Usage: |
Oil |
| Motive Force: |
Pressure |
| Type: |
Wire Mesh Filter |
Product Description

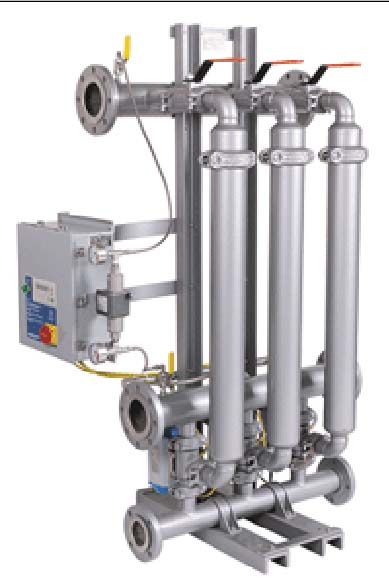

A complete automatic back flush wire mesh filtration system consists of the filter vessels, air opreat 3-ways valve, wire mesh covered filter candle.
The heart of the filtration system is a pressure vessel containing a wire mesh-covered, perforated tube. The tube is attached to of the vessel. Fabrication of this assembly is such that any liquid flow, in either top-to bottom or bottom-to-top direction, must flow through the perforated tubes. In the filtration mode of operation liquid flows vertically up through the filter tubes into the pressure vessel dome. From there the filtered liquid is transported to machine.
While the dirty paticles on the filtering cloth-covered tubes increasing, the filter pressure increase, the back flush process will be actinved as the pressure get up to set value.
The OBERY OBF self back flush wire mesh filter is modular design, the filter vessles quantity fixed on one frame can be up to 20 PCS, the filter precision level can be up to 5 um.
The filter is on line filter, suitable for uninterrupted system
Applicable medium: Oil water
Precision level: 5~20um
Max flow: 10000LPM
| MODEL | OBF3 | OBF5 | OBF7 | OBF10 |
| Vessel No. | 3 | 5 | 7 | 10 |
| Filter area(m2) | 1.5 | 2.5 | 3.5 | 5 |
| Differential pressure set | 0.2~0.15Mpa |
| Back flush time set | 0~200min |
| Control way |
Auto/Manual |
Shanghai Obery Filter CO. Ltd is a professional company which concentrates on the filtration and separation, it's a comprehensive one to be engaged in reseach, develpment, design, manufacturing and sales. Since our company established, we insist on high quality and perfect service, and welcome by our clients. Obery main product have Air filter, Bag filter, Paper gravity filter, Vacuum paper filter, Pre-coat filter, temperature control system.
Since the established, Obery had obtained many honorable customers in Europe(Junker and Schaudt grinding machine in Germany, Comau in France)GM in United States and the United Kingdom, 3nine AB in Africa etc., now we are searching and sincerely welcome the other customers to join us together to achieve "WIN WIN".
Obery had its own R&D department, can make and design the product as per the customer requirement, at the same time, we have strong and professional technical team to provide the after sales service in oversea market, which real achieve "choose Obery, choose guarantee".
