| Prod Model: |
OGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Frequency: |
50Hz |
| Size(L*W*H): |
1500*1200*800mm |
| Brand: |
OEM |
| Filtration Medium: |
Coolant |
Product Description

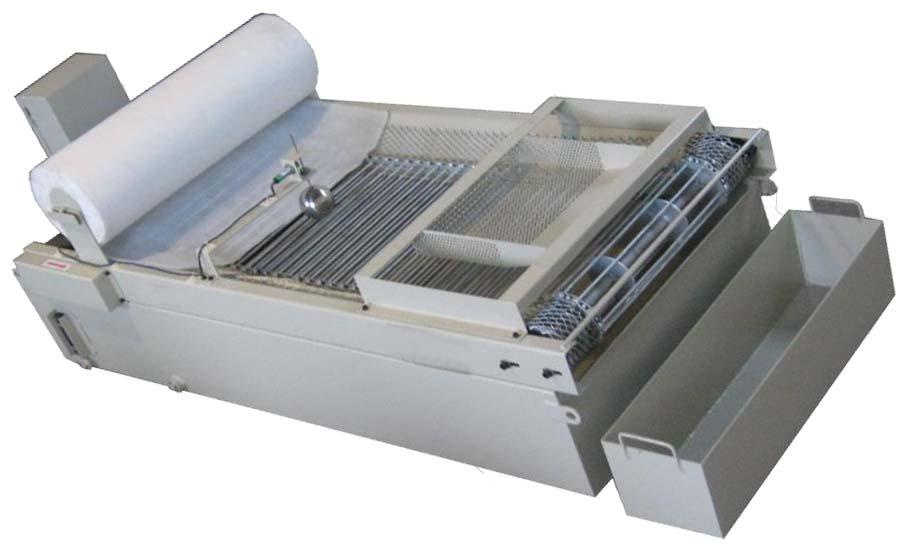

OGF series Gravity Paper Filter consists of fluid tank, waste cloth case, non-woven synthetic filter fabric (normally called filter cloth), driving system, signal system, reducer and liquid pump etc. This machine can replace filter cloth automatically, the machine will stop running after replacing of filter cloth, then start a new filtering cycle. The cleaned liquid is collected in the tank, then returned to the main machine by pump.
OGF series Gravity Paper Filter can fully clear away the various metal and nonmetal tiny impurity in the coolant (oil), especially suitable for finishing machines such as various grinder, polishing machine. When magnetic impurity in filtering liquid is too much, the double-filtration can be used by adding another magnetic separator, i.e. firstly the separator clean away the most of magnetic
impurity, then filtered by filter cloth, that can effectively reduce the consumption of the filter cloth as well as improving the filtering effect.
Model |
Flowrate |
Pressure | A | B | C | D | E |
| OGF100 | ≤100L/min | 3bar | 1400 | 1780 | 280 | 415 | 1000 |
| OGF200 | 100~200L/min | 3bar | 1800 | 2180 | 280 | 415 | 1000 |
| OGF300 | 200~300L/min | 3bar | 2200 | 2280 | 280 | 415 | 1000 |
| Can be customized according to the customer request |
Shanghai Obery Filter CO. Ltd is a professional company which concentrates on the filtration and separation, it's a comprehensive one to be engaged in reseach, develpment, design, manufacturing and sales. Since our company established, we insist on high quality and perfect service, and welcome by our clients. Obery main product have Air filter, Bag filter, Paper gravity filter, Vacuum paper filter, Pre-coat filter, temperature control system.
Since the established, Obery had obtained many honorable customers in Europe(Junker and Schaudt grinding machine in Germany, Comau in France)GM in United States and the United Kingdom, 3nine AB in Africa etc., now we are searching and sincerely welcome the other customers to join us together to achieve "WIN WIN".
Obery had its own R&D department, can make and design the product as per the customer requirement, at the same time, we have strong and professional technical team to provide the after sales service in oversea market, which real achieve "choose Obery, choose guarantee".
