| Prod Model: |
HLC~ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling And Heating: |
Cooling and Heating |
| Power Supply: |
380V/50Hz/3pH |
| Refrigerant: |
R407c |
| Cop: |
4.8 |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| China Energy Efficiency Standard: |
Level 1 |
| Capacity: |
27000-48000 BTU |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |

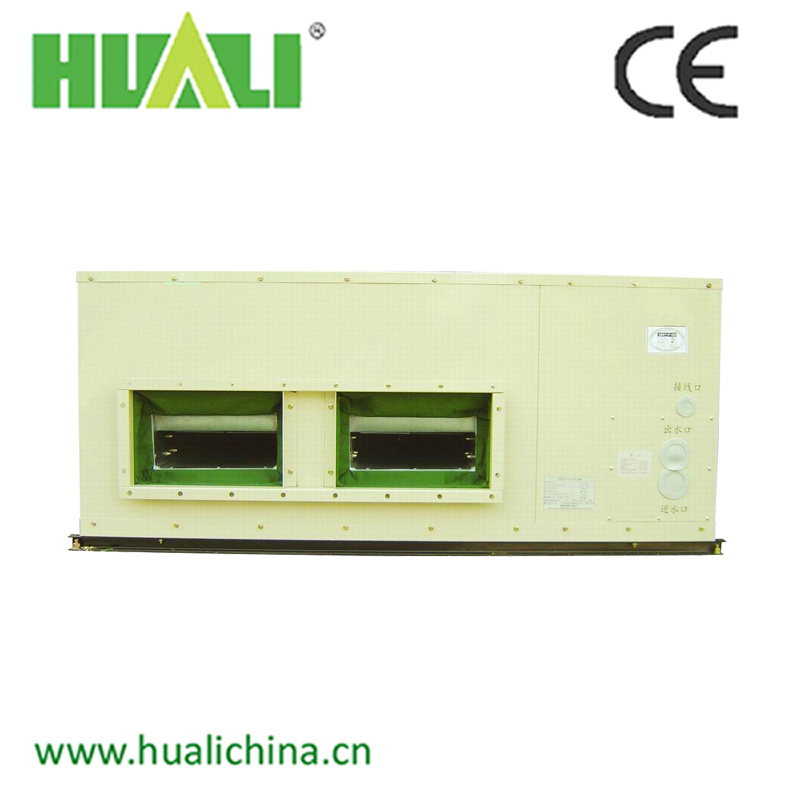

Product Description
1. Air Coil: Die formed plate type aluminum fins mechanically bonded to high efficiency inner grooved copper tubes.
2. Galvanized steel construction, closed cell foam lined compressor and fan compartments, with an insulated and powder coated drain tray for complete moisture protection.
3. The units are well insulated to minimize condensation and attenuate noise.
4. Units are fitted with a high and low pressure lockout protection.
5. Each unit is intelligently controlled by PC as split model through remote and line control; Or at most 32 units can be controlled centralized also.
6. When the system is used for rent apartment or office building, shops and residential compartments, each unit can have independent ammeter.
| Model HLLS- | 10H | 11H | 20H | 24H | 41H | 50H | 54H | 71H | 95H |
| Specifications | Heating input power | Heating | KW | 2.08 | 2.33 | 4.22 | 5.02 | 8.48 | 10.1 | 11.2 | 14.8 | 19.8 |
| Heating capacity | KW | 10.1 | 11.3 | 20.4 | 24.2 | 41.1 | 48.8 | 54.2 | 71.2 | 95 |
| Max outlet water temp | Degree | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| COP | | 4.86 | 4.85 | 4.83 | 4.82 | 4.85 | 4.83 | 4.84 | 4.81 | 4.80 |
| Cooling input power | Cooling | KW | 1.71 | 1.62 | 2.8 | 3.4 | 3.7 | 5.6 | 6.8 | 11.2 | 13.2 |
| Cooling capacity | KW | 9.64 | 9.64 | 15.9 | 19.2 | 21.4 | 31.8 | 38.4 | 63.6 | 74.1 |
| Min outlet water temp | Degree | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| EER | | 5.64 | 5.95 | 5.68 | 5.65 | 5.78 | 5.68 | 5.65 | 5.68 | 5.61 |
| Water flow of load side | L/h | 2100 | 2100 | 3200 | 3800 | 4800 | 6200 | 7300 | 12400 | 19800 |
| Water flow of source side | L/h | 1800 | 2010 | 3650 | 4300 | 7294 | 8653 | 9615 | 12611 | 16815 |
| Pipe size | mm | 25 | 25 | 25 | 25 | 25 | 32 | 32 | 50 | 65 |
| Noise | db | 50 | 50 | 50 | 50 | 50 | 55 | 55 | 55 | 55 |
| Net weight | kg | 90 | 90 | 125 | 135 | 280 | 300 | 372 | 482 | 582 |
| Gross weight | kg | 96 | 96 | 135 | 145 | 295 | 320 | 412 | 532 | 642 |
| Level of protection | | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Electric shock proof grade | | I | I | I | I | I | I | I | I | I |
| Standard components | Cabinet | | Galvanized sheet/ Spray coating / gray color |
| Dimension | mm | 1280*830*800 | 1280*830*800 | 1280*830*800 | 1280*830*800 | 1280*830*800 | 1280*830*800 | 1400*1120*900 | 1750*1120*900 | 2000*1120*900 |
| Packing dimension | mm | 1340*890*950 | 1340*890*950 | 1340*890*950 | 1340*890*950 | 1340*890*950 | 1340*890*950 | 1460*1180*1050 | 1810*1180*1050 | 2060*1180*1050 |
| Refrigerant | | R407C/2.4kg*1 | R407C/2.4kg*1 | R407C/3.3kg*1 | R407C/3.6kg*1 | R407C/3.3kg*2 | R407C/3.6kg*2 | R407C/5kg*2 | R407C/7kg*2 | R407C/9kg*2 |
| Power supply | | 220V/50Hz/1ph | 380V/50Hz/3ph |
| Power supply L wire line | Mm2 | 2.5 | 2.5 | 4 | 6 | 6 | 6 | 10 | 10 | 16 |
| Power supply N wire line | Mm2 | | 1.5 | 2.5 | 2.5 | 2.5 | 2.5 | 4 | 4 | 6 |
| Compressor model | | ZW30KAE | ZW34KAE | ZW61KAE | ZR72KCE | ZR81KCE | ZW61KAE | ZR72KCE | ZW108KAE | VR144KSE |
| Compressor | | Copeland 1pc | Copeland 1pc | Copeland 2pcs |
| Load side HE | | Double-pipe heat exchanger | shell and tube heat exchanger |
| Source side HE | | Shell and tube heat exchanger |
| 4-way valve | | SHF-11-45D1*1 | SHF-11-45D1*1 | SHF-20A-46*1 | SHF-20A-46*1 | 2*SHF-20A-46*2 | 2*SHF-20A-46*2 | 2*SHF-20A-46*2 | 2*SHF-35A-79*2 | 2*SHF-35A-79*2 |
| Thermal expansion valve | | Emerson 3Ton | Emerson 3Ton | Emerson 5Ton | Emerson 6Ton | Emerson 5Ton*2 | Emerson 6Ton*2 | Emerson 7.5Ton*2 | Emerson 10Ton*2 | Emerson 12Ton*2 |
| AC contactor and thermal relay | | Fuji |
| Controller | | SPRSUN multiple function controller |
| Protection function | | Tempreature protection, time protection, water flow protection, antifreeze protection, current protection |
| Water pressure switch | | 0.015Mpa :OFF, 0.03Mpa: ON |
| High pressure switch | | 3.0/3.4MPa |
| Low pressure switch | | 0.15/0.32MPa |
| Package | | Plywood case |
| Working mode | | heating mode and cooling mode |
