| Prod Model: |
HLC-34VC--238VC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating And Cooling: |
Heating and Cooling |
| Power Supply: |
AC220V/50Hz |
| Cooling Method: |
Direct Cooling |
| Certification: |
CE |
| Condition: |
New |
Product Description
Fan coil series
1, High wall fan coil unit, wall mounted fan coil unit, split fan coil
2, vertical exposed and concealed fan coil unit
3, ceilling fan coil, Floor standing fan coil
4, cassette fan coil
5. Horizontal concealed fan coil, horizontal expose fan coil unit
Can be applied for air conditioner, chillers.
Specifications
Vertical concealed fan coil unit:
With CE certificated
Coling capacity: 1.8KW to 112.6KW;
Heating capacity: 2.7KW to 19KW;
Jinhuali is a professional factory which specialized in refrigeration euquipment, such as fan coil units, water chiller and heat pump, air conditioner

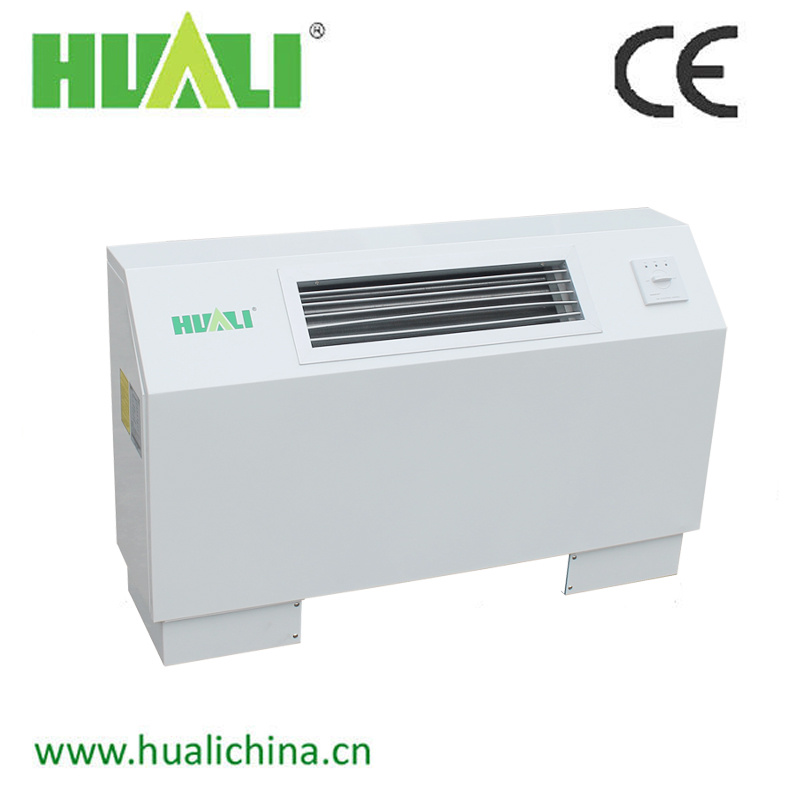

Vertical concealed fan coil unit
1) Structure of series product: Units have been designed for both vertical and horizontal positioning
2) Air volume: 34, 51, 68, 102, 125 and 150
3) Electric source: 230V, 1PH, 50/60Hz
3) Structure for switch: Manual, electrical and three-speed switch
5) Hydraulic terminals are supplied accompanied by plastic envelope fixed to the top of hydraulic terminal containing
6) Instruction manual
7) Guarantee certificate
8) Can be use remote handset and wired wall pad control
| Vertical Concealed Fan Coil |
| Model HLC ~ | 34VC | 51VC | 68VC | 85VC | 102VC | 136VC | 170VC | 204VC | 238VC |
Air flow
(m 3 /h) | High speed | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| Medium speed | 255 | 383 | 510 | 638 | 765 | 1020 | 1275 | 1530 | 1785 |
| Low speed | 170 | 255 | 340 | 425 | 510 | 680 | 850 | 1020 | 1190 |
Cooling capacity | High | W | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 |
| BTU | 6143 | 9215 | 12287 | 15359 | 18430 | 24574 | 30717 | 36860 | 43004 |
| Medium | W | 1620 | 2440 | 3290 | 4120 | 4850 | 6550 | 8190 | 9730 | 11580 |
| BTU | 5529 | 8328 | 11229 | 14062 | 16553 | 22355 | 27952 | 33208 | 39523 |
| Low | W | 1310 | 2010 | 2650 | 3320 | 3900 | 5300 | 6610 | 7860 | 9350 |
| BTU | 4471 | 6860 | 9044 | 11331 | 13311 | 18089 | 22560 | 26826 | 31912 |
Heating capacity | High | W | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | 18900 |
| BTU | 9215 | 13823 | 18430 | 23038 | 27645 | 36860 | 46076 | 55291 | 64506 |
| Medium | W | 2350 | 3520 | 4530 | 6040 | 6850 | 9260 | 11740 | 14140 | 16360 |
| BTU | 8021 | 12014 | 15461 | 20615 | 23379 | 31604 | 40069 | 48260 | 55837 |
| Low | W | 1620 | 2470 | 3130 | 4170 | 4740 | 6500 | 8180 | 9710 | 11290 |
| BTU | 5529 | 8430 | 10683 | 14232 | 16178 | 22185 | 27918 | 33140 | 38533 |
| Cooling water temperature | 7-12°C |
| Hot water temperature | 40 °C -60 °C |
| Power supply | AC220V/50Hz |
| Water resistance kPa | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 50 |
| Working pressure | 1.6MPa |
| Fan motor quantity | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 4 |
Dimension | L mm | 530 | 530 | 740 | 780 | 920 | 1150 | 1385 | 1605 | 1795 |
| W mm | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| H mm | 628 | 628 | 628 | 628 | 628 | 628 | 628 | 628 | 628 |
| 20GP container loading quantity | 361 | 361 | 258 | 245 | 208 | 166 | 138 | 119 | 106 |
| 40GP container loading quantity | 710 | 710 | 509 | 483 | 409 | 327 | 272 | 235 | 210 |
| Main materials |
|
|
|
|
|
|
|
|
|
| Aluminium thickness:0.014mm, Copper tube thickless:0.35mm, Galvanized sheet: 1mm, Packing: Carton |
|
|
|
|
