| Prod Model: |
HLLS-12.5P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner |
| Certification: |
CE |
| Mounting: |
Floor Standing |
| Condition: |
New |
| Type: |
Package Air Conditioner |
Product Description
Specifications
*Cooling and Heating
*Cooling capacity: 15-67.0 kw
*Heating Capacity: 15.9-71.0 kw
*CE Certificate

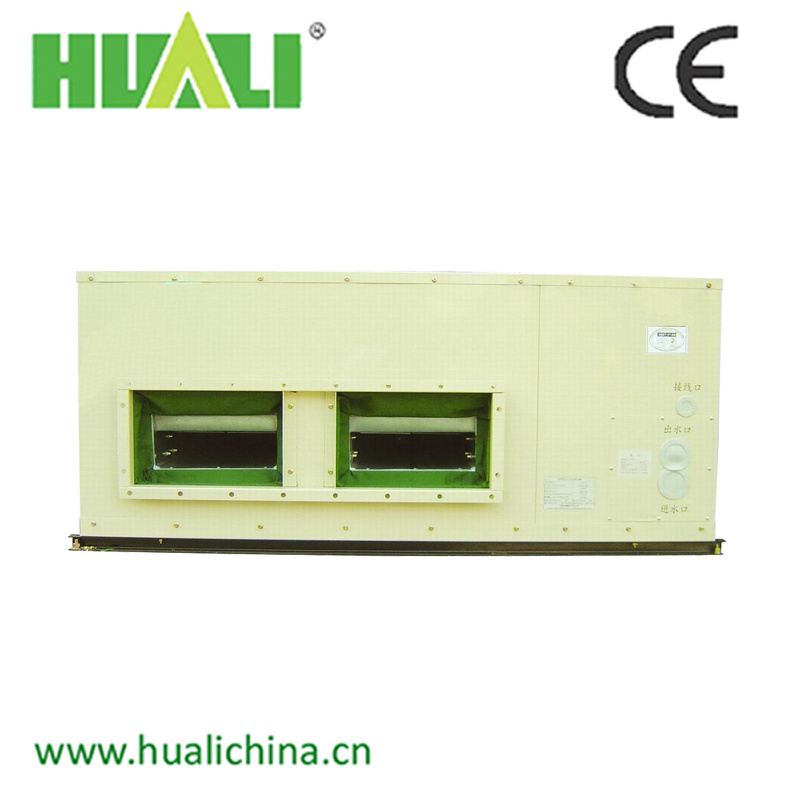

Air Cooled Ceiling Type Packaged Unit
Features
1. Separate Refrigeration System: Every compressor has its own refrigerant circuit, which can control energy easily.
2. Scroll Compressor: Special design, lower noise than the same reciprocating compressor, strong ability of liquid anti-strike, high EER, more reliable.
3. Heat Exchanger: Copper tubes with high performance aluminum fins, excellent ability of dehumidifying, high heat transfer coefficient.
4. Polyester Powder Coating electrostatic spraying three times, strong anti-erosion ability, looks as the new after a long time.
5. Intelligent Control: Easy operation; Adjust temperature automatically; Diagnose fault itself, and make it easy for examine and repair
| Model HLLS~ | 05P | 08P | 10P | 12.5P | 15P | 20P | 25P |
Unit Property | Cooling Capacity | KW | 16.7 | 26.4 | 33.5 | 38.0 | 50.2 | 66.0 | 76.0 |
| Rated Air Flow | CMH | 2500 | 4000 | 5100 | 6200 | 7800 | 10200 | 12600 |
External Static Pressure | Pa | 100 | 150 | 150 | 200 | 200 | 200 | 250 |
| Power Supply |
| 3PH 380V 50Hz |
| Operating Power | KW | 4.0 | 6.5 | 8.2 | 8.9 | 12.1 | 15.3 | 17.8 |
| Running Current | A | 8.5 | 13.5 | 16.6 | 17.4 | 24.6 | 30.4 | 34.2 |
Cooling Max. Input Power | KW | 5.8 | 9.3 | 11.7 | 12.6 | 17.4 | 21.9 | 25.2 |
Cooling Max. Current | A | 12.0 | 19.2 | 23.6 | 24.3 | 35.0 | 43.1 | 47.9 |
| Noise | dB(A) | ≤62 | ≤62 | ≤64 | ≤65 | ≤65 | ≤67 | ≤68 |
Compressor | Type | Hermetic Scroll Type |
| Qty | 1 | 2 | 2 | 1 | 3 | 2 | 2 |
| Power | KW | 3.5 | 5.7 | 7.1 | 7.4 | 10.6 | 13.1 | 14.8 |
| Fan | Type |
Outer Rotor | The Belt Transmission Centrifugal |
| Qty | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Power | KW | 0.45 | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3 |
| Air Filter | Nylon netting |
| Evaporator | Ripple Aluminum Fins around Copper Pipe |
| Refrigerant | R22/R407C |
| Condenser | Type | Shell and Tube Type |
Cooling Water Flow | CMH | 3.5 | 5.5 | 7.0 | 7.8 | 10.5 | 13.6 | 15.6 |
Water Pipe Diameter | in | 1-1/4 | 1-1/2 | 1-1/2 | 2 | 2 | 2 | 2 |
Condensed Water Drainage Pipe Diameter | in | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Safety Protection | High/low pressure switch protection, Compressor overload Protection over current protection,
Phase sequence protection,Start delay protection, Oil heater, Cooling water flow too littleprotection,
Electric wire overheating protection, The fusible plugs, Fuse, etc. |
| Dimension | W | mm | 1370 | 1620 | 1620 | 2000 | 2000 | 2300 | 2400 |
| D | mm | 890 | 1100 | 1100 | 1150 | 1150 | 1150 | 1270 |
| H | mm | 630 | 740 | 740 | 820 | 820 | 970 | 1000 |
| Net Weight | kg | 210 | 350 | 375 | 450 | 530 | 650 | 700 |
