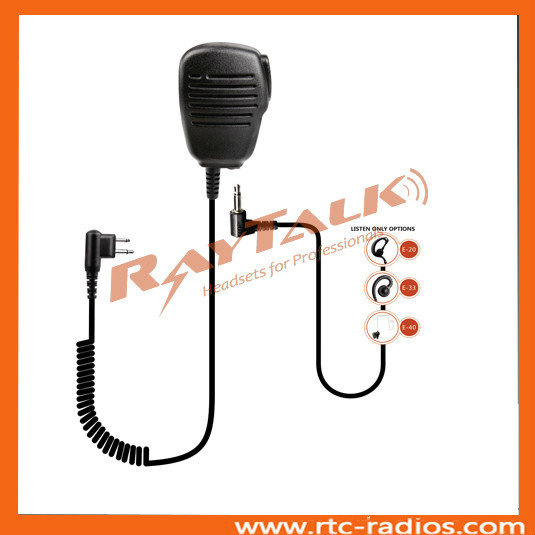

Walkie Talkie Handled Speaker Microphone for CP040/CP140/CP200

Prod Model:	RSM-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Communication:	Wired
Connector:	for Motorola Cp040/Cp140/Cp200 etc
Voice:	Loud and Clear
Color:	Black
Use For:	Security, Policeman, Swat, etc
Warranty:	12 Months
Cerficate:	CE/RoHS
Cable:	Kevlar+PU
Material:	TPU Black
Item:	Walkie Talkie Handled Speaker Microphone for Cp040
Style:	Handheld Microphone
Signal Transmission:	Wired
Sound Channel:	Mono
Application:	Two Way Radio/Walkie Talkie
Connector(',s):	for Motorola, Kenwood, Icom, Hytera Connector, Rtc

Product Description

1.  Remote speaker microphone
2.  Light duty remote speaker microphone
3.  Built in 3.5mm accessory  jack
4.  Connector is optional
5. Walkie talkie handled speaker microphone for CP040/CP140/CP200




TECHNICAL SPECIFICATION
Speaker
Dimension	Φ36*9.8mm
Impedance	8 Ω
Rated Input Power	1.0W
Maximum Power	1.5W
Sound Pressure Level	98 dB±3dB at 1KHz
Frequency Range	50Hz - 5KHz
Microphone
Dimension	Φ9.7*6.5mm
Type	Electret Condenser Microphone
Impedance	2.2K Ω
Sensitivity	-40dB ± 3dB at 1000Hz(0dB=1V/Pa)
Operating Voltage	2.0V
Directivity	Omni directional
Wire
Dimension	Φ4.2mm
Durable temperature	60 ºC-20 ºC
Material	TPU Black

Feature



1. Light weight compacts shoulder microphone

2. Great sounding transmit and receive audio

3. Small size: measures only 3''H×2''W×0.6''D(excluding clip)

4. Integrated PTT button

5. High constructed poly-carbonate housing

6. Strain relief cable for maximum durability

7. Spring loadedm metal reinforced clothing clip 360 degree rotation

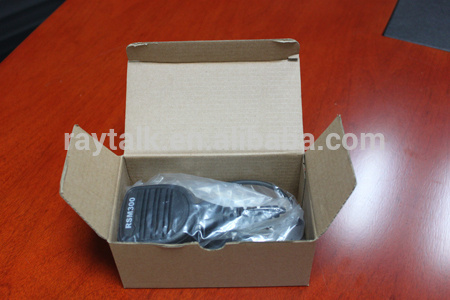

Package

1pc with polybag



Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone

Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc.

Optional Connector
Motorola:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, GP300, GP600, GP88, GTX, GTX800, GTX900, P110, P1225, P1225LS, P1325, P225, SP1225, TALKABOUT, T280, TA2280, TA280, TA289, VISAR, I305, GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, EX500, EX560, EX600, GL2000, GP328PLUS, GP338PLUS, PTX700PLUS, PTX760PLUS, GP628, GP644, HT1000, GP1200, GP2010, GP2013, GP900, HT1100, HT6000, JT100, JT1000, MOBIUS, MT2000, MT2100, MTS1200, MTS2000, MTX8000, MTX838, MTX868, MTX9000, MTZ2000, MTP850, MTP800, MTH650, HTH800, MOTOTRBO, XPR6300, XIRP8200, XIRP8208, XIRP8260, XIRP8268, XPR6350, XPR6500, XPR6550, XPR6580, XBR6300. XBR6350, XBR6500, XBR6550, XBR6580, DP3400, DP3600, DGP4150, DGP6150, GTP800, APX7000

Kenwood:
TK208, TK308, TK2102, TK2107, TK238, TK3102, TK3107, TK338, TK2100, TK2100K2, TK260, TK260G, TK261, TK270, TK272, TK272G, TK278, TK3100, TK3100K2, TK3101, TK360, TK360G, TK370, TK370G, TK372, TK372G, TK373G, TK378, TK259, TK355, TK359, TK250, TK250G, TK250N, TK350, TK350G, TK350N, TK353, TK353N, TK430, TK431, TK2140, TK2160, TK2170, TK2360, TK3140, TK3148, TK3160, TK3170, TK3173, TK3360, TK2212, TK2300, TK2302, TK3212, TK3300, TK3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207, TK3302U, TK4100, TK490, TK180, TK190, TK280, TK290, TK380, TK390, TK480, TK481, TK5400, TK3130, TK3131, NX200, NX300, TK-208, TK-308, TK-2102, TK-2107, TK-238, TK-3102, TK-3107, TK-338, TK-2100, TK-2100K2, TK-260, TK-260G, TK-261, TK-270, TK-272, TK-272G, TK-278, TK-3100, TK-3100K2, TK-3101, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-372G, TK-373G, TK-378, TK-259, TK-355, TK-359, TK-250, TK-250G, TK-250N, TK-350, TK-350G, TK-350N, TK-353, TK-353N, TK-430, TK-431, TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3148, TK-3160, TK-3170, TK-3173, TK-3360, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK-2200, TK-2200L, TK-2200P, TK-2202, TK-2202L, TK-2207, TK-3200, TK-3200LP, TK-3200P, TK-3201, TK-3202, TK-3207, TK-3302U, TK-4100, TK-490, TK-180, TK-190, TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-5400, TK-3130, TK-3131, NX-200, NX-300

HYT(Hytera):
TC-268, TC-368, TC-268S, TC-368S, TC-370M, TC-380M, TC-3000, TC-3600, TC-3600M, PT-790, TC-780, TC-500, TC-600, TC-700, TC-610, TC-620, TC-2110, TC-1600, TC-510, CPS, CP-380, CP-330, CP-150, CP-350, CP-220, TC-500S, TC-585, TC-610S, TC-720S, TC-710, TC-510

etc
