cold room description :
Name:professional manufacturer turnkey cold room
Temperature: Can be -65~+20°C degree Celsius
Voltage: 380V/3P/50HZ or 220V/1P/50HZ Optional
Dimension(L*W*H) Customized size. Any size is available.
Certificate:ISO9001, CE, UL
Quality Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas.

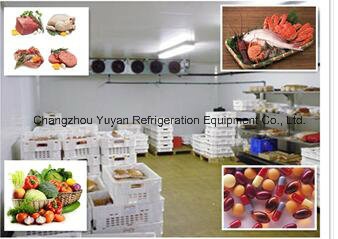

Purpose of cold room: Fruit, Vegetable,flower,fish, meat, chicken, medicine,chemical ETC
Refrigerant: R22/R404A
Cold room Body: Cold room sandwich panel
Thermal insulation material: Polyurethane(PU) Without CFC
Panel Density: 38-42 Kg/m 3
Fire retardant:B1,B2 degree
Panel thickness: 75mm,100mm,120mm,150mm,180mm,200mm
Panel's width: Standard width is 960mm, other width is available.
Panel's skin material: Stainless steel, color steel and embossed aluminum plates
Panel's skin thickness: 0.3mm-0.8mm
Cold storage room door: Sliding door, Hinge door, Flush door, Manual Double door, Swing
door. The doors have a carefully designed gasket, adjustable hinges and a lockable handle with an internal safety release.
Cold Room Panel Feature :
--The sandwich insulation panel is usually adopting groove and tongue plug-in style (concave&protruding) with cam lock system.
--It has the advantages of being easy to install, time-efficient, material-efficient etc. It is especially applicable to suspended ceiling and partition systems.
--So it saves the construction time and period and cost .It can be pre-manufactured in factory and assembled on site, it save the cost of labor considerably.
Refrigeration Unit:
--High quality hermetic /semi -hermetic compressor, energy-efficient and low noise
--Compressor brand :Copeland, Bitzer, Danfoss ETC
--Efficient air-cooled condenser / water chilling unit, green refrigerant, low noise motor.
--Inner evaporator is equipped with DL ceiling-style/ copper-pipe-style air cooler.
--Defrosting automatically
--Can be two refrigeration units, include a back-up unit.
--Can work under high temperature condition.
Control System:
Can be microprocessor Controller, exact temperature sensor.
Temperature can be set freely during its range.
Alarm System:
Two independent alarm system.
Compressor fault alarm, compressor high/low voltage alarm, exhaust system high/low temperature alarm, liquid return system alarm, sen-sor fault alarm, etc.
The computer connected will display all these working information.
History temperature and alarm data can be checked and printed .
About us
Established in 1995, Changzhou yuyan Refrigeration Equipment Co.,ltd was founded in Changhzou city, Jiangsu province, close to Shanghai.
The company is a large-scaled enterprise integrated with design, development, production and manufacturing, promotion and sale, installation and construction.
The main products of the company include: Polyurethane(PU) insulation board and polyurethane (PU) cold storage door. The company ranks among the top in the industry regarding with company scale and product quality, and it is able to produce and process various cold storage panels ,such as color steel plate ,embossed aluminum plate,stainless steel plate and salinized steel plate and so on to satisfy multiple demands both home and aboard.
Our service1. OEM Accepted: We can produce as the client's demand.
2. Good Quality: We have strict quality control system.Good reputation from home and abroad.
3. Fast & best service Delivery: Three production lines, 1,500,000 Square Meters per Year.
4. Overseas installation service: We have experienced teams that can install cold rooms overseas.
5. After sale service: the techinical team will be willing to help you with any problems when using our products.
