| Prod Model: |
W8LC |
| Components: |
1X12" + 2X6.5" + 3X1" |
| Finish Color: |
Black |
| Crossover: |
Passive |
Product Description

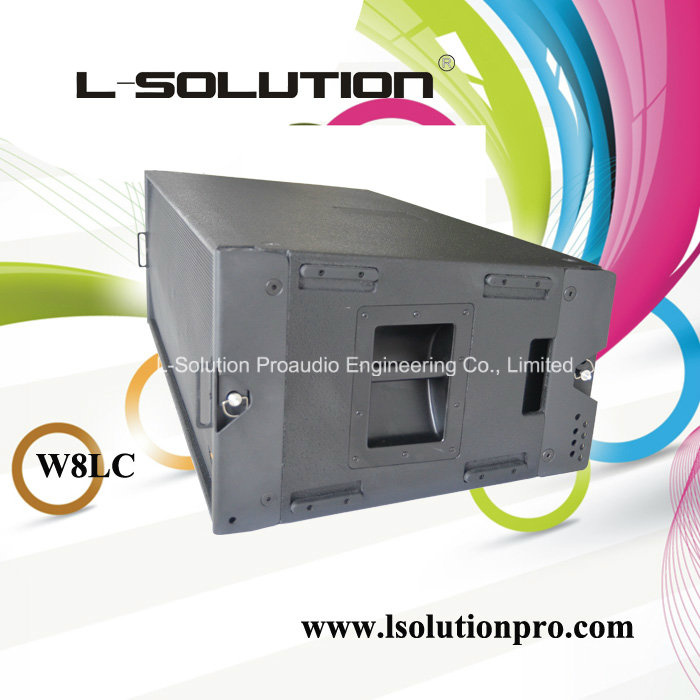

1x12" outdoor powerfull line array.
Long through line array system
Can be make in OEM and our OWN brand.Also the front grill can make according your design too.You can choose NEO or Ferrite driver according your budget .
All line array test 6 hours before packed.
The detail spec as follows:
Frequency Response:68Hz-20KHz
Vertical Cover Angle :120o x 7.5o nominal (horizontal x vertical)
Max SPL a 1 m:138dB
System Sensitivity (1w @ 1m):111dB
Power Rating(Continuous / Peak):900W/2500W
Recommend Amps:1500-1800W into 8ohms
LF Driver:1x 12", 75mm voice coil, Neodymium AES400W
MF Driver:2x6.5 ferrite 38mm voice coil AES120W
HF Driver:3x 1.73" (44mm voice coil ) neodymium driver.AES60W
Nominal Impedance:8ohm
Enclosure:18mm A class plywood and Environment protect finishing.
Good quality rigging hardware and 1.5mm front black grill .
Input Connectors:2XNL4 NEUTRIK
Shipping Dimensions (H x W x D):Carton packing 1pc/carton 1082x642x742mm
N.W/G.W:56 /59KG
