| Prod Model: |
TW10 |
| Components: |
1X10" + 2X1" |
| Finish Color: |
Black |
| Crossover: |
Passive |
Product Description

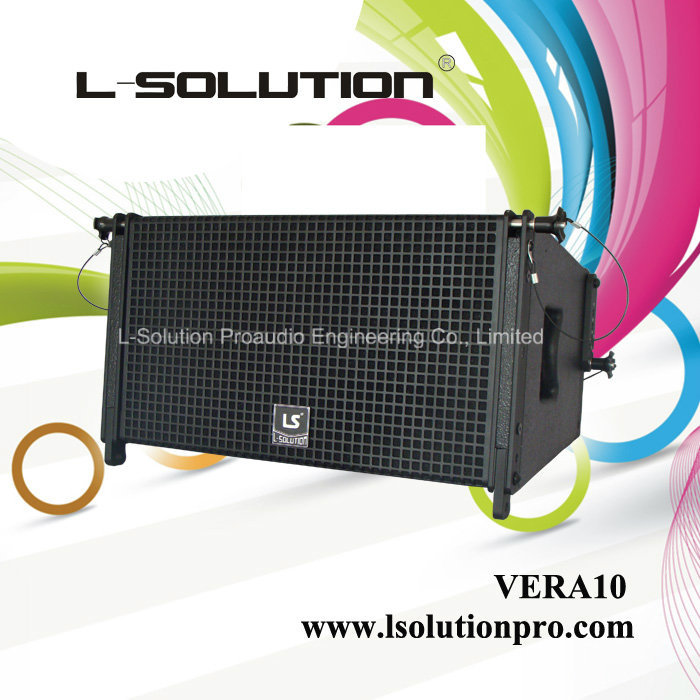

1x10" outdoor & indoor powerfull line array.
Good for indoor install, easy rigging system, smart design, good for live sound.
Can be make in OEM and our OWN brand.Also the front grill can make according your design too.You can choose NEO or Ferrite driver according your budget .
All line array test 6 hours before packed.
The detail spec as follows:
Model: TW10 Passive line array
Frequency Response: 65Hz-15KHz
Vertical Cover Angle : 12o x 10o nominal (horizontal x vertical)
Max SPL a 1 m: 132dB
System Sensitivity (1w @ 1m): 105dB
Power Rating(Continuous / Peak):400W/1200W
Recommend Amps: 500-600W into 8ohms
LF Driver: 1X 10"; 65mm voice coil, neo AES300W
HF Driver: 2x1" (44mm voice coil ) neodymium driver. AES50W
Nominal Impedance: ohm
Enclosure: 18mm A class plywood and Environment protect finishing(black and white)
Good quality rigging hardware and front black grill
Input Connectors: 2XNL4
Shipping Dimensions (H x W x D): 360x480x650mm (2pcs/carton)
N.W/G.W: 30 /35KG
