| Prod Model: |
CS0783R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400CD/M2 |
| Resolution: |
800 (H) ×3(RGB)×480 (V) |
| Screen Ratio: |
16:9 |
| Net Weight: |
390g |
| View Angle: |
U:50/D:70 L/R:70 |
| Power Supply: |
DC 12V/DC 24V |
| Power Consumption: |
5 W |
| Color System: |
PAL/NTSC |
| Interface: |
RCA |
| Definition: |
420TVL |
| Chip: |
CCD |
Product Description
Specifications

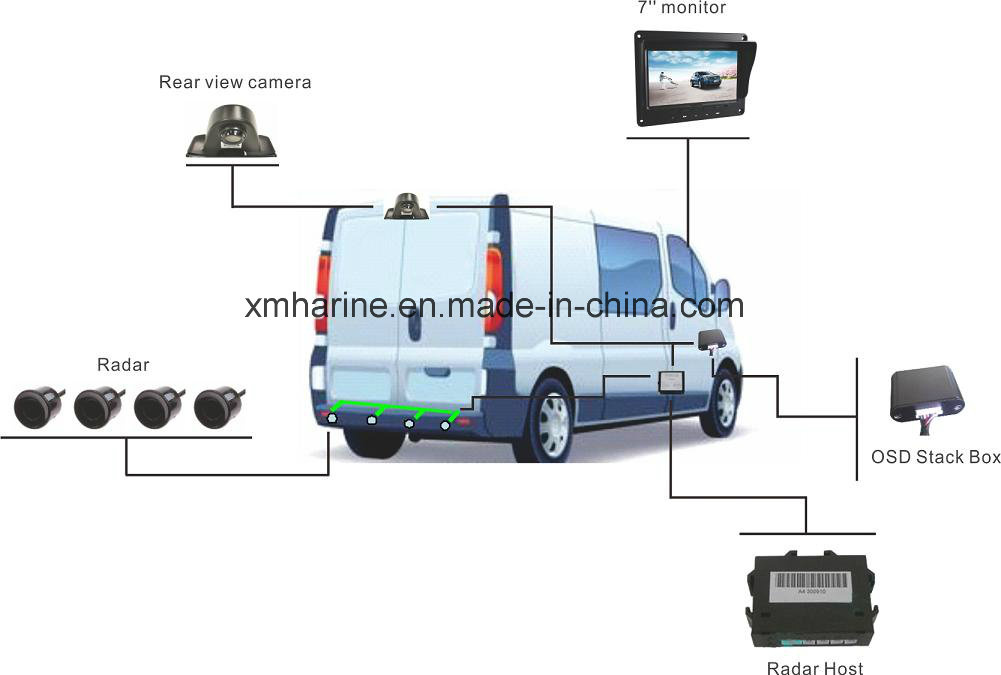

Camera 7 Inch LCD Rear View Security System Monitor
Specifications: .
Screen size: 7 inch Digital panel (16: 9)
with sunshine cover,more clearly to see
Technical information:
| Screen size | 7 inch |
| Screen | TFT LCD screen |
| Screen Ratio | 16:9 |
| Resolution | 800 (H) ×3(RGB)×480 (V) |
| Contrast | 300:1 |
| Brightness | 400cd/m 2 |
| View Angle | U:50/D:70 L/R:70 |
| Color System | PAL/NTSC |
| Power Supply | DC 12V/DC 24V |
| Net Weight | 390g |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~85 |
| Power Consumption | 5 W |
Rader
Rate Volage:DC12V(9V-16V)
Working Current Range(12V):≤400mA
Sensitivity Test :PVC Sensitivity≥0.7m
Distance Tolerance:+-0.05m
Ultrasonic frequency:40KHZ
Sound pressure:80-100D
Opreating Temperature:-30~70°C
storage Temperature:-40~75°C
detection range:farthest to 3m
Our company information :
Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .
With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.
Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.
We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark approved.
