| Prod Model: |
CS076BR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400CD/M2 |
| Resolution: |
800 (H) ×3(RGB)×480 (V) |
| Screen Ratio: |
16:9 |
| Net Weight: |
390g |
| Interface: |
RCA |
| Definition: |
420TVL |
| Chip: |
CCD |
Product Description
Specifications

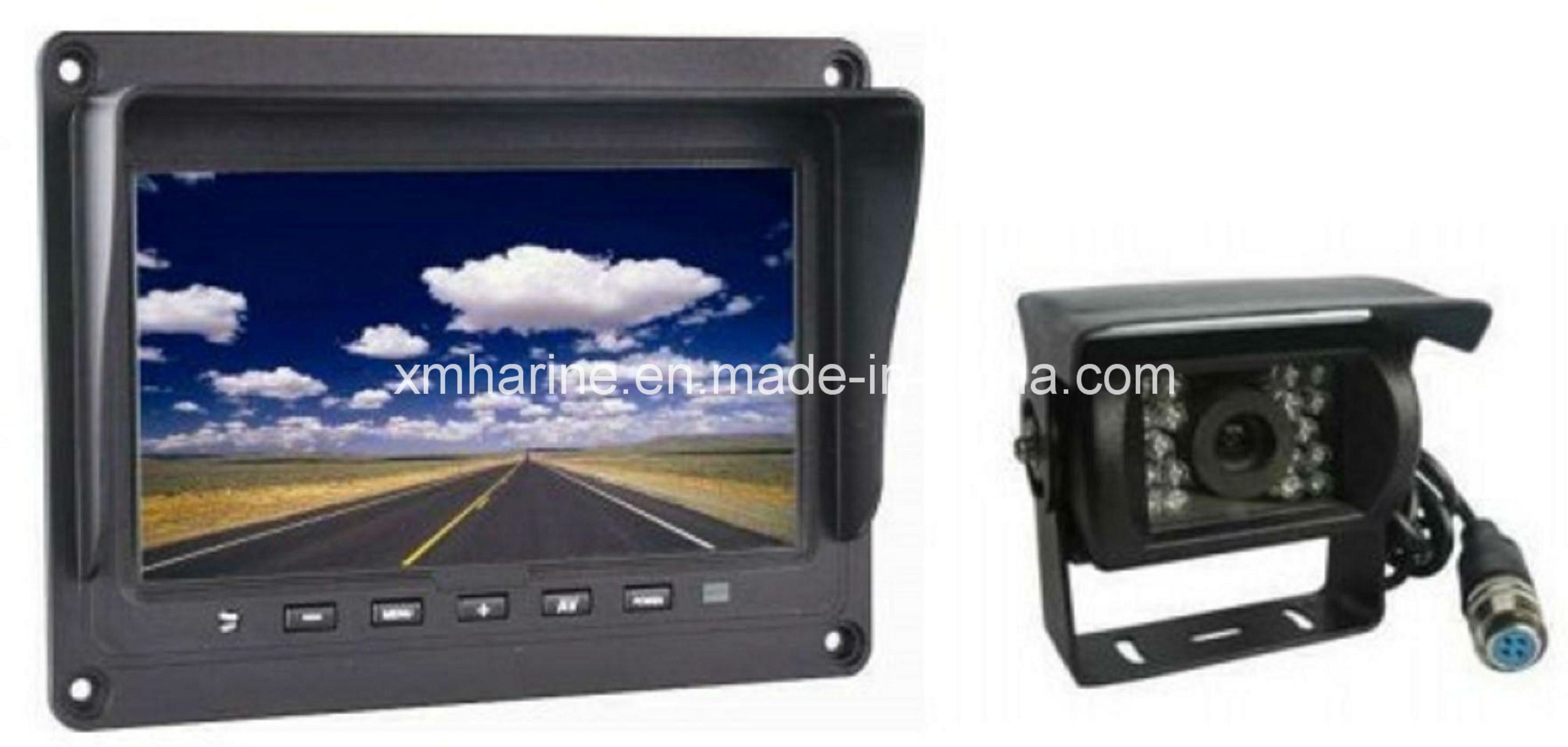

Camera 7 Inch LCD Rear ViewSecurity System Monitor Specifications: . Screen size: 7 inch Digital panel (16: 9)
1.Two way video input,can be switched by key-press(can extend to four way video)
2. with sunshine cover,more clearly to see
Technical information:
| Screen size | 7 inch |
| Screen | TFT LCD screen |
| Screen Ratio | 16:9 |
| Resolution | 800 (H) ×3(RGB)×480 (V) |
| Contrast | 300:1 |
| Brightness | 400cd/m 2 |
| View Angle | U:50/D:70 L/R:70 |
| Color System | PAL/NTSC |
| Power Supply | DC 12V/DC 24V |
| Net Weight | 390g |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~85 |
| Power Consumption | 5 W |
Feature:
1.3-CH video input,can be switched by key-press
2.Automatically switch to the rear-view camera when reversing
3.Brightness, contrast and chroma can be adjusted by key-press
4.Wide range of supply voltage, DC24V±20%
5.Vehicle disturb shielding line and RS765-4 plug for signal transmit
6.Radar distance detect and alarm module for options
Rader
Rate Volage:DC12V(9V-16V)
Working Current Range(12V):≤400mA
Sensitivity Test :PVC Sensitivity≥0.7m
Distance Tolerance:+-0.05m
Ultrasonic frequency:40KHZ
Sound pressure:80-100D
Opreating Temperature:-30~70°C
storage Temperature:-40~75°C
Our company information :
Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .
With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.
Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.
We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark approved.
