Prod Model: |
ZJC-R Lubrication Oil Purifier |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Lubrication Oil Purifier |
Color: |
Grey or as Customer Request |
Warranty: |
One Year |
After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Electric Wiring: |
IEC Standard |
Voltage: |
as Customers Require |
Folw Rate: |
as Customers Require |
Product Description
Effectively remove water and particles. To solve emulsification and remove water by vacuum distillation, remove particles by multi-stage of filters.
(Suitable for lubricating oil with Kinetic viscosity < 320mm²/s)

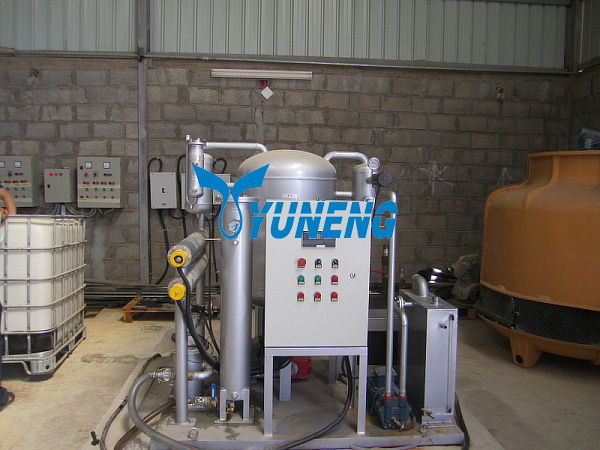

Vacuum Lubrication Oil Purifier Introduction
Machinery oil, hydraulic oil, compressor oil, refrigerator oil and other industrial oil will be polluted by water, emulsification and particles from transportation and lubricating system running.
Features of the oils: high viscosity, high water content, high requirements on cleanness.
Vacuum Lube Oil Purifier can effectively remove water and particles. To solve emulsification and remove water by vacuum distillation, remove particles by multi-stage of filters.
The special design and mature technology can promise its after-treatment oil index:
Water content: ≤50ppm
Filtration accuracy: 3 micron
Particles: no (by visual test)
Vacuum Lubrication Oil Purifier Parameters:
Item | Parameter | Unit | ZJC0.6KY-R | ZJC1.2KY-R | ZJC1.8KY-R | ZJC3KY-R | ZJC6KY-R | ZJC9KY-R | ZJC12KY-R | ZJC18KY-R |
Technical Parameter | Flow Rate | L/min | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Working Vacuity | Mpa | -0.07 ~ -0.101 |
Working Pressure | Mpa | ≤0.6 |
Temperature Range | oC | 45-65 |
Power Supply | | 50Hz 380V 3-Phase 4-Wire (or as requested) |
Total Power | KW | 6+1.5 | 9+1.5 | 12+1.5 | 30+3 | 2X30+4.4 | 3X30+6 | 4X30+7 | 5X30+9 |
Inlet/Outlet Diameter | mm | 20/20 | 20/20 | 25/20 | 32/25 | 38/32 | 64/48 | 76/64 | 89/76 |
Size | Length | mm | 1300 | 1300 | 1300 | 1900 | 1900 | 2100 | 2200 | 2300 |
Width | mm | 1000 | 1050 | 1050 | 1400 | 1400 | 1500 | 1600 | 1700 |
Height | mm | 1250 | 1450 | 1450 | 1950 | 2100 | 2150 | 2250 | 2300 |
Weight | Kg | 350 | 420 | 510 | 950 | 1200 | 1600 | 2200 | 3500 |
Oil Treatment Index | Water Content | ppm | ≤100 |
Filtering Accuracy | µm | ≤5 |
Cleanness | NAS | Grade 5~7 |
Yuneng products list:
1. Insulation Oil filtration machine:
ZJA Ultra-high Transformer / Insulation Oil filtration machine (1000KV, ±800KV, 750KV, ±660KV project) (2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil filtration machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil filtration machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors).
JZ OLTC (on-load tap changer) online Oil filtration machine
Quantitative oil injection machine (customized product)
2. Turbine Oil filtration machine:
JT coalescing dehydration oil filtration machine (dehydration by special filters)
DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil filtration machine:
ZJC-R Vacuum Lubrication Oil Purifier (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil filtration machine for OCS. (oil with high viscosity 22-320cst at 40ºC)
4. Other kinds of oil filtration machine:
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil filtration machine (by chemicals)
YNZSY-LTY used tire oil filtration machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Gas chromatograph
Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14, 500 square meters, specializes in the R&D, manufacture, and marketing of oil, water and gas filtering and purification products and complete sets of related equipment. We gather a group of specialized talents with years of working experience and technological development. Now we have 228 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1, 000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture.
We attach great importance to product quality, specialization, dedication and constant improvement. Aiming to become a world-advanced manufacturer of oil treatment equipment, we have always upheld the development philosophy centering on "technological innovation and service improvement". We have passed ISO quality management certification. Besides, ten of our new technologies have received national patents of invention and five of our oil purifier series have been granted the title of "new and high-tech products of Chongqing". In 2004, our company was rated as a new and high-tech enterprise of Chongqing. In addition, with the support and help of the Chongqing Commission of Science and Technology, our company implemented EPR information management system in 2006. All these lay a solid foundation for our company to provide customers with high-quality reliable products and fast and comprehensive service to avoid homogenous competition on quality improvement.
Over the past 20 years, we have always stuck to the operational concept of "being faithful and dedicated, practical in development, and cooperative for common progress". By working in a down-to-earth manner and orientating ourselves to customer needs, we have received the recognition of a lot of customers. So far we have sold over 15, 000 sets of Yuneng-brand oil purifiers, which are widely used in electric, metallurgical, petrochemical, mechanical, military industry, railway, light industry, and other industries. Our products enjoy a fairly big market share and have become a famous brand in medium- and high-grade oil treatment equipment.
According to the long-term development objective of the Group, we set up a new company called Chongqing Xingao Electromechanical (Group) Co., Ltd. The new Group will continue to seek innovation and dedicate itself to the research and manufacture of high-end oil treatment technologies. It will also seek diversified development to cover the manufacture of water and gas purification equipment and filtering consumables as well as the assembly of electro-mechanical and environmental protection equipment, so as to realize the goal of making strong main business while making the company bigger as a whole. We are ready to do our part to develop national industries, save energy and protect the environment.
We are looking forward to cooperating with you.
