| Prod Model: |
VIP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Rich Auspicious |
| Working Temperature: |
-90~70 |
| Core Material: |
Inorganic Fiber |
| Thickness: |
5-25mm |
| Size: |
Customized |
| Thermal Conductivity: |
0.002~0.0035W/(M.K) |
| Color: |
Silver |
| Refractoriness: |
-90-70 |
| Diameter: |
as Your Required |
| Usage: |
Insulation Material |
| Material: |
Inorganic Fiber, Mineral Fiber |
Product Description
As the inorganic heat preservation material, fire rating of A-class non combustible
the Vacuum Insulation Panel Is a kind of vacuum insulation material .
| Humidity stability | 0% to 60% |
| Standard dimension (L x W) | 600mm ×400mm |
| Maximum Size | 1800mm(width), Umlimited length |
| Length | ± 2mm |
| Width | ± 2mm |
| Thickness | 0/ +1.5mm |
| Thermal conductivity | 0.002~0.0035W/(m.k) |
| Combustion performance | A1 |
| Overall Density | 180 to 240 kg/m³ |
| Service life | extrapolated, depending on application up to 50 years |

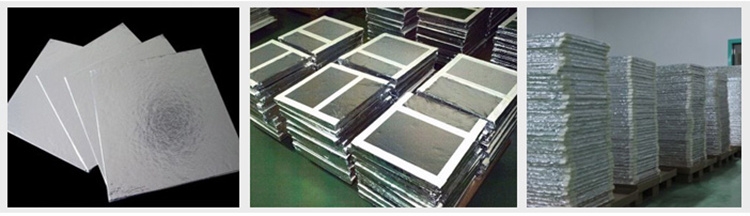

The new material of Vacuum Insulation Panel: The VIP is short for vacuum insulation panel. Because of its super heat-proof quality, long useing life and excellent combination property, it effectively avoid air convection caused by heat transfer, therefore coefficient of thermal conductivity can be greatly reduced, less than 0.0025 w/m.k, and does not contain any OD materials, it has the characteristics of environmental protection and energy efficient, the world's most advanced efficient heat preservation material.Vacuum Insulation Panel product's structure is made up of three main parts
- the core of the insulation
- Gas adsorption materials
- High barrier properties of composite films
Product Process
ApplicationVacuum Insulation Panel has been widely used in fridge, freezer, refrigerator, refrigerated containers, ice thermal insulation systems of chamfer of adiabatic heat preservation material,and now start in the construction field.
- Building application (External wall, roofs, floors, etc.)
- Thermal packaging (Medicine transport boxes, etc.)
- Appliance (Water boiler, etc.) ·Electrical appliances (refrigerator)
- Automotive (Train, ship, air plains, etc.)
Packaging & Delivery
| Packaging Details: | Vacuum Insulation Panel:wooden pallet and Paper carton with foam and air bubble film |
| Delivery Detail: | vacuum insulation panel :15-30 days after confirmed the PO |
Company Information
Located in Jiangsu Yangzijiang International Metallurgical Industry Park,a shining pearl along the Yangtze River,Jiangsu Rich Auspicious New Material Technology Co., Ltd. is a hi-tech oriented corporation co-established with the Industry Park's Investment and Development Co., Ltd The corporationengages itself in scientific researches and development as well as production and sales.It receives 380million RMB in terms of investment,with the registered capital 90 million RMB,and the planned construction area 60,000aquare meters.During thephase-1 project, plants and ancillaries cover 30,000square meters.The annual production capacity can present 60,000tons of ultrafine inorganic fibers,yarns and fabrics,besides 60,000 tons of fireproof insulation boards or menbranes. Rich Auspicious' inorganic fiber is a key product listed among the inorganic fire-proof/insulation materialsidentified in the National Development and Reform Commission's Guiding Catalogue of Key Products and Services for Strategic Emerging IndustriesFAQ1,why choose us
We are Vacuum Insulation Panel manufacture and we are one of the best suppliers in China
We ensure the deliver time, high quality, and the best after-sale service for you.
2,can you provide samples?
We could supply the Vacuum Insulation Panel samples by charge
Welcome come to our factory for inspecting and discussion the technical details.
