Jiangsu Rich Auspicious New Material Technology Co., Ltd. >> Refrigerator Heat Resistant Panel vacuum insulated panel

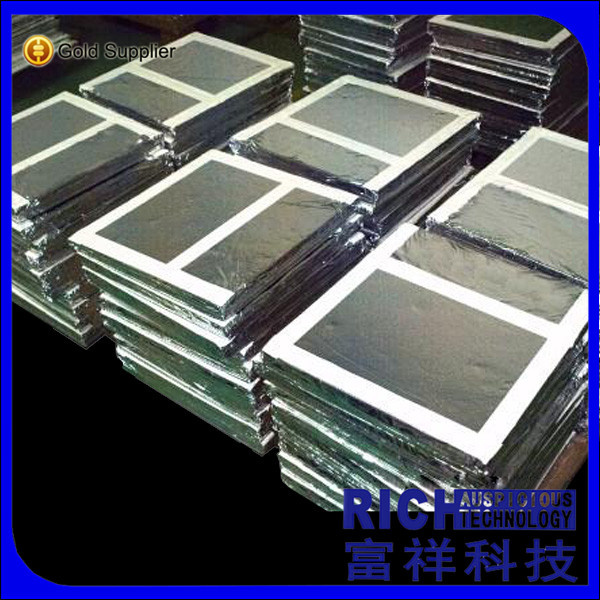

Refrigerator Heat Resistant Panel vacuum insulated panel

Refrigerator Heat Resistant Panel vacuum insulated panel
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 500/Piece
Pay Type: T/T
Prod Model: VIP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Rich Auspicious
Working Temperature: -90~70
Core Material: Inorganic Fiber
Thickness: 5-25mm
Size: Customized
Thermal Conductivity: 0.002~0.0035W/(M.K)
Color: Silver
Refractoriness: -90-70
Diameter: as Your Required
Usage: Insulation Material
Material: Inorganic Fiber, Mineral Fiber

Product Description

As the inorganic heat preservation material, fire rating of A-class non combustible

the Vacuum Insulation Panel Is a kind of vacuum insulation material .


Humidity stability0% to 60%
Standard dimension (L x W) 600mm ×400mm
Maximum Size1800mm(width),   Umlimited length
Length ± 2mm
Width± 2mm
Thickness0/ +1.5mm
Thermal conductivity0.002~0.0035W/(m.k)
Combustion performanceA1
Overall Density180 to 240 kg/m³
Service lifeextrapolated, depending on application up to 50 years
Product Description
The new material of Vacuum Insulation Panel: The VIP is short for vacuum insulation panel. Because of its super heat-proof quality, long useing life and excellent combination property,  it effectively avoid air convection caused by heat transfer, therefore coefficient of thermal conductivity can be greatly reduced, less than 0.0025 w/m.k, and does not contain any OD materials, it has the characteristics of environmental protection and energy efficient, the world's most advanced efficient heat preservation material.

Vacuum Insulation Panel  product's structure is made up of three main parts

  • the core of the insulation
  • Gas adsorption materials
  • High barrier properties of composite films
Product Process


Application

Vacuum Insulation Panel has been widely used in fridge, freezer, refrigerator, refrigerated containers, ice thermal insulation systems of chamfer of adiabatic heat preservation material,and now start in the construction field.

  •  Building application (External wall, roofs, floors, etc.)
  •  Thermal packaging (Medicine transport boxes, etc.)
  •  Appliance (Water boiler, etc.) ·Electrical appliances (refrigerator)
  •  Automotive (Train, ship, air plains, etc.)

Packaging & Delivery

Packaging Details:Vacuum Insulation Panel:wooden pallet and Paper carton with foam and air bubble film
Delivery Detail:vacuum insulation panel :15-30 days after confirmed the PO
Company Information

Located in Jiangsu Yangzijiang International Metallurgical Industry Park,a shining pearl along the Yangtze River,Jiangsu Rich Auspicious New Material Technology Co., Ltd. is a hi-tech oriented corporation co-established with the Industry Park's Investment and Development Co., Ltd The corporationengages itself in scientific researches and development as well as production and sales.It receives 380million RMB in terms of investment,with the registered capital 90 million RMB,and the planned construction area 60,000aquare meters.During thephase-1 project, plants and ancillaries cover 30,000square meters.The annual production capacity can present 60,000tons of ultrafine inorganic fibers,yarns and fabrics,besides 60,000 tons of fireproof insulation boards or menbranes.
 Rich Auspicious' inorganic fiber is a key product listed among the inorganic fire-proof/insulation materialsidentified in the National Development and Reform Commission's Guiding Catalogue of Key Products and Services for Strategic Emerging Industries

FAQ

1,why choose us

We are  Vacuum Insulation Panel  manufacture and we are one of the best suppliers  in China

We ensure the deliver time, high quality, and the best after-sale service for you.

2,can you provide samples?

We could supply the Vacuum Insulation Panel samples by charge


Welcome come to our factory for inspecting and discussion the technical details.

Contact information

ADD:Jiangsu Yangzijiang International Metallurgical Industry Park(the east of JinFeng Industry Park)ZhangJiaGang,China

Telephone:+86 15950956907

Website:www.chinarichstar.com









Located in Jiangsu Yangzijiang International Metallurgical Industry Park, a shining pearl along the Yangtze River, Jiangsu Rich Auspicious New Material Technology Co., Ltd. is a hi-tech oriented corporation co-established with the Industry Park's Investment and Development Co., Ltd. The corporation engages itself in scientific researches and development as well as production and sales. It receives 380million RMB in terms of investment, with the registered capital 90 million RMB, and the planned construction area 60, 000aquare meters. During the phase-1 project, plants and ancillaries cover 30, 000square meters. The annual production capacity can present 60, 000 tons of ultrafine inorganic fibers, yarns and fabrics, besides 60, 000 tons of fireproof insulation boards or menbranes.
