USB3.0 Video Conference Camera with Kinds of Protocols for Audio Conference System
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
KT-HD20A3U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
Sony 1/2.8''progressive CMOS |
| Effective Pixels: |
2.07 Megapixels |
| Resolution HD: |
1080P/30, 1080P/25, 720p/60, 720p/50 |
| Signal System: |
PAL/NTSC |
| Lens: |
10X Optical Zoom |
| Horizontal View Angle: |
50.6°(W)~5.5°(T) |
| Pan: |
355°(Max. Speed:80°/S) |
| Tilt: |
-30° to +90° (Max. Speed: 60°/S) |
| Preset Position: |
200 Preset Positions by PC or Keyboard |
| Video Output HD: |
USB2.0 |
| Type: |
Video Conferencing System |
| Video: |
Video |
| Composition: |
Lcd Display |
| Communication: |
Wired |
| Pointing Feature: |
Omni-Directional |
| Color: |
Silver |
Product Description
Specifications:
Item No. |
KT-HD20A3U |
Image Sensor |
SONY 1/2.8''Progressive CMOS |
Effective Pixels |
3.5 Megapixels |
Resolution HD |
1080p60/50, 1080i60/50,1080p30/25, 720p60/50 |
Signal System |
PAL/NTSC |
Lens |
20X optical zoom, f=4.7mm(wide angle end)~94.0 mm(far end) |
Horizontal View Angle |
58.7°(W)~3.2°(T) |
Focus System |
Auto/Manual |
Minimum Illumination |
0.5 Lux |
Exposure Control |
Auto/Manual |
Shutter Speed |
1/25~1/10,000s |
Gain |
Auto/Manual |
White Balance |
Auto/ Indoor/Outdoor/Manual |
Image Effect |
Full color/black and white/Electronic flip |
S/N Ratio |
≥50db |
Pan |
355°(max. speed:80°/s) |
Tilt |
-30° to +90° (max. speed: 60°/s) |
Preset Position |
9 preset positions by IR remote controller, 200 preset positions by PC or keyboard controller |

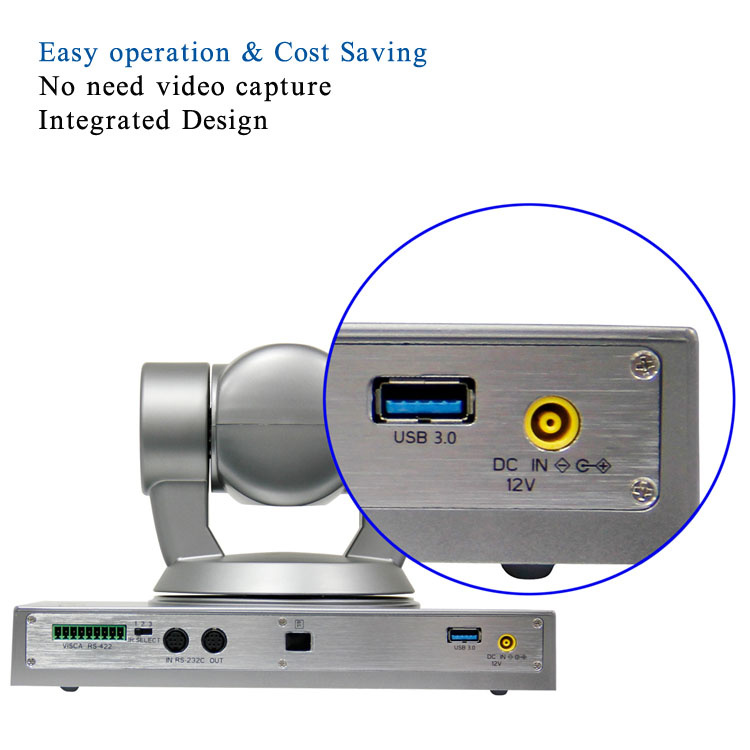

Video Output HD |
USB3.0 |
Video Output SD |
No |
Control Protocol |
SONY VISCA, PELCO P/D |
Control Mode |
RS-232C, RS-422/485 |
Power |
12V DC(10.8~13.0V DC) |
Power Consumption |
Max. 30W(DC 12V) |
Operating Temperature |
0~40ºC |
Storage Temperature |
-20-60ºC |
Dimensions |
(L)262×(W)165×(H)157mm |
Weight |
1710g |
Color |
Silver white |
Accessories |
DC 12V power adapter, IR Remote, Operation manual, USB3.0 cable, Ceiling bracket |
