Shenzhen Kato Vision Co., Limited >> 550 Tvl RS232 RS422 Control 360 Pan 18X Pan Tilt SD 360 Video Camera

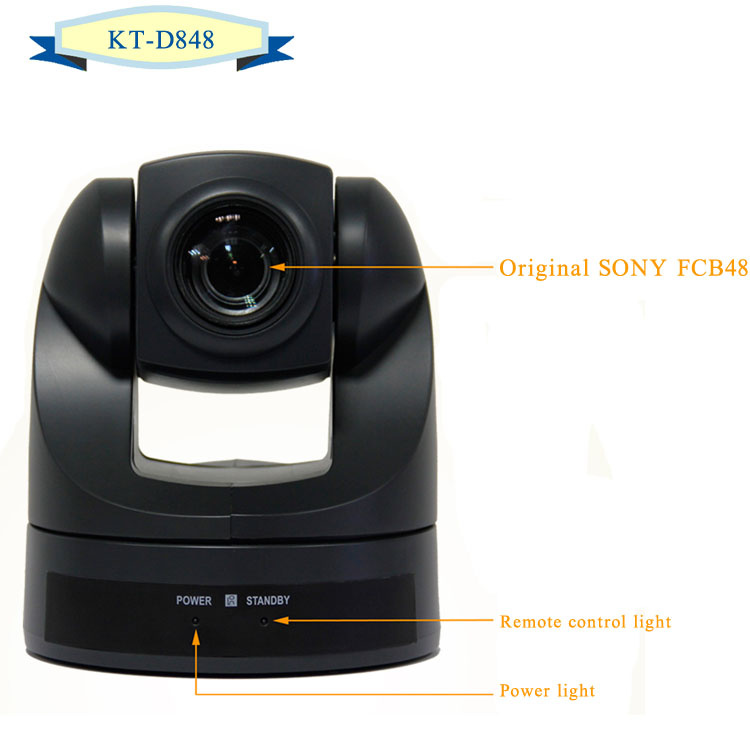

550 Tvl RS232 RS422 Control 360 Pan 18X Pan Tilt SD 360 Video Camera

550 Tvl RS232 RS422 Control 360 Pan 18X Pan Tilt SD 360 Video Camera
Price: US $ 400/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: KT-D848
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor: Sony 1/2.8''progressive CMOS
Effective Pixels: 2.07 Megapixels
Resolution HD: 1080P/30, 1080P/25, 720p/60, 720p/50
Signal System: PAL/NTSC
Lens: 10X Optical Zoom
Horizontal View Angle: 50.6°(W)~5.5°(T)
Pan: 355°(Max. Speed:80°/S)
Tilt: -30° to +90° (Max. Speed: 60°/S)
Preset Position: 200 Preset Positions by PC or Keyboard
Video Output HD: USB2.0
Type: Video Conferencing System
Video: Video
Composition: Lcd Display
Communication: Wired
Pointing Feature: Omni-Directional
Color: Silver

Product Description

Specifications:

Item No.

KT-D848

Image Sensor

SONY 1/4 Exview HAD CCD

Effective Pixel

752 (H) * 582 (V)

Signal System

NTSC/PAL

Horizontal Resolution

550 TVL

Synchronization

Internal & External

Lens

18* Optical, F=4.1mm(tele)~73.8mm(wide), F1.4~F3.0

Angle of View (H)

48°(wide-angle)~2.8°(far-end)

Min. object distance

290mm(wide-angle)~800mm(tel-end)

Minimum Illumination

0.4lux (F1.4, 50IRE)

Auto exposure

Auto/Manual/AE priority/Exposure compensation/Backlight compensation

Shutter Speed

1/3~1/10000S,22 shelves

Gain

Auto/Manual (-3 ~ +28dB, 16 steps)

White Balance

Auto/Indoor/Outdoor/One push WB/Manual WB

S/N Ratio

more than 50dB

Pan/Tilt

Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s)

Preset Position

9 by remote commander, 256 by keyboard controller

Picture effect

E-Flip, Invert, Mirror

Analog Output

VIDEO and S-VIDEO VBS 1.0VP-P

Camera Control

RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA)

Baud rate

9600bps, 38400bps

Power

10.8V~13.2V

Operating Temperature

0ºC~50ºC

Storage Temperature

-20ºC~+60ºC

Consumption

12W

Dimensions

(L)153*(W)134*(H)153mm

Weight

1200g

Color

black

KATO VISION CO., LIMITED
Contact: Evala Shen
Ph: 13530635461



Address:4/F, Block B, Dexinchang Industrial Park, Qingxiang Rd., Longhua district, Shenzhen 518109, China
Our company established in 2004, which specialize in video conference research and development, OEM/ODM service, commit to supply Hi-tech, High-quality and Humanized products. We regard "find and meet customers' different requirements" as our duty, continuously innovating, refining and changing. We try to stimulate our customers' infinite reverie, and meet their great eagerness.

Relying on abundant strength and good reputations, our products are widely used in such fields as Finance, Postal service, Telecommunication, Electricity, civil use, Justice, transportation, Residence, Medical, Colleges, Water Conservancy, Military, Factories, Warehouses, etc. Our products include: SD, HD PTZ Video Conference Cameras, HD Monitor Cameras, Economic High Speed Dome Cameras, IR High Speed Dome Cameras, Intelligent High Speed Dome Cameras, Intelligent IP High Speed Dome Cameras, etc.

Our company has established a sound sales & service network. Offices have been set up in Beijing, Guangzhou, Xi'an, etc. More than 10 agencies and many partners spread throughout China. We are sincere to cooperate with all friends to promote the progress of the Digitalized, Networked and Intelligentized system to create a digital security future.
