| Prod Model: |
JM-50168 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |
| CATV System: |
NTSC; PAL B/G, D/K |
| Output Frequency: |
47 - 871 MHz |
| Power Plug: |
Us, EU Standard etc |
| Headend Intergrated: |
16 Way Combiner |
| Headend Built-in: |
Amplifier, Saw Filter |
| Jm-50168 Color: |
Black / Silver / OEM |

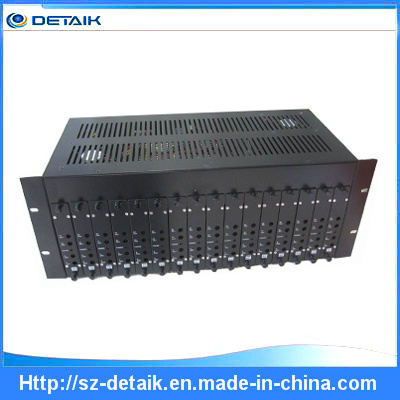

Product Description
Use the high SMD technology, machine is stability.
A wide range of linear power supply; High reliability.
Compact size, easy installation; In standard 19-inch rack.
Micro-computer control, image sound two-phase locking.
High-output, continuously adjustable sound frequency off.
IF SAW filters to do with, excellent VSB, 16 Way Combiner.
Upgrade Design, Smart Electronics for Telecommunication.
|
Output frequency range |
MHz |
47 - 871 |
|
RF output level |
dBµ V |
110 or up |
|
Parasitic output rejection ratio |
dB |
≥ 60(Maximum output frequency) |
|
RF output return loss |
dB |
≥ 13 |
|
Video transfer system |
% |
87.5(Video input level 1Vp-p) |
|
Video-band flatness |
dB |
± 1.2 |
|
Differential gain |
% |
≤ 3 |
|
Differential Phase |
° |
≤ 3 |
|
Video signal to noise ratio |
dB |
≥ 60 |
|
Color / light time delay difference |
ns |
|Δ τ ≤ 45 |
|
Image/sound power ratio (V / A) |
dB |
10— 20Continuously adjustable |
|
Images, sound freq. spacing |
KHz |
6500± 2(PAL-D/K), 5500± (PAL-B/G), 4500± 2(NTSC) |
|
Accuracy of image carrier freq |
KHz |
≤ 5 |
|
Audio Frequency Modulation |
KHz |
50 |
|
Audio total harmonic distortion |
% |
≤ 1 |
|
Audio signal to noise ratio |
dB |
≥ 60 |
|
Audio pre-emphasis |
µ s |
50 |
|
Power Supply |
V |
AC 90-265V |
|
Ambient temperature |
Deg. |
5— 50 |
|
Relative humidity |
% |
≤ 85 |
|
Atmospheric work pressure |
Kpa |
86— 106 |
|
Overall dimensions |
mm |
550 x 290 x 260 |
|
Gross Weight |
Kg |
11.00 |
