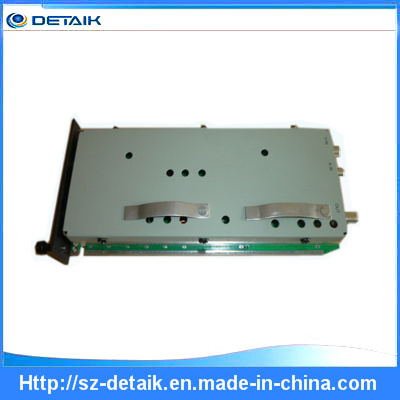

| Prod Model: |
JM-Mini |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |
| CATV System: |
NTSC; PAL B/G, D/K |
| Output Frequency: |
47 - 871 MHz |
| Jm-Mini Function: |
Used for Jm-50161 |
| Intergrated: |
SMD, Mcu Control |
| Headend Built-in: |
Excellent Saw Filter |
| Jm-Mini Color: |
Black / Silver / OEM |
Product Description
SMD, ultra stable operation.
Small size frame to save space.
High output level, out-band restrain.
MCU control, Audio/Video dual phase-lock.
IF SAW filter, excellent Audio and Video Linearity.
Fixed Channel 47-871MHz (NTSC, PAL B/G, D/K).
Switch power supply for broad input power voltage.
|
Excellent Specification |
Technical Parameter |
|
Output Frequency Range |
47~871MHz |
|
RF Output Level |
≥ 104dBμ V |
|
Spurious Harmonics |
≥ 60dB |
|
RF Output Reverberate Loss |
≥ 13dB |
|
Video Modulation Degree |
87.5% |
|
Video Flatness |
± 1.2dB |
|
Differential Gain |
≤ 3%@ 87.5% Modulation index |
|
Differential Phase |
≤ 3º @ 87.5% Modulation index |
|
Video S/N Radio |
≥ 60dB |
|
C/L Delay |
≤ 45ns |
|
Audio Frequency |
5.5MHz± 2KHz(PAL-B/G D/K); 4.5MHz± 2KHz(NTSC) |
|
Carrier Frequency Accuracy |
Δ f≤ 5KHZ |
|
Audio Carrier Modulation Deviation |
50KHz |
|
Audio Harmonic Distortion |
≤ 1% |
|
Audio S/N Range |
≥ 60dB |
|
Audio Pre-emphasis |
50μ s |
|
Power Supply |
AC220V± 10%50Hz± 2Hz |
|
Temperature Range |
5~40 Degree |
|
Relative Humidity |
≤ 85 % |
|
Atmospheric Pressure |
86~106Kpa |
|
Dimensions |
220 x 100 x 50 mm |
|
Gross Weight |
0.5 Kg |
