| Prod Model: |
LLT008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| GPS Module: |
Sirf4 |
| Size: |
65X26X91mm |
| Box Size: |
170X140X70mm |
| Options: |
Memory/Shake Sensor/Buzzer |
| Net Weight: |
520g |
| Function: |
Impact Alarm/Sos Alarm/Geo-Fence Alarm |
| Quad Band: |
850/900/1800/1900MHz |
| Port Specification: |
SIM/Phone/Mic/LED1/LED2 |
| Backup Battery: |
200~850mAh |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Quad Band |
| Brand: |
Lsailt |
Product Description

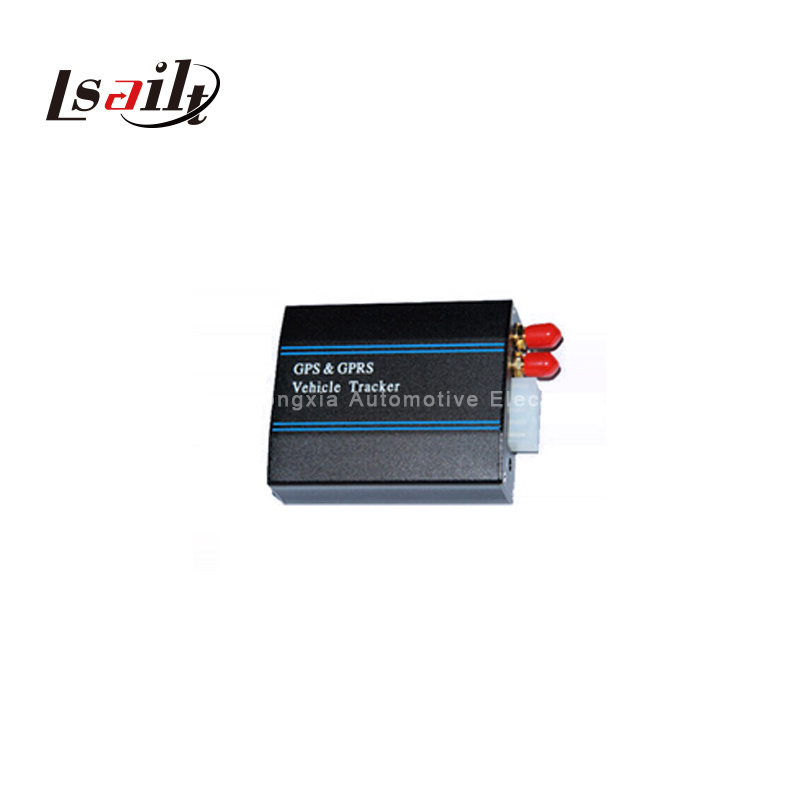

LLT008 APPLY TO: (different kinds of vehicle, Universal Port specification)
Logistics Team Management, Car rental, Car Route Planning, Bus/Tour Buses Monitor, Car/Vehicle/Truck Tracking, Car Anti-Theft, Fleet management, Special-type Security Industry etc
Product Description and Specification
1. Compatible with the original vehicle anti-theft system and the original vehicle anti-theft device;
2. Using GSM / GPRS / SMS communication, support networks and SMS search vehicles;
3. Support SMS, phone and Internet network alarm;
4. Remote C-off oil, electricity, telephone remote monitoring;
5. The design of cross-border, speeding and emergency alarm function;
6. Built-in backup battery, Unauthorised Dismantle Alert;
7. Internet tracking and locating vehicles and check traffic status at real-time
Main features
1. Real-time Positioning & Tracking
2. Over Speed Alert
3. SOS Function & Geo-fence
4. Audio Monitoring
5. Remote controlling oil & circuit
6. Inbuilt Backup Battery, Unauthorized Dismantle Alert
7. Compatible with the original anti-theft alarm
8. GPS & A-GPS (LBS_location based service)
9. Real time uploads location information via time/distance interval
10. Support google earth, 3D map
Hardware Description
LLT006, LLT008, and LLT024 adapt Technical module with stable system
GPS MODULE: SIRF4
GSM MODULE: SIM900
CPU: LLT006/LLT008 adapt IT Chip MSP430F149
LLT024 MSP430F5419
Advantages:
1. Sirf4 GPS Module (20 Channels) with stronger gps receiver.
2. Built-in Back battery
3. 3 General I/O Input Ports, 2 Output Ports
4. ONE Microphone and ear phone Interface
5. Temperature Sensor (Optional)
6. Vibration Sensor (Option)
Principle
GPS TRACKING SYSTEM CONTAINS GPS MODULE and GSM MODULE
* GPS MODULE is responsible for locating (Longitude/Latitude/Data/Time/Speed/Angle)
* GSM owes SMS, CALLING, and INTERNET (GPRS/3 G WCDMA)
HOW TO WORK?
GPS TRACKER SYSTEM which will send Location Information Based GPS MODULE to Server through GPRS! Than Server will save date so that User can search Vehicle real position and trajectory playback!
User can search and monitor a vehicle by GOOGLE earth
| LLT008 Ttacking Device Parameters |
| CPU | TI: MSP430F149 (16MHz) |
| GSM Module | SIM900 Band:850/900/1800/1900MHz |
| GPS Module | SIRF Star III Frequency: L1, 1575,42 MHz |
| Size | 92*65*26mm |
| Voltage | DC: 6.3~40V |
| Humidity | 10% to 90% |
| Current | Standby Current: 16mA |
| working Current: 60~150mA |
| Charging current: Max< 500mA |
| Input (10pin ) | 5 I/O Port |
| 1 port use to check the engine ( ACC check) |
| 1 port use to SOS |
| Three ports use to Extend |
| Output I/O | 1 port (Control car engine) |
| Accessories |
| Microphone | 3.5mm Single track |
| earphone | 3.5mm |
| Battery | Lithium battery : 400mA( working time is about 3.5 hours) |
| Full sets | Device, Connecting cable , GPS antenna , GSM antenna, Engine controller, SOS button, Microphone |
|
|
|
|
| Optional Accessories (USD/PCS) |
| Built-in Memory(8MB) | US$2.00 |
| Built-in Shake Sensor | US$2.00 |
| Built-in Buzzer | US$3.00 |
| Temperature Sensor | US$2.50 |
|
|
| Input (10pin ) Specification |
| 1 | DC(12V) 5A protective tube |
| 2 | Reserve zone |
| 3 | VSS |
| 4 | ACC Ignition wire |
| 5 | Power/Fuel control |
| 6 | VSS |
| 7 | SOS |
| 8 | Expansion interface |
| 9 | Reserve zone |
| 10 | Reserve zone |
