| Prod Model: |
LLT-MZD-VER6.5.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Definition: |
Original Car Screen(800*480) |
| Navigation: |
Android System |
| Map: |
Google Map, Igo |
| AV-in: |
Two |
| CPU: |
1.6GHz |
| Flash: |
16GB |
| RAM: |
1GB |
| WiFi: |
Yes |
| HD Video: |
1080P |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Screen Size: |
7" |
| Brand: |
Lsailt |
Product Description

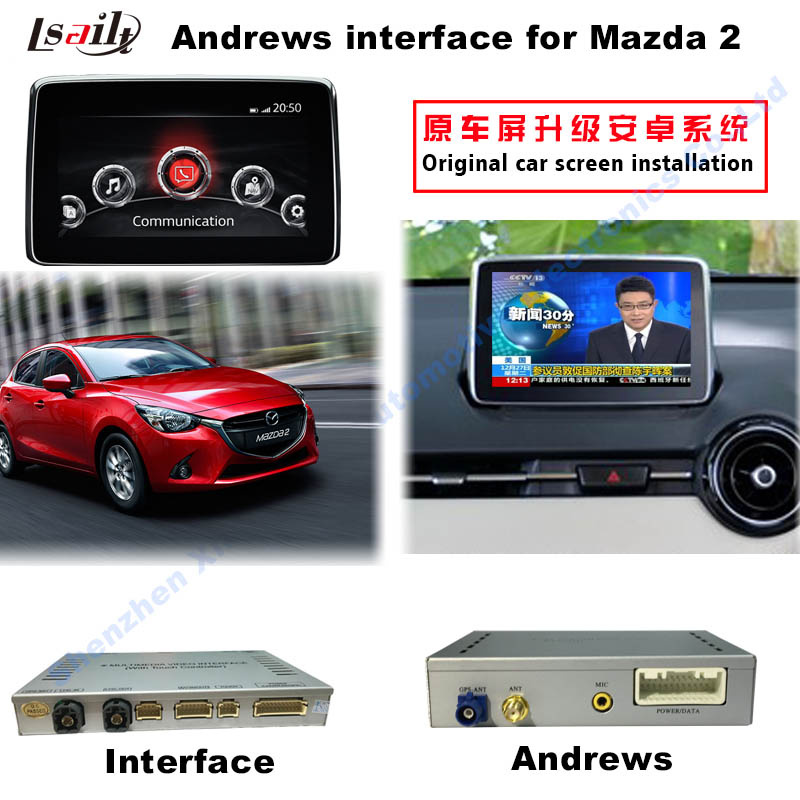

Car Android Navigation Interface Box for Mazda CX-3,CX-5,MX-5,CX-9,Upgrade Voice,internet,HD 1080P,Google map,WIFI ,Facebook
Brand: Lsailt Model: LLT-MZD-VER6.5.1Standard Configuration: Interface (Android Navigation,Trajectory reversing,Front view,video input);
Suitable car model: 2014-2016Mazda 2,3,6,CX-3,CX-5,CX-9,MX-5
Upgrading function:Touch Android Navigation,Trajectory reversing,Front view,DVD,TV,360 Panoramic,Video recorder,TMPS etc.
Universal product information| Origin | Shenzhen | Trademark | Lsailt |
| Item No. | LLT-MZD-VER6.5.1 | Standard | CCC, CE |
| Type | Android and Interface | Use | Automotive |
Trade Terms| Min. Order | 1Set | Unit Price | Negotiation |
| Trade Terms | FOB | Payment Terms | T/T or western Union |
| Supply Ability: | 2,000pcs per month | Delivery Time: | 10 working days after received your payment |
| Packaging Details: | Standard export carton | HTTP | www.lsailt.com |
| SIZE | 155*90*20 (MM)x2 | GR. WT | 1.2KG/SET |
Custom properties| CPU | 1.6GHZ Car gauge dual-core | RAM | 1GB |
| Working voltage | 9-16V | OS | Android4.2/4.4 |
| HVGA | 800X480 | MAP | IGO/PAPAGO/GOOGLE MAP |
Product details
What is the upgrading function of the original car screens?
It follows that the owner can realize navigation, visual trajectory reversing, DVD player, TV news, 360 panoramic, and automobile data recorder through interface box and use LCD (BYOD).Then we integrate these functions into a car which will realize touch handwriting navigation, remote control, mini system operation. After that, the original system is not changed and the system which is installed will not damage and interfere in the original car.
Suitable car model
Suitable for an original car with LCD true color display (BYOD). Due to the different model, the upgrading system is not also the same. Lsailt can perfectly and flexibly realize you car's upgrading function (navigation, BT, visual trajectory reversing HD playback, DVD player, mobile Internet app etc.)
Product Description:
1. Apply to :2014-2016Mazda 2,3,6,CX-3,CX-5,CX-9,MX-5
2. Supports external video input,full touch DVD,GPS,mobile phone mirror link(Android support two-way control);
3. Multiple Switching ways: long press screen, double sliding, party control, etc;
4. Full-digital circuit, LVDS signal processing, achieve high-definition images;
5. Navigation voice optional (the original car/separate speakers) .Input all voice into the original car audio system! Achieve perfect sound
6. Support trajectory reverse. Support front video function. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
7. It's convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently
8. Optional external RGB (800 x480) input, equipped with android navigation system/mobile phone mirror link;
9. UI of the original car UI, matching the original car style, integrated the original car system; Full pull-in installation , realize nondestructive installation;
Product Description:
1. Adopt high performance Mstar Cortex A9 dual-core car regular processorRK3188,main frequency is 1.6GHZ;
2.With high capacity memory for DDR3 1GB,built-in 16GB capacity for you to store your file;
3.OS:Android4.4.4;
4.Support many kinds of resolutions,default 800*480;
5.Support TMC(Traffic Message Channel);
6.Support many kinds of navigation software.Support 3D live navigation.With Navigation voice mixing function;
7.Support touch screen operation;
8.Support upgrade OS by TF card and U Flash Disk ;
9.Support hardware reset factory Settings;
10.Support connect by wireless WIFI and 3G function. Meet your needs in different environment;
11.Support external TF/SD card,the highest support 32G;
12.Support USB 2.0 external U Flash Disk. Support external Hard Disk;
13.Support many kinds of video formats(1080P):AVI(H.264, DIVX, DIVX, XVID, rm, rmvb, MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264);
14.Supports many audio formats :WAVE,AIFF,AU,MP3,MIDI,WMA,RealAudio,VQF,OggVorbis,AAC,APE;
15. Design EQ sound choice function, achieve high quality music effect.| Interface Parameter |
| Model | LLT-MZD-VER6.5.1 |
| Brand | (Lsailt) |
| Car Screen Size | 7 " |
| Type | Silver interface box |
| Display | LVDS/GVIF Signal transmission(The Board) |
| RGB Input | One |
| AV Input | Two |
| DVR Input | One |
| Front View | One |
| Rear View | Track Reversing and Video |
| Customization | Negotiated |
| General Parameters Andrews |
| CPU | 1.6G Hz |
| Model | Cortex A9 Four dual-core processor,car rule PX3 |
| RAM | DDR3 1GB/2GB |
| Flash | Inand standard equipped,8GB or 16GB |
| Navigation Storage | TF card |
| OS | Android 4.2/4.4 |
| HVGA | 800X480 |
| WIFI | Support |
| BT | support BT4.0 |
| MirrorLink | Android and OS The android support touch |
| Operating Voltage | DC(9-15)V |
| Operating Current | Normal 400 mA@12V |
| Operating Temperature | -20°C-+70°C |
| Storage Temperature | -30°C-+80°C |
| Audio Output | Left and right channels,stereo,distribute the signal and analog output |
