| Prod Model: |
LLT008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
65X26X91mm |
| Box Size: |
170X140X70mm |
| Net Weight: |
520g |
| Options: |
Memory/Shake Sensor/Buzzer |
| Port Specification: |
SIM/Phone/Mic/LED1/LED2 |
| GPS Module: |
Sirf4 |
| Quad Band: |
850/900/1800/1900MHz |
| Function: |
Impact Alarm/Sos Alarm/Geo-Fence Alarm |
| Backup Battery: |
200~850mAh |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Quad Band |
| Brand: |
Lsailt |
Product Description
LLT008 APPLY TO: (different kinds of vehicle, Universal Port specification)
Logistics Team Management, Car rental, Car Route Planning, Bus/Tour Buses Monitor, Car/Vehicle/Truck Tracking, Car Anti-Theft, Fleet management, Special-type Security Industry etc.
Product Description and Specification
1. Compatible with the original vehicle anti-theft system and the original vehicle anti-theft device;
2. Using GSM / GPRS / SMS communication, support networks and SMS search vehicles;
3. Support SMS, phone and Internet network alarm;
4. Remote C-off oil, electricity, telephone remote monitoring;
5. The design of cross-border, speeding and emergency alarm function;
6. Built-in backup battery, Unauthorised Dismantle Alert;
7. Internet tracking and locating vehicles and check traffic status at real-time
Main features
1. Real-time Positioning & Tracking
2. Over Speed Alert
3. SOS Function & Geo-fence
4. Audio Monitoring
5. Remote controlling oil & circuit
6. Inbuilt Backup Battery, Unauthorized Dismantle Alert
7. Compatible with the original anti-theft alarm
8. GPS & A-GPS (LBS_location based service)
9. Real time uploads location information via time/distance interval
10. Support google earth, 3D map
Hardware Description
LLT006, LLT008, and LLT024 adapt Technical module with stable system
GPS MODULE: SIRF4
GSM MODULE: SIM900
CPU: LLT006/LLT008 adapt IT Chip MSP430F149
LLT024 MSP430F5419
Advantages:
1. Sirf4 GPS Module (20 Channels) with stronger gps receiver.
2. Built-in Back battery
3. 3 General I/O Input Ports, 2 Output Ports
4. ONE Microphone and ear phone Interface
5. Temperature Sensor (Optional)
6. Vibration Sensor (Option)
Principle
GPS TRACKING SYSTEM CONTAINS GPS MODULE and GSM MODULE
* GPS MODULE is responsible for locating (Longitude/Latitude/Data/Time/Speed/Angle)
* GSM owes SMS, CALLING, and INTERNET (GPRS/3 G WCDMA)
HOW TO WORK?
GPS TRACKER SYSTEM which will send Location Information Based GPS MODULE to Server through GPRS! Than Server will save date so that User can search Vehicle real position and trajectory playback!
User can search and monitor a vehicle by GOOGLE earth
| Main Features | Size and Weight |
SiRF 4 and Quad Band 850/900/1800/1900Mhz
GPS + LBS Tracking
Track by SMS/GPRS (LLT Protocol)
Track on Demand
Track by Time Interval
Track by Distance Interval
Track on Mobile Phone
Two-way Comunication
Inbuilt Motion Sensor
Internal Backup Battery
SOS Alarm
Geo-fence Alarm
Speeding Alarm
External Power Cut Alarm
Mileage Report
Engine Cut (Engine immobilization)
1 I/O Port | LLT008 Dimension
65x26x91mm
LLT008 Net Weight
520g
Box Size
170x140x70mm
Gross Weight
0.83kg per box
Carton Size
510X430X380mm
(56 sets) |
|
|
|
|
|
|
|
|
|

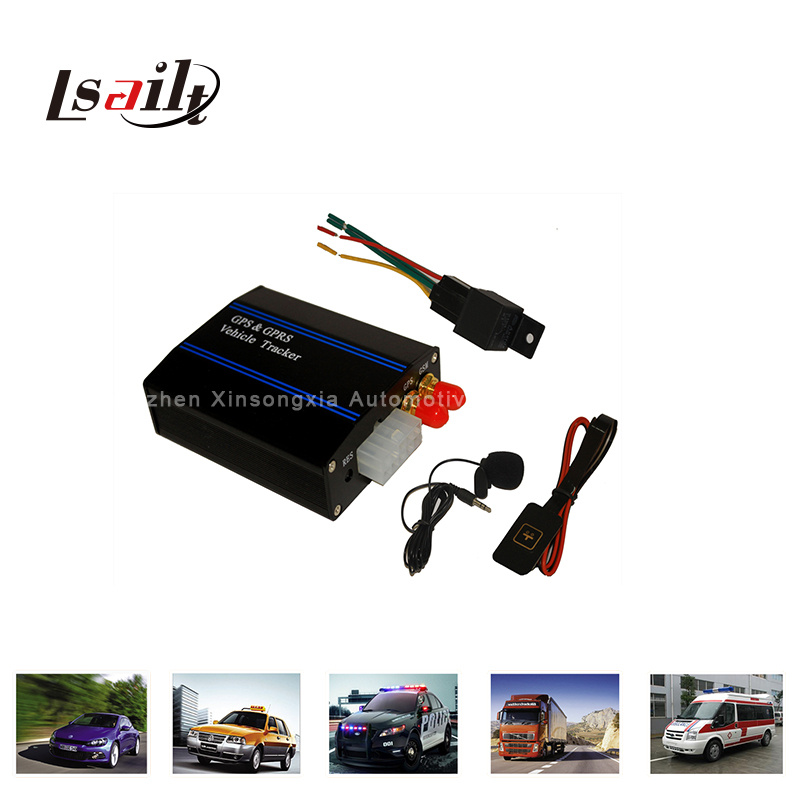

| Standard Packing |
| LLT008 Main Device |
| Relay |
| 7-Pin Cable |
| SOS Button |
| User Maual |
| NO. | Specification | NO. | Specification |
| 1 | DC(12V) 5A protective tube | 6 | VSS |
| 2 | Reserve zone | 7 | SOS |
| 3 | VSS | 8 | Expansion interface |
| 4 | ACC Ignition wire | 9 | Reserve zone |
| 5 | Power/Fuel control | 10 | Reserve zone |
| Optional Accessories(USD/Piece) |
| Built-in Memory(8MB) | US$2.00 |
| Built-in Shake Sensor | US$2.00 |
| Built-in Buzzer | US$3.00 |
| Temperature Sensor | US$2.50 |
