Prod Model: |
RSM-100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Communication: |
Wired |
Connector: |
for Vertex Yeasu Radio |
Voice: |
Loud and Clear |
Color: |
Black |
Use For: |
Security, Policeman, Swat, etc |
Warranty: |
12 Months |
Package: |
Poly Bag |
Cable: |
Kevlar+PU |
Material: |
TPU Black |
Item: |
Two Way Radio Remote Speaker Microphone for Vertex |
Style: |
Handheld Microphone |
Signal Transmission: |
Wired |
Connector(',s): |
for Motorola, Kenwood, Icom, Hytera Connector, Rtc |
Application: |
Two Way Radio/Walkie Talkie |
Product Description

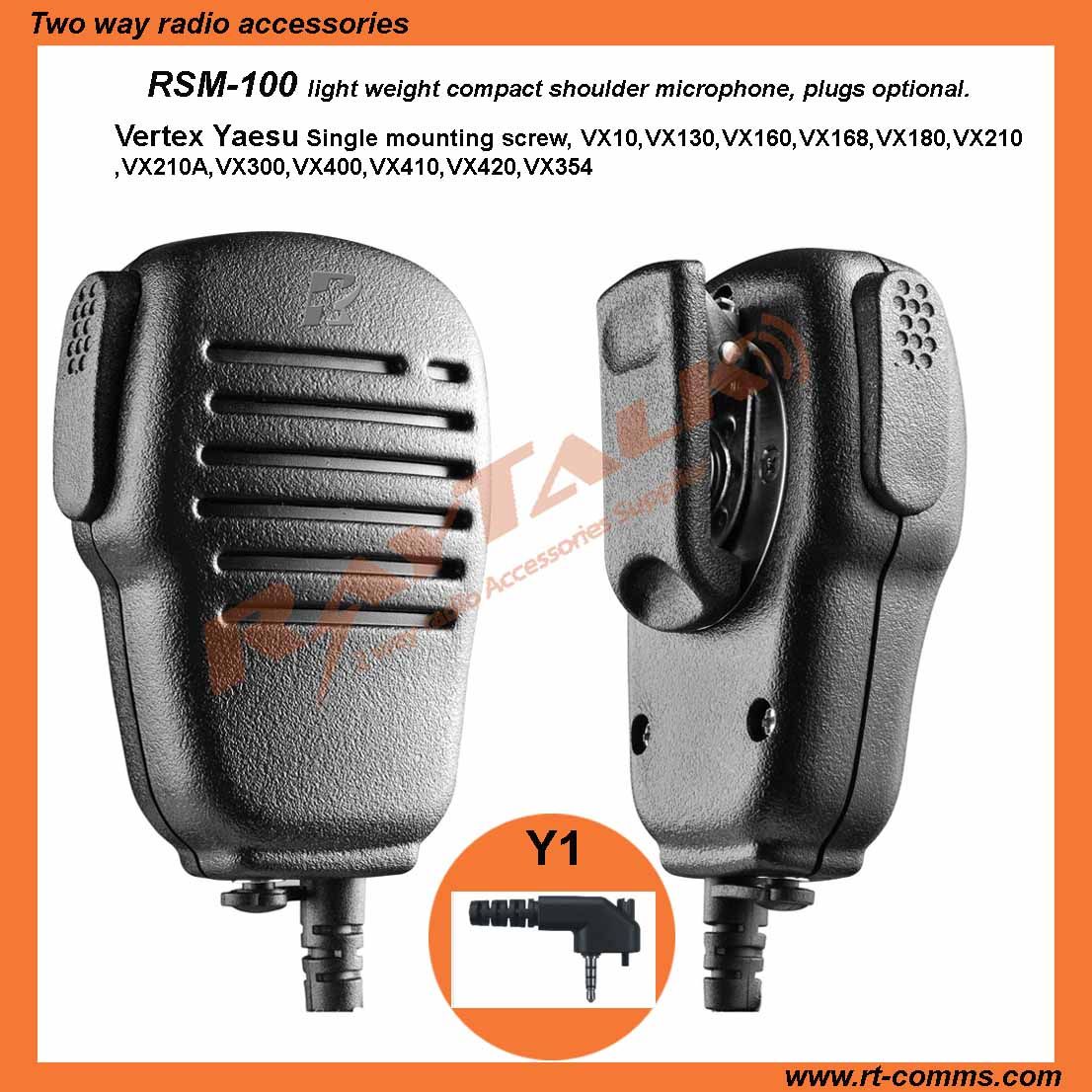

Two Way Radio Remote Speaker Microphone for Vertex Yaesu
Specification
1. Remote speaker microphone
2. Light duty remote speaker microphone
3. Built in 3.5mm accessory jack
4. Connector is optional
5. Professional speaker microphone walkie talkie remote speaker microphone
TECHNICAL SPECIFICATION |
Speaker |
Dimension | Φ36*9.8mm |
Impedance | 8 Ω |
Rated Input Power | 1.0W |
Maximum Power | 1.5W |
Sound Pressure Level | 98 dB±3dB at 1KHz |
Frequency Range | 50Hz - 5KHz |
Microphone |
Dimension | Φ9.7*6.5mm |
Type | Electret Condenser Microphone |
Impedance | 2.2K Ω |
Sensitivity | -40dB ± 3dB at 1000Hz(0dB=1V/Pa) |
Operating Voltage | 2.0V |
Directivity | Omni directional |
Wire |
Dimension | Φ4.2mm |
Durable temperature | 60 ºC-20 ºC |
Material | TPU Black |
Feature
1. Light weight compacts shoulder microphone
2. Great sounding transmit and receive audio
3. Small size: measures only 3''H×2''W×0.6''D(excluding clip)
4. Integrated PTT button
5. High constructed poly-carbonate housing
6. Strain relief cable for maximum durability
7. Built-in earphone 3.5mm accessory jack additional privacy and security
8. Spring loadedm metal reinforced clothing clip 360 degree rotation
Package: 1pc with polybag
Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone
Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc.
For:
Motorola:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, GP300, GP600, GP88, GTX, GTX800, GTX900, P110, P1225, P1225LS, P1325, P225, SP1225, TALKABOUT, T280, TA2280, TA280, TA289, VISAR, I305, GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, EX500, EX560, EX600, GL2000, GP328PLUS, GP338PLUS, PTX700PLUS, PTX760PLUS, GP628, GP644, HT1000, GP1200, GP2010, GP2013, GP900, HT1100, HT6000, JT100, JT1000, MOBIUS, MT2000, MT2100, MTS1200, MTS2000, MTX8000, MTX838, MTX868, MTX9000, MTZ2000, MTP850, MTP800, MTH650, HTH800, MOTOTRBO, XPR6300, XIRP8200, XIRP8208, XIRP8260, XIRP8268, XPR6350, XPR6500, XPR6550, XPR6580, XBR6300. XBR6350, XBR6500, XBR6550, XBR6580, DP3400, DP3600, DGP4150, DGP6150, GTP800, APX7000
Kenwood:
TK208, TK308, TK2102, TK2107, TK238, TK3102, TK3107, TK338, TK2100, TK2100K2, TK260, TK260G, TK261, TK270, TK272, TK272G, TK278, TK3100, TK3100K2, TK3101, TK360, TK360G, TK370, TK370G, TK372, TK372G, TK373G, TK378, TK259, TK355, TK359, TK250, TK250G, TK250N, TK350, TK350G, TK350N, TK353, TK353N, TK430, TK431, TK2140, TK2160, TK2170, TK2360, TK3140, TK3148, TK3160, TK3170, TK3173, TK3360, TK2212, TK2300, TK2302, TK3212, TK3300, TK3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207, TK3302U, TK4100, TK490, TK180, TK190, TK280, TK290, TK380, TK390, TK480, TK481, TK5400, TK3130, TK3131, NX200, NX300, TK-208, TK-308, TK-2102, TK-2107, TK-238, TK-3102, TK-3107, TK-338, TK-2100, TK-2100K2, TK-260, TK-260G, TK-261, TK-270, TK-272, TK-272G, TK-278, TK-3100, TK-3100K2, TK-3101, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-372G, TK-373G, TK-378, TK-259, TK-355, TK-359, TK-250, TK-250G, TK-250N, TK-350, TK-350G, TK-350N, TK-353, TK-353N, TK-430, TK-431, TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3148, TK-3160, TK-3170, TK-3173, TK-3360, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK-2200, TK-2200L, TK-2200P, TK-2202, TK-2202L, TK-2207, TK-3200, TK-3200LP, TK-3200P, TK-3201, TK-3202, TK-3207, TK-3302U, TK-4100, TK-490, TK-180, TK-190, TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-5400, TK-3130, TK-3131, NX-200, NX-300
HYT(Hytera):
TC-268, TC-368, TC-268S, TC-368S, TC-370M, TC-380M, TC-3000, TC-3600, TC-3600M, PT-790, TC-780, TC-500, TC-600, TC-700, TC-610, TC-620, TC-2110, TC-1600, TC-510, CPS, CP-380, CP-330, CP-150, CP-350, CP-220, TC-500S, TC-585, TC-610S, TC-720S, TC-710, TC-510
