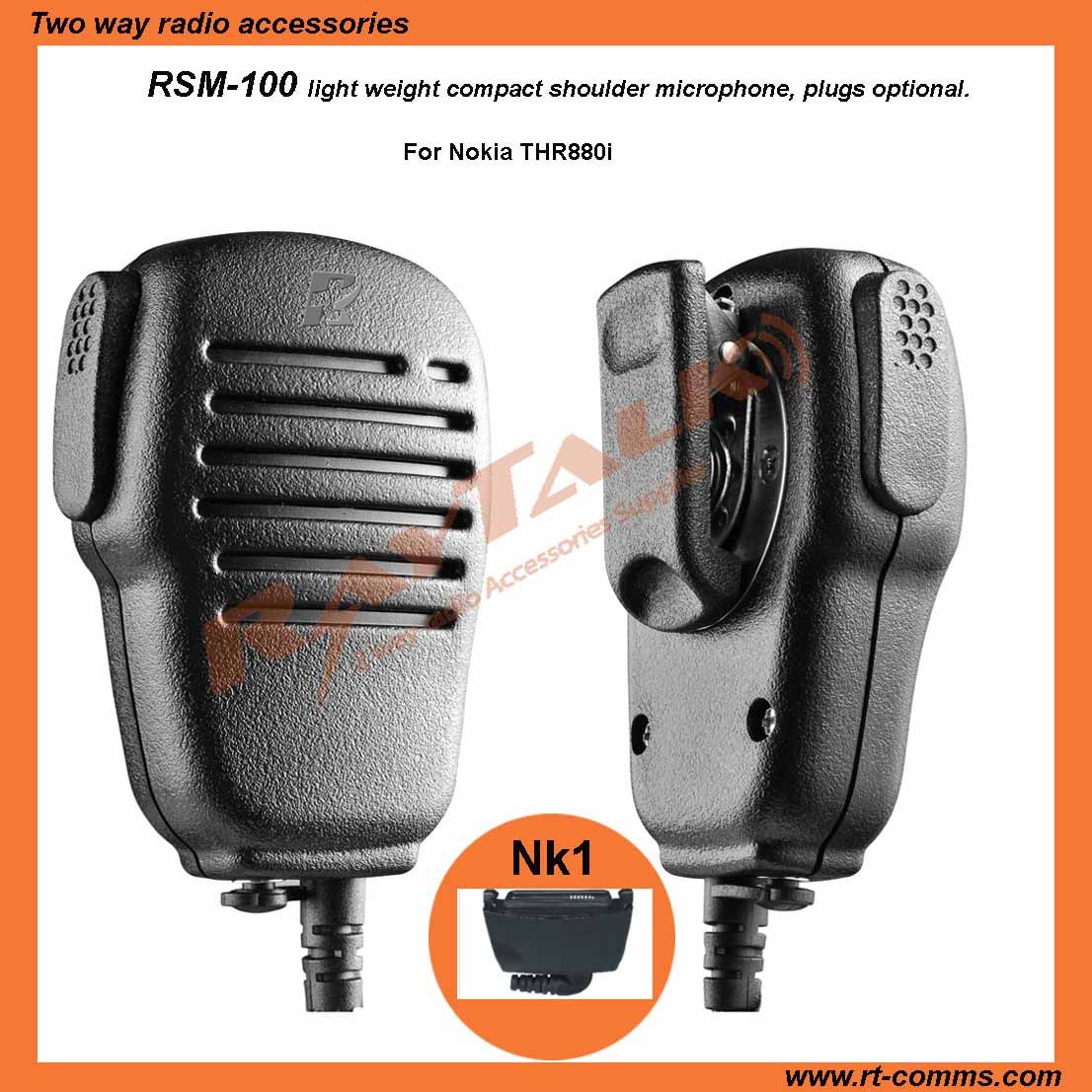

Two Way Radio Handeld Electret Speaker Microphone for Nokia Eads Thr880I

Prod Model:	RSM-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Communication:	Wired
Connector:	for Nokia Eads Thr880I
Voice:	Loud and Clear
Color:	Black
Use For:	Security, Policeman, Swat, etc
Warranty:	12 Months
Cerficate:	CE/RoHS
Cable:	Kevlar+PU
Material:	TPU Black
Item:	Two Way Radio Handeld Electret Speaker Microphone
Style:	Handheld Microphone
Signal Transmission:	Wired
Sound Channel:	Mono
Application:	Two Way Radio/Walkie Talkie
Connector(',s):	for Motorola, Kenwood, Icom, Hytera Connector, Rtc

Product Description

Specification

1.  Remote speaker microphone
2.  Light duty remote speaker microphone
3.  Built in 3.5mm accessory  jack
4.  Connector is optional
5.  Two way radio handeld electret speaker microphone for nokia eads thr880i




TECHNICAL SPECIFICATION
Speaker
Dimension	Φ36*9.8mm
Impedance	8 Ω
Rated Input Power	1.0W
Maximum Power	1.5W
Sound Pressure Level	98 dB±3dB at 1KHz
Frequency Range	50Hz - 5KHz
Microphone
Dimension	Φ9.7*6.5mm
Type	Electret Condenser Microphone
Impedance	2.2K Ω
Sensitivity	-40dB ± 3dB at 1000Hz(0dB=1V/Pa)
Operating Voltage	2.0V
Directivity	Omni directional
Wire
Dimension	Φ4.2mm
Durable temperature	60 ºC-20 ºC
Material	TPU Black

Feature



1. Light weight compacts shoulder microphone

2. Great sounding transmit and receive audio

3. Small size: measures only 3''H×2''W×0.6''D(excluding clip)

4. Integrated PTT button

5. High constructed poly-carbonate housing

6. Strain relief cable for maximum durability

7. Spring loadedm metal reinforced clothing clip 360 degree rotation

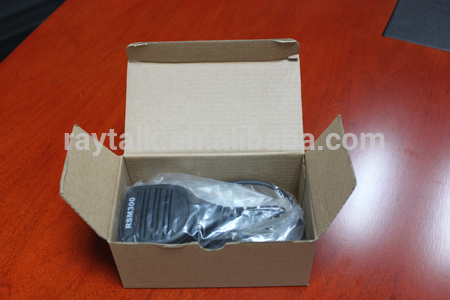

Package

1pc with polybag



Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone

Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc.

For:
Motorola:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, GP300, GP600, GP88, GTX, GTX800, GTX900, P110, P1225, P1225LS, P1325, P225, SP1225, TALKABOUT, T280, TA2280, TA280, TA289, VISAR, I305, GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, EX500, EX560, EX600, GL2000, GP328PLUS, GP338PLUS, PTX700PLUS, PTX760PLUS, GP628, GP644, HT1000, GP1200, GP2010, GP2013, GP900, HT1100, HT6000, JT100, JT1000, MOBIUS, MT2000, MT2100, MTS1200, MTS2000, MTX8000, MTX838, MTX868, MTX9000, MTZ2000, MTP850, MTP800, MTH650, HTH800, MOTOTRBO, XPR6300, XIRP8200, XIRP8208, XIRP8260, XIRP8268, XPR6350, XPR6500, XPR6550, XPR6580, XBR6300. XBR6350, XBR6500, XBR6550, XBR6580, DP3400, DP3600, DGP4150, DGP6150, GTP800, APX7000

Kenwood:
TK208, TK308, TK2102, TK2107, TK238, TK3102, TK3107, TK338, TK2100, TK2100K2, TK260, TK260G, TK261, TK270, TK272, TK272G, TK278, TK3100, TK3100K2, TK3101, TK360, TK360G, TK370, TK370G, TK372, TK372G, TK373G, TK378, TK259, TK355, TK359, TK250, TK250G, TK250N, TK350, TK350G, TK350N, TK353, TK353N, TK430, TK431, TK2140, TK2160, TK2170, TK2360, TK3140, TK3148, TK3160, TK3170, TK3173, TK3360, TK2212, TK2300, TK2302, TK3212, TK3300, TK3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207, TK3302U, TK4100, TK490, TK180, TK190, TK280, TK290, TK380, TK390, TK480, TK481, TK5400, TK3130, TK3131, NX200, NX300, TK-208, TK-308, TK-2102, TK-2107, TK-238, TK-3102, TK-3107, TK-338, TK-2100, TK-2100K2, TK-260, TK-260G, TK-261, TK-270, TK-272, TK-272G, TK-278, TK-3100, TK-3100K2, TK-3101, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-372G, TK-373G, TK-378, TK-259, TK-355, TK-359, TK-250, TK-250G, TK-250N, TK-350, TK-350G, TK-350N, TK-353, TK-353N, TK-430, TK-431, TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3148, TK-3160, TK-3170, TK-3173, TK-3360, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK-2200, TK-2200L, TK-2200P, TK-2202, TK-2202L, TK-2207, TK-3200, TK-3200LP, TK-3200P, TK-3201, TK-3202, TK-3207, TK-3302U, TK-4100, TK-490, TK-180, TK-190, TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-5400, TK-3130, TK-3131, NX-200, NX-300

HYT(Hytera):
TC-268, TC-368, TC-268S, TC-368S, TC-370M, TC-380M, TC-3000, TC-3600, TC-3600M, PT-790, TC-780, TC-500, TC-600, TC-700, TC-610, TC-620, TC-2110, TC-1600, TC-510, CPS, CP-380, CP-330, CP-150, CP-350, CP-220, TC-500S, TC-585, TC-610S, TC-720S, TC-710, TC-510

Company Information

Raytalk Communications Electronics Co., Ltd is a professional manufacturer in two way radio accessories and Aviation Headset since 2003.



Our products include Aviation Headset, Heavy duty headset, PTT Selection, Lapel Microphones, Surveillance Kits, Earpieces, Ear Bone Microphone, Handle Speaker Microphone, Throat Microphone, Boom Microphone, Listening Only Kits, Audio Adapters, Spare Parts etc. Compatible with Motorola, Kenwood, Icom, HYT, Vertex, Nokia, Midland, Nexus, Simoco,etc. With an experienced and professional team, our products have been exported to many countries and regions around the world and enjoy high reputation among our customers.
