| Prod Model: |
E-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

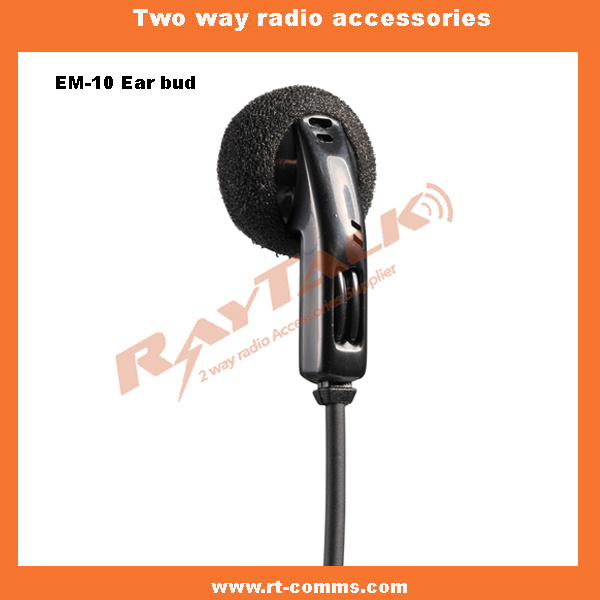

Two Way Radio Ear Bud Earpiece (E-10) |
| Style: |
In-ear |
| Line-Control: |
Line-Control |
| Jack Type: |
3.5mm |
| Microphone: |
Without Microphone |
| Type: |
Dynamic Headphones |
| Function: |
Noise-Cancelling |
| Earpad Size: |
One Size |
| Color: |
Black |
| Use: |
Two Way Radio |
Product Description
Ear buds earpiece for two way radio
1, 15mm diameter earphone, easy and portable.
2, High quality earphone provide clear audio and private communication.
3, Easy to change the direction, suitable for both ears.
4, Feature heavy grade industrial jacketed cables for maximum life.
5, Designed for general, hospitality and entertainment markets.
6, Compatible with all brand two way radios.
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
