| Prod Model: |
TW 12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 500*600*150mm: |
28kg |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Professional Amplifier |
| Voltage: |
Selectable |
| Element Number: |
Selectable |
| Output Number: |
2 CH |
| Conductive Mode: |
Class H |
| Sound Channel: |
2 CH |
Product Description

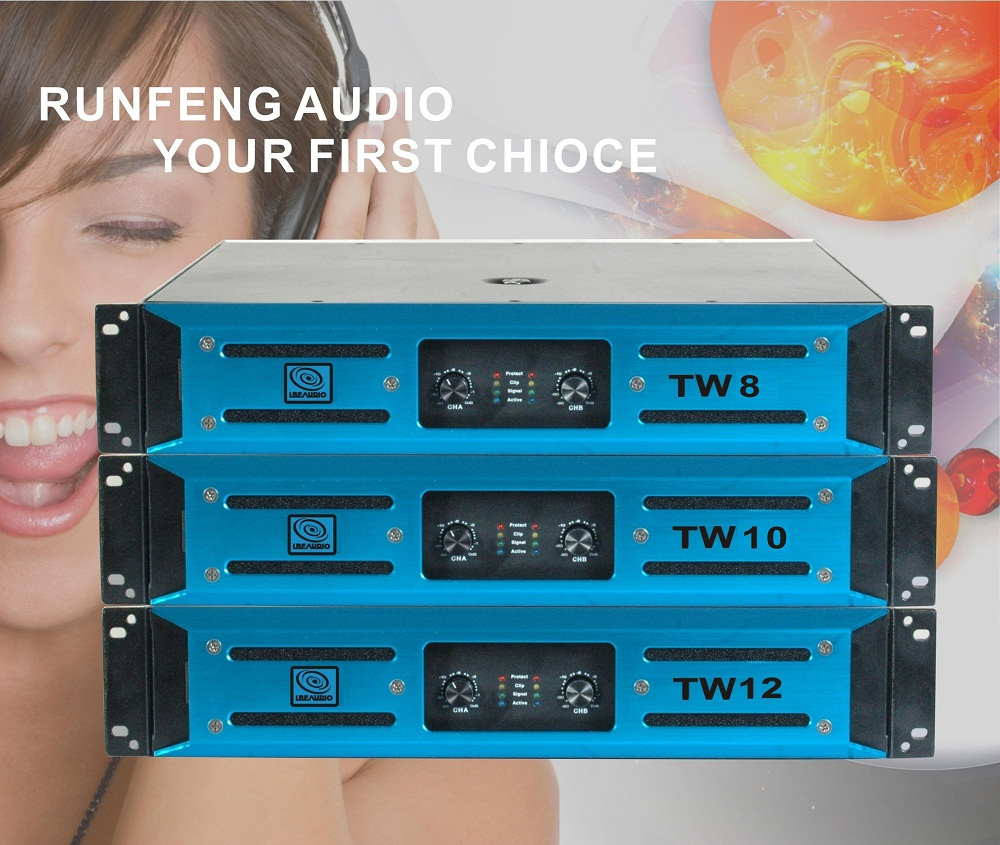

TW series ( TW )
TW Series is designed as middle level of professional power amplifier for permanent fixed installation . Its output power range from 2×400W to 2×1200 W/8ohms.
All series incorporates sufficient power transformer and legendary amplifying circuitry that ensure amplifier working very steadily under 2ohms with cleanest sound quality.
This model is special to meet requirements of professional users in sound reinforcement of large gymnasium, DISCOTHEQUE, Music Hall .etc.
Features:
Toroidal power transformer,
Dual,variable speed fans each channel.
Male and Female XLR inputs.
speakon and 4 binding post speaker outputs.
Mode selector is available for stereo,parallel and bridged-mono operation.
Input sensitivity selection,
Crossover and grounding left switches are selectable.
Limiter button for use in rear panel.
,,.
:,,,,,.
,.
,,,,.
,.
2×400W2×1200W.
NUMBER
MODEL
TW400
TW600
TW800
TW1000
TW1200
Output Power(8Ω)
2×400W
2×600W
2×800W
2×1000W
2×1200W
Output Power(4Ω)
2×600W
2×900W
2×1200W
2×1500W
2×1800W
Output Power(2Ω)
2×900W
2×1225W
2×1630W
2×2040W
2×2450W
Output Power(BRIDGE)(8Ω)
600W
1800W
2400W
3000W
3600W
Output Power(BRIDGE)(4Ω)
1800W
2450W
3260W
4080W
4900W
Output Circuit
Class AB
Class H
Class H
Class H
Class H
Input impedance
Balance /20K Unbalance /10K
Frequency response
20Hz-20kHz.(+/- 0.5dB)
THD+N
<0.1% 20Hz-20kHz.(8Ω)
Slew rate
>30V/μs
S/N rate
>95 dB
Damping factor
>300
Cooling system
Full Speed Fans
Protection
Soft start, DC, short circuit, over load, clip limit, over heat,
N.Weight/G.Weight(KG)
16/17.5
19/20.5
22/23.5
25/26.5
26/27.5
Dimension (mm)
600×450×88
600×500×88
600×500×88
600×500×88
600×500×88
Power supply
AC220V/50Hz.±10% / AC1100V/60Hz.±10% according to customer's needs
RUNFENG AUDIO" is a China based PRO amplifier MANUFACTURER that mainly offers OEM/ODM business for contractors, installers, professinals and all kinds of sound companies all over the world. We have been released RUNFENG DESIGNS to partners both in China and oversea for decades.
The founder, Mr Paul Lin, who started his carear with his strong desire and passion to PRO amplifier and relative audio equipments. He spent most his time and energy to design and research how to make PRO amplifier work. His works has come out and helped many professionals with a high quality but low burget solutions. But he doesn't even stop working hard his research for a better solution.
RUNFENG AUDIO was founded to overtake next revolution of the future, located in Zhongshan city Guangdong province. With clear MOTTO"QUALITY FIRSTLY". We decide to devote ourself to a single line of AUDIO PRODUCTS.
