| Prod Model: |
RF6000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
600*500*89mm |
| Noise: |
<95dB |
| Operation Mode: |
Knob Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Metal |
| Application: |
Commercial |
| Certification: |
CE |
| Monitor: |
LED Screen |
| THD: |
<0.03% |
Product Description

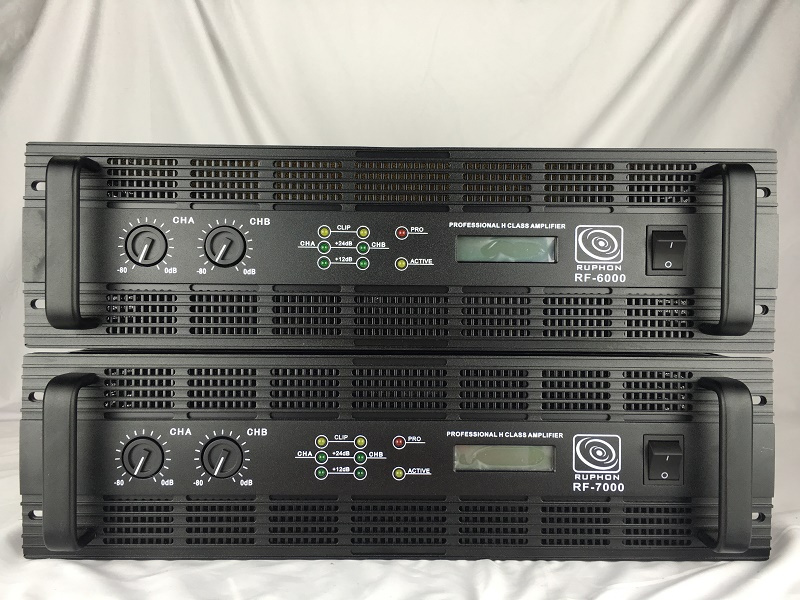

I am very proud to introduce RF-AUDIO RF series professional power amplifier for your reference. This model is designed with top quality and elegant layout. Its special LCD display installed in the front panel make it more easy and friendly to use. It will be your first choice for fixed installation project in large-scale venues, fixed installation of sound projects in advanced entertainment, discos and clubs.
Model
RF1800
RF2700
RF3600
RF5400
RF6000
RF7000
Power
8Ω STEREO
400 W
600 W
800 W
1200 W
1300 W
1500 W
4Ω STEREO
600 W
900 W
1200 W
1800 W
2000 W
2250 W
2Ω STEREO
900 W
1350 W
1600 W
2700 W
2950 W
3370 W
8Ω BRIDGE
1200 W
1800 W
2400 W
3600 W
4000 W
4500 W
4Ω BRIDGE
1800 W
2700 W
3600 W
5400 W
6000 W
7000 W
OTHER Specification
Frequency response
20Hz-20kHz. (+/- 0.5dB) 20Hz-120Hz. (+/- 0.5dB) 50Hz-20kHz. (+/- 0.5dB)
THD+N
< 0.1%
S/N rate
> 105dB
Damping factor
> 300
> 500
Crosstalk
> 60dB
Slew rate
> 40 V/μ s
Input sensitivity
0.775V /1V/1.4V
Input impedance
Balance/20KΩ Unbalance/ 10KΩ
Function
Front panel indictor
POWER, ACTIVE, SIGNAL CLIP, PROTECTION.
Front panel
Power switch, volume control knob
Rear panel
Stereo/parallel/bridge switch, input sensitivity switch, Left-ground switch. Crossover switch. Limiter buttom.
Dimension / weight
Product dimension
(W x D x H) (mm)
483x495x88 (2U) mm
483x495x133(3U) mm
Packing dimension
(W x D x H) (mm)
620x585x170 mm
620x585x210 mm
N. W.
16kg
19kg
22
33. kg
34.0kg
G. W.
17kg
20.5kg
23
35kg
36.5kg
POWER SUPPLY
AC220V/50Hz. ± 10%
