| Prod Model: |
ZYM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow Rate: |
3000L/H |
| Water Content: |
Less Than 3ppm |
| Gas Content: |
Less Than 0.1% |
| Particles Size: |
Less Than 1u |
Product Description
Specifications

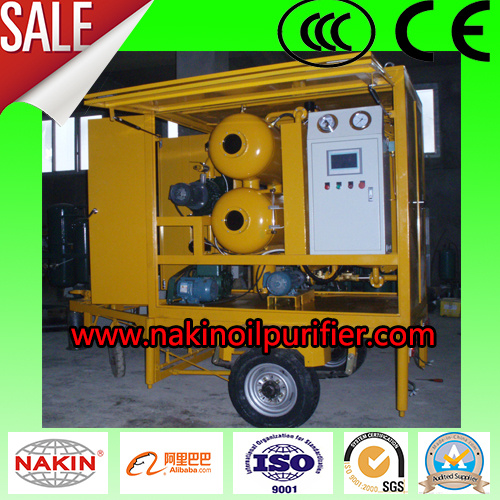

Trailer Type Insulating Oil Purifier
1.Mobile (trailer) type, completely closed structure
2.Multi-stage precision filters.
Trailer Type Insulating Oil Purifier
Application:
According to fieldwork requirement, this machine equips the car tires, ZYM vacuum insulating oil purifier is mounted on trailer and move to any work point by traction. It is special suitable for on-line purification of the transformer oil. The transformer oil purified by this oil filtration machine can reuse again in transformers. This oil filtration machine also can install the recondition system to remove acidity, sludge, free carbon, other soluble oil decay products and discoloration. ZYM insulating oil purifier mainly has the functions of degassing, dehydration and filtering impurities of transformer oil.
Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car types,Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters:
Index name |
Unit |
ZYM-30 |
ZYM-50 |
ZYM-65 |
ZYM-100 |
ZYM-150 |
Flow rate |
L/H |
1800 |
3000 |
4000 |
6000 |
9000 |
Working vacuum |
MPa |
-0.08~-0.099 |
Working pressure |
MPa |
≤ 0.4 |
Temperature range |
°C |
20 ~80 |
Dielectric strength |
KV |
≥ 70 |
Water content |
ppm |
≤ 3 |
Gas content |
% |
≤ 0.1 |
Particles size |
μ |
≤ 1 |
Power supply |
|
380V 50HZ 3Ph (As per user's option) |
Working noise |
dB(A) |
≤65~85 |
Heating power |
Kw |
24 |
30 |
40 |
60 |
90 |
Total power |
Kw |
27.5 |
35.5 |
48.5 |
68 |
105 |
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ42 |
Φ50 |
Φ50 |
Purifier weight |
kg |
550 |
720 |
830 |
950 |
1120 |
Trailer weight |
kg |
300 |
300 |
450 |
450 |
500 |
Purifier
Dimension |
L |
mm |
1400 |
1400 |
1650 |
1700 |
1820 |
W |
mm |
1100 |
1100 |
1200 |
1200 |
1320 |
H |
mm |
1300 |
1300 |
1500 |
1500 |
1620 |
Trailer
Dimension |
L |
mm |
2750 |
2750 |
3000 |
3080 |
3400 |
W |
mm |
1400 |
1400 |
1620 |
1620 |
1710 |
H |
mm |
1100 |
1100 |
1100 |
1100 |
1100 |
|
|
|
|
|
|
|
|
|
