| Prod Model: |
TFT052A |
| Size: |
3.5inch |
| Resolution: |
320(RGB)X240 |
| LED Numbers: |
6 LEDs |
| Color Depth: |
24bit |
| Weight(Gram): |
29.3 |
| Piexl Pitch(mm): |
0.219X0.219 |
| Display Colors: |
16.7m Dithering |
| Pixel Configuration: |
R.G.B.Vertical Stripe |
| LCM(Wxhxd)(mm): |
76.9*63.9*4.42 mm |
| Active Area (mm): |
70.08X52.56 |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Response Time: |
2ms |
| Viewing Angle: |
IPS |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description

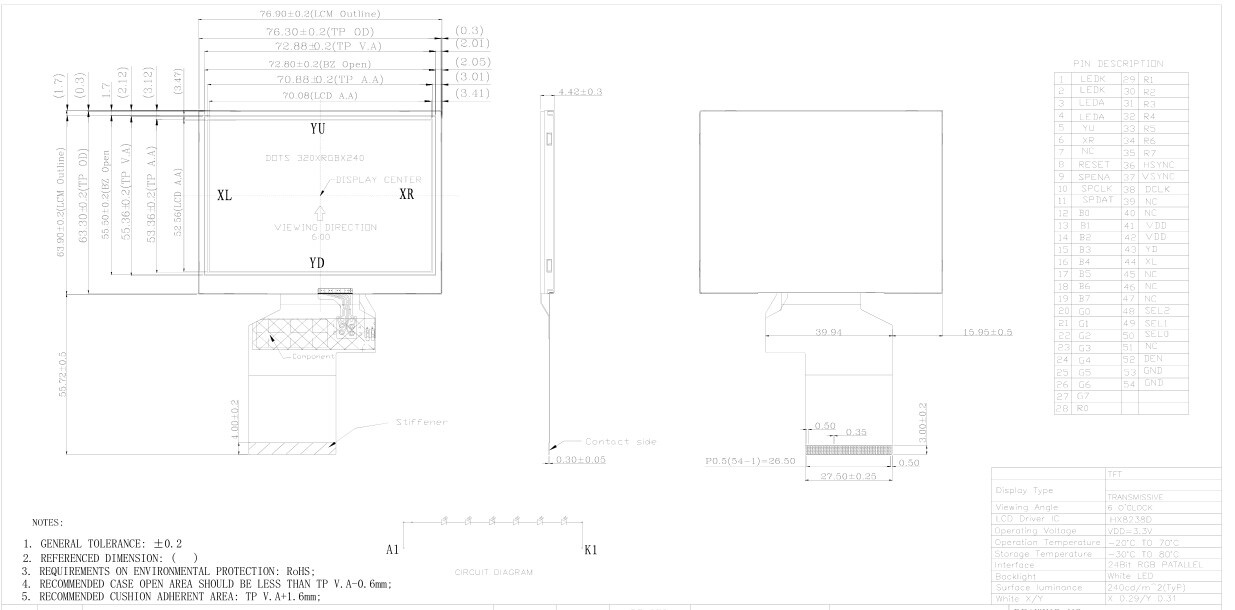

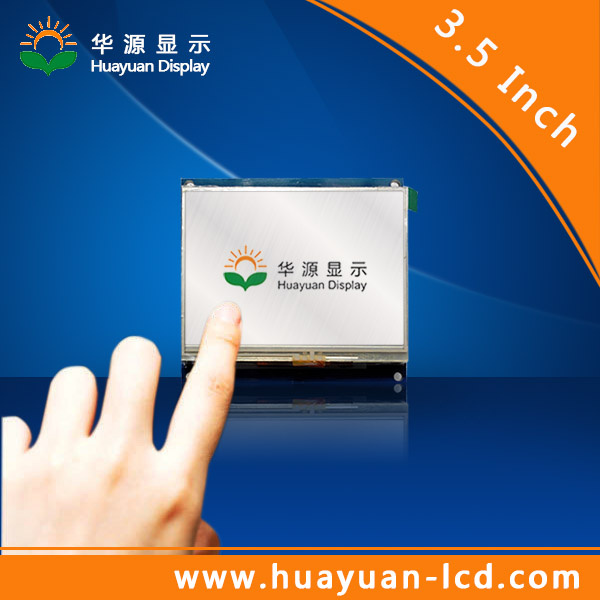

Data sheet3.5 inch lcd display with TP
Quick details
- Place of origin:Guangdong, china (mainland)
- Brand name:Huayuan
- Model number:Tft 052a
- Type:Tft
- Driver element:A-si tft active matrix
- Number of dots:320*(rgb)*240
- Pixel arrangement:Rgb vertical stripe
- Active area:70.08*52.56
- Driver ic:Hx8238d
- Module size(w*h*t):76.9*63.9*4.42 mm
- Back light:White led
- System interface:24-bit rgb interface
- Warranty:12 months
- Quality:100% test by aging room
Additional Info.
Trademark: Huayuan display
Packing:Carton Box
Standard: ROHS ISO9001
Origin:China
Production Capacity:10000PCS/M
Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
Payment: T/T,paypal,WU etc
Contact Us: Send inquiry to us to get newest price and information!
Tel: 86-731-28668968
Fax: 86-731-28660280Related products : 2.8" 3.2" 3.5" 4.3" 5" 5.6" 7" 8" 9" 10.1" 17"
LCD Module application: Game Machine,Car Audio DVD,GPS,cash register,Industial Automation,Office Automation,MedicalEquipment,LCD Monitor,DVDPlayer,POS machine. etc.
How to running the orders with customers ? And we can be custom-order per custom-request
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .believe we are your best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of our other items. We are glad to help you!
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
