| Prod Model: |
TFT059A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT |
| Controller: |
Ili6122+Ili5960 |
| Interface: |
24bit RGB |
| Backlight: |
12LED White |
| Resoluton: |
800*480(WVGA) |
| Outline Size: |
120.7*75.8*3.1mm |
| Operating Temperature: |
-20~70 Degree |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Viewing Angle: |
IPS |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
Product Description

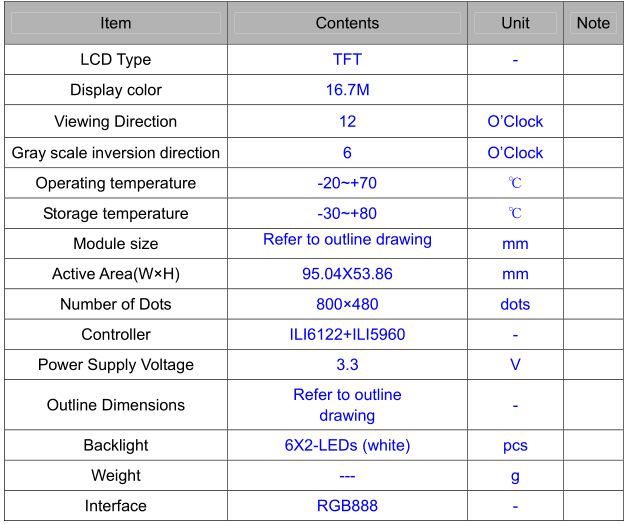

1. Gerneral Specification 5" Transflective Color lcd Display with Touch Screen
Place of Origin:Guangdong China (Mainland)Brand Name:Huayuan
Model Number:TFT059A
Type:TFT
Size: 5 inch tft touch display
Resolution: 800x RGB x 480(WVGA)
Backlight: 12 LED in Series
Viewing direction: 6 O'Clock
Driver: ILI6122+ILI5960
Interface: 24 Bit RGB
FPC cable: 40 pin
Touch Panel: with touch panel
Outline dimension:120.7x75.8x4.3mm
Operating temp: -20 to 70
Customized:Available

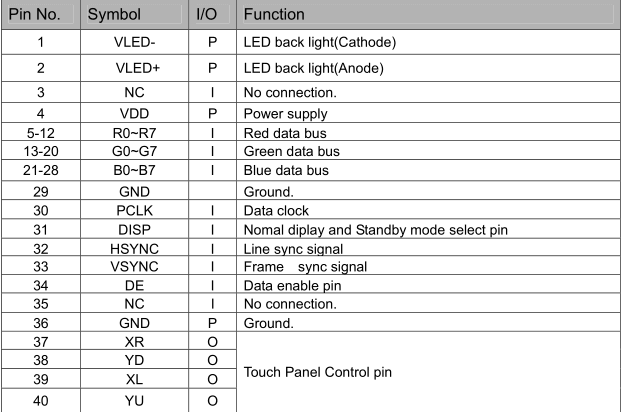

2. PIN information

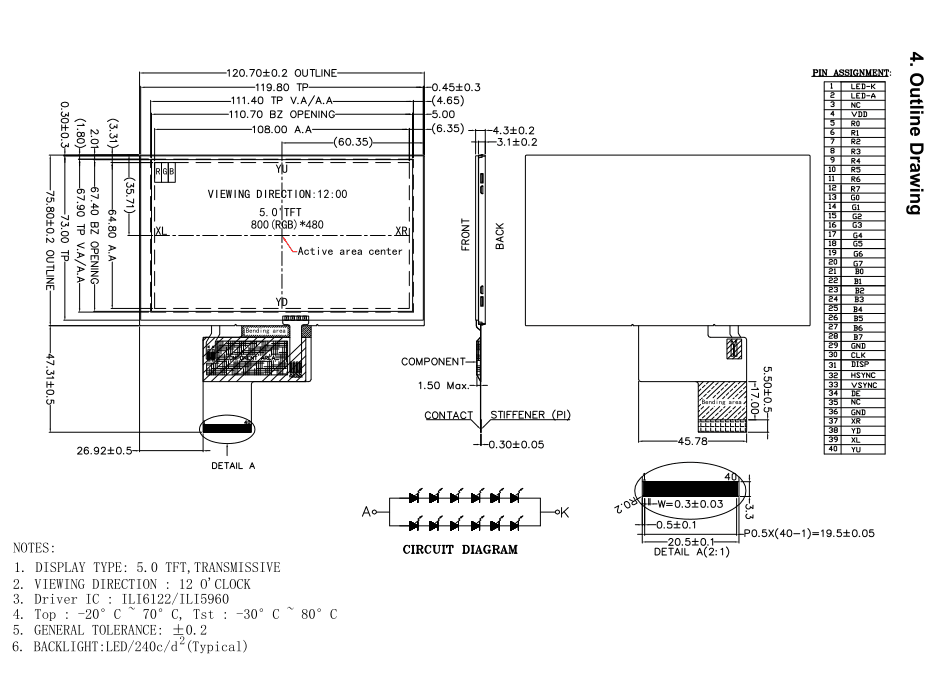

3.outline drawing
4.Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
