| Prod Model: |
1.5hp 100% solar air conditioner |
| Power: |
Solar |
| Compressor: |
48V DC Compressor |
| Inverter To 110/220V: |
No Need |
| 100% Off Grid: |
Yes |
| Warranty: |
3 Years for Whole System |
| Solar Panels: |
No Need |
| Batteries: |
No Need |
| Solar Controller: |
No Need |
| Manufacturer: |
Yes |
| Color: |
White |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Certification: |
CCC |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Solar |
| Power Type: |
DC |
| Condition: |
New |
Product Description

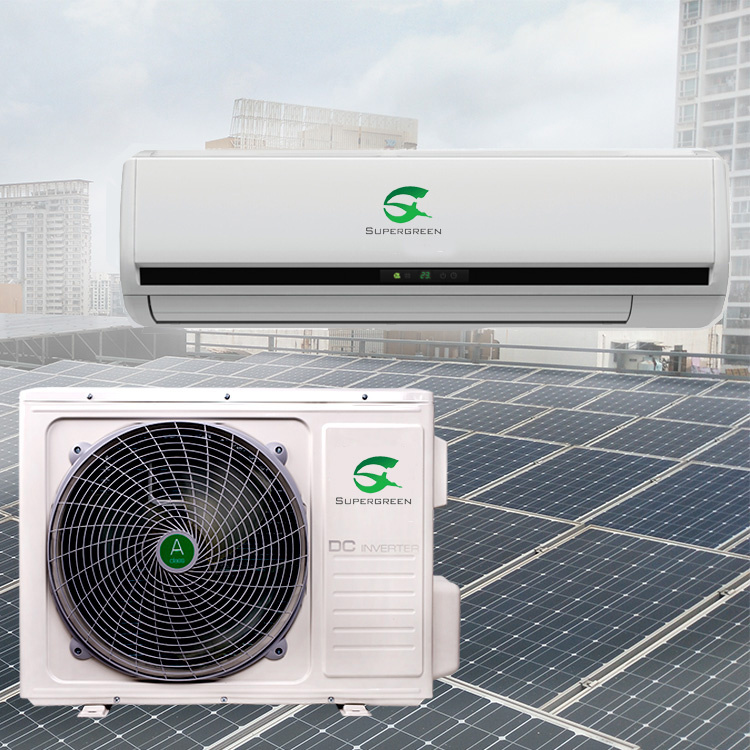

Top quality 48V dc 100% solar air conditioner
100% Off Grid Solar Air Conditioner
(9000BTU-24000BTU)
Features:
1.Off Grid Working with 100% solar energy
2.DC 48V compressor,no need inverter
3.Supreme high efficiency rating reach to 5.62
4.8hours-36hours working time option
Specifications:
| Model No. | TKF-26GW/DC | TKF-35GW/DC | TKF-50GW/DC | TKF-72GW/DC |
| 1HP | 1.5HP | 2HP | 3HP |
| 0.75ton | 1ton | 1.5ton | 2ton |
| Performance | |
| Capacity | Cooling | Btu/h | 9000 | 12000 | 18000 | 24000 |
| W | 2600 | 3500 | 5200 | 7200 |
| Heating | Btu/h | 10000 | 13000 | 20000 | 27000 |
| W | 2800 | 3700 | 6000 | 7900 |
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤43 | ≤50 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤54 | ≤58 |
| Air Circulation | m³/h | 450 | 550 | 650 | 1050 |
| Suitable Area | m² | 10~15 | 12~25 | 20~30 | 30~48 |
| EER | W/W | 4.56 | 3.89 | 4.73 | 4.80 |
| Btu/h/w | 15.79 | 13.33 | 16.36 | 16.00 |
| Refrigerant | | R-134A | R-134A | R-134A | R-134A |
| Compressor | DC 48V | DC 48V | DC 48V | DC 48V | DC 48V |
| Operation Temp. | ºC | 17-30 | 17-30 | 17-30 | 17-30 |
| Power Consumption | |
| Power Input | W | 570 | 900 | 1100 | 1500 |
| Rated Current | A | 11.5 | 16 | 22 | 50 |
| Input Power | V | DC 48 | DC 48 | DC 48 | DC 48 |
| Dimension | |
| Indoor Unit | NET | mm | 745*255*195 | 775*260*210 | 1070*385*265 | 1070*385*265 |
| Shipping | mm | 780*240*305 | 840*325*265 | 1100*400*285 | 1100*400*285 |
| Outdoor Unit | NET | mm | 645*245*495 | 790*260*540 | 790*260*540 | 790*260*540 |
| Shipping | mm | 725*320*540 | 910*370*610 | 910*370*610 | 910*370*610 |
| Weight | |
| Indoor Unit | Net/Gross | kg | 11/13 | 13/15 | 15/17 | 15/17 |
| Outdoor Unit | Net/Gross | kg | 38/40 | 45/48 | 48/52 | 48/52 |
| Loading | 20GP | | 98 | 98 | 75 | 75 |
| 40HQ | | 235 | 235 | 175 | 175 |
| Wall Mounted Type DC Solar Air-Conditioner |
| Power Supply:12VDC (11V to 13.5V) |
| Model No. | TKF-11GW/DC(0.5HP) |
| Performance |
| Capacity | Cooling | Btu/h | 4000 |
| W | 1100 |
| Noise | Indoor | dB(A) | ≤40 |
| Outdoor | dB(A) | ≤50 |
| Air Circulation | m³/h | 450 |
| Suitable Area | m² | 10~15 |
| EER | W/W | 4.56 |
| Btu/h/w | 15.79 |
| Refrigerant | | R-134A |
| Compressor | DC 12V |
| Power Consumption |
| Power Input | W | 340 |
| Rated Current | A | 28 |
| Input Power | V | DC 12 |
| Dimension |
| Indoor Unit | Shipping | mm | 745*255*195 |
| NET | mm | 780*240*305 |
| Outdoor Unit | Shipping | mm | 645*245*495 |
| NET | mm | 725*320*540 |
| Weight |
| Indoor Unit | Net/Gross | kg | 11/13 |
| Outdoor Unit | Net/Gross | kg | 38/40 |
| Wall Mounted Type DC24V Solar Air-Conditioner |
| Power Supply:24VDC (22V to 27V) |
| Model No. | TKF-26GW/DC-24 |
| Performance |
| Capacity | Cooling | Btu/h | 9000 |
| W | 1100 |
| Noise | Indoor | dB(A) | ≤40 |
| Outdoor | dB(A) | ≤50 |
| Air Circulation | m³/h | 450 |
| Suitable Area | m² | 10~15 |
| EER | W/W | 4.56 |
| Btu/h/w | 15.79 |
| Refrigerant | | R-134A |
| Compressor | DC 24V |
| Power Consumption |
| Power Input | W | 570 |
| Rated Current | A | 23.8 |
| Input Power | V | DC 24 |
| Dimension |
| Indoor Unit | Shipping | mm | 745*255*195 |
| NET | mm | 780*240*305 |
| Outdoor Unit | Shipping | mm | 645*245*495 |
| NET | mm | 725*320*540 |
| Weight |
| Indoor Unit | Net/Gross | kg | 11/13 |
| Outdoor Unit | Net/Gross | kg | 38/40 |
Meet CE &CCC Standard
Production line
FAQ:
************************************************************************************************************************************
Our company products:
1. Hybrid solar air conditioner
2. 48V DC 100% solar air conditioner
3. Split wall mounted type hybrid solar air conditioner
4. Cassette type hybrid solar air conditioner
5. Ceiling & Flooring type hybrid solar air conditioner
6. Floor Standing type hybrid solar air conditioner
7. The ductless type solar air conditioner
8. Solar insect killer/Mosquito/Moth killer lamp........
We only provide your Most Stabalized products
Most satisfied service
Best Solution for you and your customer!
If you are interested in any of our products, please contact us freely!
