| Prod Model: |
solar air conditioner 9000btu |
| Power: |
Solar |
| Compressor: |
Gmcc/Hitachi |
| Inverter To 110/220V: |
No Need |
| 100% Off Grid: |
No |
| Warranty: |
1 Years for Whole System |
| Solar Panels: |
No Need |
| Batteries: |
No Need |
| Solar Controller: |
No Need |
| Manufacturer: |
Yes |
| Color: |
White |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
9000-12000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
CCC |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Solar |
| Power Type: |
AC |
| Condition: |
New |
Product Description

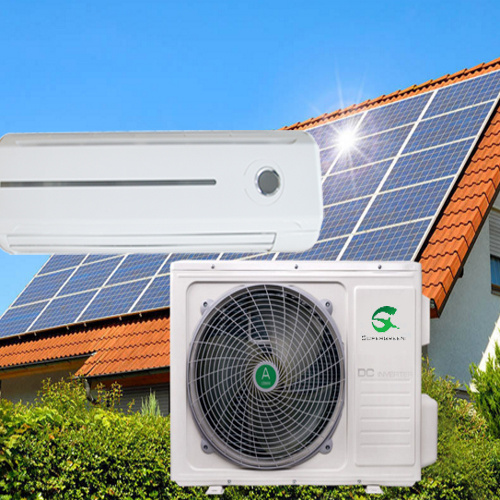

Cheapest DC Compressor 48V 100% Split Air Conditioner Portable Solar Power
Hybrid Solar Air Conditioner
(9000BTU-24000BTU) for Wall Mounted range
Up to 48000btu for Cassette,Ducted, Floor standing,Floor ceiling series.
Features:
1.on Grid Working with 50% solar energy
2.Vacuum thermal tube solar collector ,with easy installation and affordable cost
3.Supreme high efficiency rating reach to 4.0
4.International famous brand compressor
5.R410A environment friendly gas
Specifications: | Model No. | SGS-9000CO(H) | SGS-12000CO(H) | SGS-20000CO(H) | SGS-24000CO(H) |
| Power Supply:220-240VAC, 1PH, 50Hz | | | | |
| Performance | | | | | | | |
| Capacity | Cooling | Btu/h | 9000 | 12000 | 20000 | 24000 |
| W | 2600 | 3500 | 6000 | 7200 |
| Heating | Btu/h | 10000 | 13000 | 22000 | 27000 |
| W | 2900 | 3800 | 6600 | 7900 |
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤46 | ≤50 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤56 | ≤58 |
| Air Circulation | m³/h | 500 | 550 | 850 | 1150 |
| Suitable Area | m² | 11~17 | 15~23 | 25~42 | 30~48 |
| EER | W/W | 3.64 | 3.89 | 3.88 | 3.82 |
| Btu/h/w | 12.42 | 13.27 | 13.24 | 13.03 |
| Power Consumption | | | | | | |
| Power Input | Cooling | W | 650~770 | 800~1025 | 1350~1560 | 1700~1900 |
| Heating | W | 650~780+350 | 800~1050+350 | 1350~1590+350 | 1700~1950+350 |
| Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 8.00~8.90 |
| Heating | A | 3.00~3.65+1.6 | 3.70~4.90+1.6 | 6.30~7.50+1.6 | 8.00~8.90+1.6 |
| Vacuum Tube | Diameter*Length*Pcs | 47mm*500mm*10 | 47mm*500mm*10 | 47mm*620mm*11 | 47mm*620mm*11 |
| Dimensions | | | | | | | |
| Indoor Unit | Net | mm | 802*265*190 | 880×286×203 | 940×300×220 | 1080*220*300 |
| Shipping | mm | 860*325*255 | 935×350×270 | 1003×360×280 | 1136*285*360 |
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 |
| Shipping | mm | 910*370*610 | 910*370*610 | 950*410*760 | 990*400*770 |
| Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 |
| Vacuum Tube | Shipping | mm |
| Weight | | | | | | | |
| Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 20/22 |
| Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 55/58 |
| Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 |
| Loading Qty | in 20feet | sets | 66 | 66 | 49 | 46 |
| 40HQ | sets | 162 | 162 | 120 | 112 |
Meet CE &CCC Standard
indoor Production line
outdoor production line
We only provide your Most Stabalized products
Most satisfied service
Best Solution for you and your customer
Supergreen Renewable Energy Technology Co., Ltd, is the leading company of the renewable energy technology application in China. It is a professional manufacturer of solar pest control lamp, Solar air conditioner, solar refrigerator and so on. With strong R&D team, We are committed to energy conservation and environmental protection for new energy career and to provide the latest technology and best solution for users.
The company has a set of advanced equipment for R&D, production, quality Control, gathers a group of professional technicians to engaged in product research and development. It can provide various kinds of special specification products and technology service for customers. Products and technology have been exported to many countries and area, such as Western Europe, North America, Eastern Asia Middle East, etc.
"Quality, Sincerity, Practical, Innovation" is our objective for enterprise management. Sincerely welcome friends domestic and abroad to visit us to cooperate and develop together.
