Tl-4200 Versatile Digital Conference System
| Price: |
US $ 1-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL-VX4200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Highly Resistant To Mobile Interference: |
Yes |
| Discussion: |
Yes |
| Translation: |
Yes |
| Voting: |
Yes |
| Anti-Feedback: |
Yes |
| Camera Tracking: |
Supported |
| Recording: |
Supported |
| Conference Software Management: |
Optional |
| White On Blue Backlit LCD: |
Yes |
| Red Ring Luminant: |
Yes |
| Type: |
Voice Conferencing System |
| Video: |
Video |
| Communication: |
Wired |
| Pointing Feature: |
Omni-Directional |
| Color: |
Silver |
| Composition: |
Microphone |
Product Description

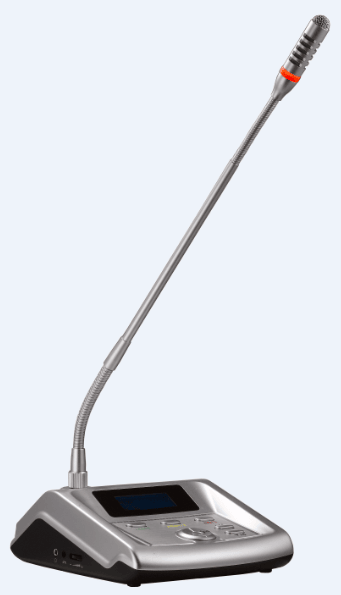

Gonsin TL-VX4200 digital conference system
offers versatile conferencing solitions featuring:
microphone discussion,
interactive voting,
simultaneous interpretation,
languege distribution,
video tracking,
digital recording and sofeware control.
Main Features:
1.Highly resistant to mobile phone interference;
2.Channel selectors for interpretation listening;
3.Pluggable gooseneck microphone stem;
4.Long mircophone pick up range;
5.Low profile built in loudspeaker;
6.5 buttons for voting and election;
7.Built in Chipcard reader;
8.White on blue backlit LCD;
9.Red Ring Luminant to Indicate active mic.
Basic Function:
1.Microphone discussion:Push to talk or request to talk;
2.Auto/Fifo/Operator/Vox modes are available for microphone management;
3.VOX sensitivity and mic time-out are adjustable;
4.language interpretation:1+5 channel number is shown on LCD.Headphone listening with volume control;
5.Attendance registration:By IC card or MIC key press;
6.Voting:YES/ABST/NO. Vote counting and result display are enabled automatically by PC:
--Single-choice and multiple choice voting;
--First keypress and final keypress voting;
7.Election:elect one or more out of N candidates,with competitive election,equal number election and quick election;
8.Evaluation:4-key evaluation;
9.Dynamic LCD messages for voting,discussion interpretation and attendance registration;
10.Supports automatic video tracking,with preset panoramic position.
Technical Specifications:
Mounting Type:fixed or portable tabletop;
Language intterpretation 1+5 Channels;
Mic pick-up range:up to 600mm;
Frequency response 50HZ-18KHZ;
Sensitivity:-46db;
Power input:24V DC;
Microphone stem length:410mm;
LCD:47*18mm;
Headphone jack:mini 3.5mm;
Internal loundspeaker:8Ω/2W;
Dimensions:173*145*57mm;
Weight:0.8kg;
Housing color scheme:black or silver.
Central Control Unit TC-Z3
Main features in stand-alone mode;
1.1-4 delegate microphones can be active simultaneously;
2.Selectable microphone mode:Auto/Fifo/operator/vox;
3.Vox sensitivity can be set to H/M/L to suit conference environment;
4.ID number writing for each unit using LCD on front panel;
5.6 channels are available for simultaneous interpretation;
6.Automatic video tracking with up to 8 HD cameras;
7.built in DSP processor for acounstic feedback prevention;
8.built in treble/bass compensation for better sound quality;
9.Built in MIC in audio input for wireless mic system.
Extented features under PC/software control
1.Centralized conference management;
2.Operator can allow or reject delegate request to talk;
3.Speaking time limit can be prest for conference units;
4.Delegate unit can be set to be vice-chairman unit;
5.Attendance registration using IC cards or Reg button;
6.Conference audio recording and video recording.
Technical Specifications:
Standard 2U housing for 19" rack mounting;
Standard system capacity: 60 units;
Active delegate microphone limit: 1/2/3/4;
PC communication: RS232;
Video camera communication: RS422/RS485;
Video camera supported: Up to 4;
Video tracking protocol: Pelco-P9600 / Sony-VISCA;
AV matrix switcher input: RCA x 4 (1Vp-p, 75Ω );
AV matrix switcher output: RCA x 2(1Vp-p, 75Ω );
REC OUT audio output: 0-2.8V Vpp;
S/N ratio: >95dB;
Power supply: 220V/50Hz or 110V/60Hz, ± 10%;
Maximum power: 300W;
Dimensions: 485mm× 320mm× 90mm (W*D*H);

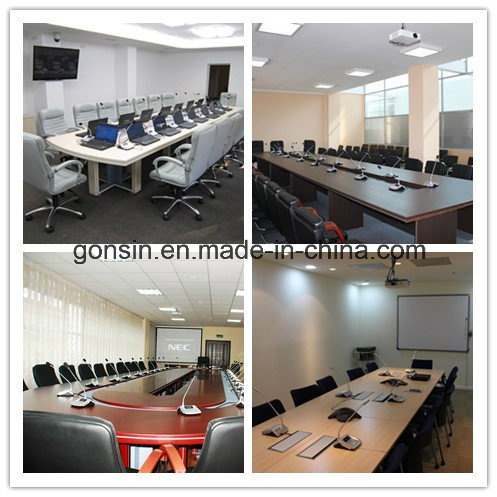

Weight: 12 kg.Sucessful Project Sharing

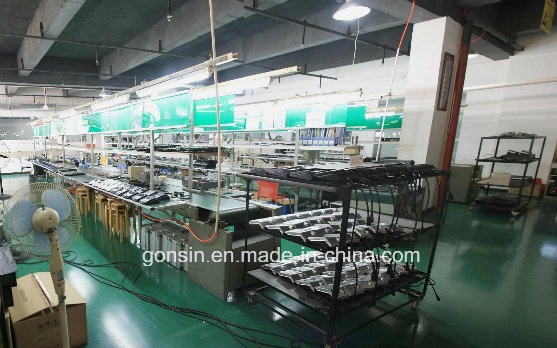

Workshop:
