| Prod Model: |
GH800480-80M01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Size: |
8.0 Inch(Diagonal) |
| Driver Element: |
a-Si TFT Active Matrix |
| Resolution: |
800 X 3(RGB) X 480 |
| MCU Interface: |
8-Bit/16-Bit 8080 4-Wire Spi |
| Controller IC: |
Ra8875 |
| Color Arrangement: |
RGB-Stripe |
| Screen Size: |
≤17" |
| Application: |
Taxi |
| Aspect Ratio: |
16:10 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
3D |
| Optimum Resolution: |
800X480 |
| Interface Type: |
RGB |
Product Description

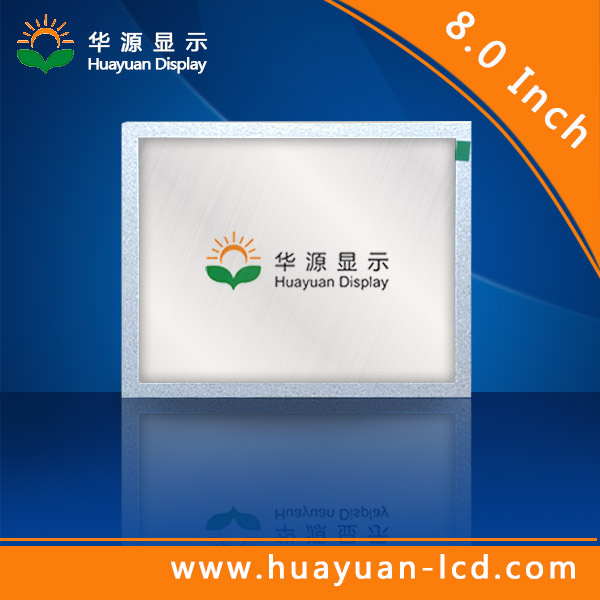

TFT type 8 Inch Industrial lcd display
Gerneral Specification
1LCD size 8.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 800 X 3(RGB) X 480
4 Display mode Normally White, Transmissive

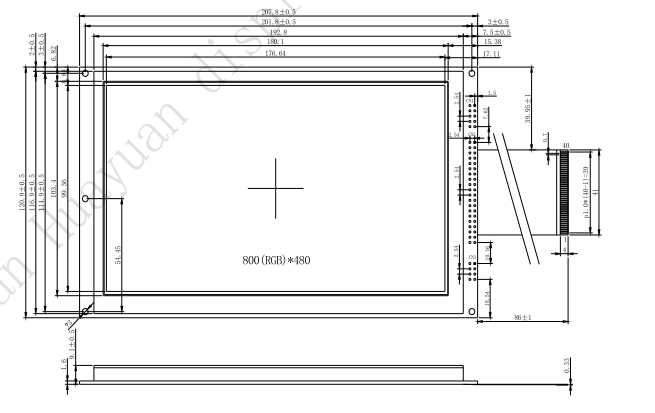

5 Dot pitch 180.1 x 103.4mm
6 Active area 176.64 x 99.36mm
7 Module size 207.8x120.9x 9.1mm Max.
8 Surface treatment Anti-Glare
Place of Origin:Guangdong China (Mainland
Brand Name:Huayuan
Model Number: TFT126A
1. The LCD panel is plate glass. Do not subject the panel to mechanical shock or to
excessive force on its surface.
2. The polarizer attached to the display is easily damaged. Please handle it carefully
to avoid scratch or other damages.
3. To avoid contamination on the display surface, do not touch the module surface
with bare hands.
4. Keep a space so that the LCD panels do not touch other components.
5. Put cover board such as acrylic board on the surface of LCD panel to protect panel
from damages.
6. Transparent electrodes may be disconnected if you use the LCD panel under
environmental conditions where the condensation of dew occurs.
7. Do not leave module in direct sunlight to avoid malfunction of the ICs.
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
