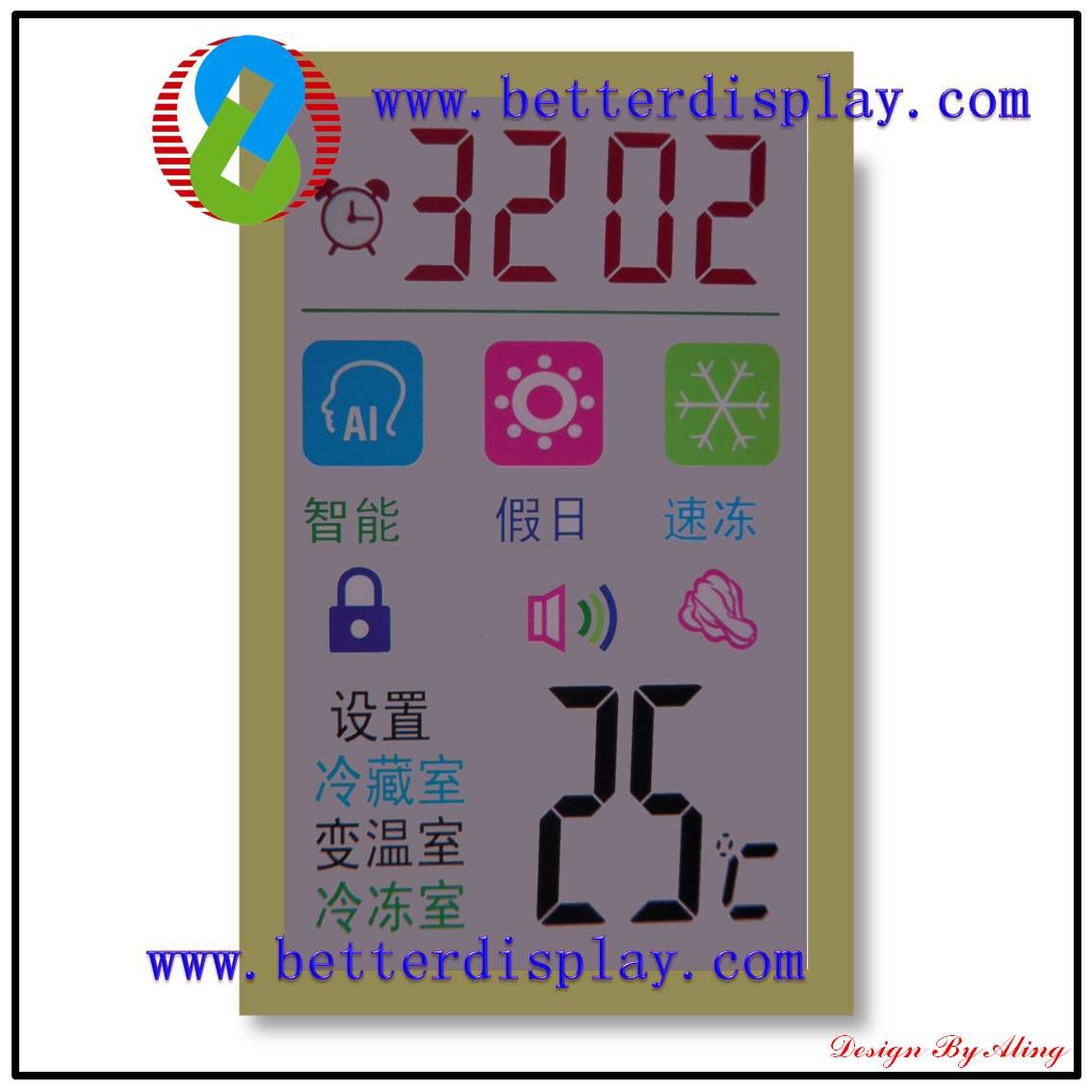

TFT LCD Display for Air Conditioner

Prod Model:	XK - 10201648
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Length*Width*Highth
Display Type:	Va Tn Display
LCD Operationg Voltage:	5.0V?(3V-5V.>2.8V Is Ok)
Operating Temp:	-20-70c
Storger Temp:	-30-80c
Drive Mode:	1/4duty ,1/3bias
Viewing Direction:	6h(Bottom Viewing)---(12h,6h,3h,9h)
Polarizer Type:	Front :Transmissive,
Connector:	Pin
Power:	+5V
LCD Drive Mode:	Multiplex Drive LCD Module
Touch Screen Type:	Resistive
DOT-Matrix Graphic LCD Module Type:	Row/Column-Driven
Digital LCD Module Type:	Counting Module
Type:	LCM
Display Technology:	FSTN/CSTN
Usage:	Small-sized LCM
Viewing Angle:	TN＋FILM
Response Time:	1ms
Customized:	Customized

Product Description

Spec:

SIZE: Length*width*highth

DISPLAY TYPE: VA TN DISPLAY

LCD OPERATIONG VOLTAGE: 5.0v? (3V-5V. >2.8V IS OK)

OPERATING TEMP: -20-70C

STORGER TEMP: -30-80C

DRIVE MODE: 1/4DUTY, 1/3BIAS

VIEWING DIRECTION: 6H(BOTTOM VIEWING)---(12H, 6H, 3H, 9H)

POLARIZER TYPE: FRONT: TRANSMISSIVE,
BACK: TRANSMISSIVE

CONNECTOR: PIN
BACKLIHGT: WHITE WITH TWO LIGHT, /BLUE BL (CUSTOMER DESIGN)



Product Description
Specifications:
1. With VIDEO, VGA signal input
2. With OSD menu display
3. TFT module use for electronic equipment
4. Favorable price

1. Profile:
Driver Board and 8" Innolux Digital Panel. This driver board can with VIDEO, Y/C, AUDIO & VGA signal input, it adopts the backlight of LED, Two system formats, PAL and NTSC (auto switch ). With OSD menu control function, and IR receipt function.

2. Application: This module applies for as follow
-Office electronic equipment
-Instrument and Measure appliance
-Machinery and Equipment
-Audiovisual Car Monitor, Portable DVD Player, Long-distance terminal display.
-Household Video door phone, Video phone

3. Main Parameters:
Backlight: LED
Pixel resolution: 800(H) X 3RGBx 600V
View angle (Ø /U/D/L/R); 50/70/70/70
Brightness: 250 CD/m2
System format: PAL/NTSC automatically switch
Video input: 1.0Vp-p 75 ohm
Power Supply Input: DC 12V ± 25% 330mA± 30mA
Panel display dimension(mm): 162.0(H)× 121.5(V)
Panel Overall dimension(mm): 183(W)× 141(H)× 6.3(D)
Structural dimension of PCB (mm) without VGA socket: 128.8(W)× 85.4H× 9.4D
Working temperature: -10~+60
Environmental relative humidity: 5~95% RH
Storage temperature: -20~+70]
