| Prod Model: |
8D0030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
Va LCD Module |
| LCD Operating Voltage: |
5.0V |
| Driving Method: |
1/4duty ,1/3bias |
| Viewing Angle: |
12:00 Viewing |
| Polarizer: |
Transmissive,Negative |
| Operater Temp: |
-20-70degree |
| Storge Temp: |
-30-80 Degree |
| Connector: |
Pin Connector |
| Customerize: |
Yes |
| Wrannty: |
50000h |
| Application: |
Home Appliance, Autodvd, Meter |
| Feature: |
Tn Va Silk Prin Screen Display |
| Optimum Resolution: |
3840x2160 |
| Type: |
TN |
| Widescreen: |
Widescreen |
| Response Time: |
2ms |
| 3D: |
Not 3D |
| Screen Size: |
Length*Width*Highth |
| Aspect Ratio: |
Length*Width*Highth |
| Interface Type: |
COB, Cog, Tab |
Product Description
Customerized Monochrome small size LCD screen displaySpec:
SIZE:86.3*41*38mm
DISPLAY TYPE: VA TN DISPLAY
LCD OPERATIONG VOLTAGE :5.0v?(3V-5V.>2.8V IS OK)
OPERATING TEMP:-20-70C
STORGER TEMP:-30-80C
DRIVE MODE: 1/4DUTY ,1/3BIAS
VIEWING DIRECTION: 6H(BOTTOM VIEWING)---(12H,6H,3H,9H)
POLARIZER TYPE: FRONT :TRANSMISSIVE,
BACK: TRANSMISSIVE
CONNECTOR: PIN (24)
SCREEN PRINT: three COLORS
BACKLIHGT: WHITE WITH TWO LIGHT,/BLUE BL (CUSTOMER DESIGN)
VA type LCD panel:
1, High -contrast
2,sale-price&multicolor
3,Wide temperature
4,Applies to vehicle, audio products and metersAll lcd display 100% test before delivery
accepted customer design lcd
accepted LCD PANEL &LCD module OEM
| ITEMS | TN- TYPE | HTN-TYPE | STN-TYPE | FSTN-TYPE | VA-TYPE |
| Viewing Angle | 60º | 75º | 115º | 150º | 165º |
| Contrast | nomal | nomal | good | high contrast | high contrast |
| Advantages | 1,easyly made
2,sales price
3,nomal materials
4,nomal product for black-white display | 1,viewing angle
wider than TN | 1,wide viewing angle
2,multi-display
3,wide range application
4, High -road driving | 1,nearly whole viewing angle
2, multi-display
3,wide-range application
4,High-road driving | 1,nearly whole viewing angle
2, multi-display
3,wide-range application
4,High-road driving
5,with color silk printing |
| Disadvantages | 1,low viewing angle
2,sigle display model
3 lower driving method. | Contrast nomally | 1,Complex manufacturing process
2,High cost. | 1,Complex manufacturing process
2,High cost. | 1,Complex manufacturing process
2,High cost. |
| Bitmap Bitmap Bitmap Bitmap | Caculator, Telephone,
nomall electronic products | Instruments and
Industrial meters | Bitmap Bitmap | High-grade Instrument and meter |
| High-grade Instrument
and meter | Bitmap Bitmap CarDVD, Home appliance,
Medical instrument |
|

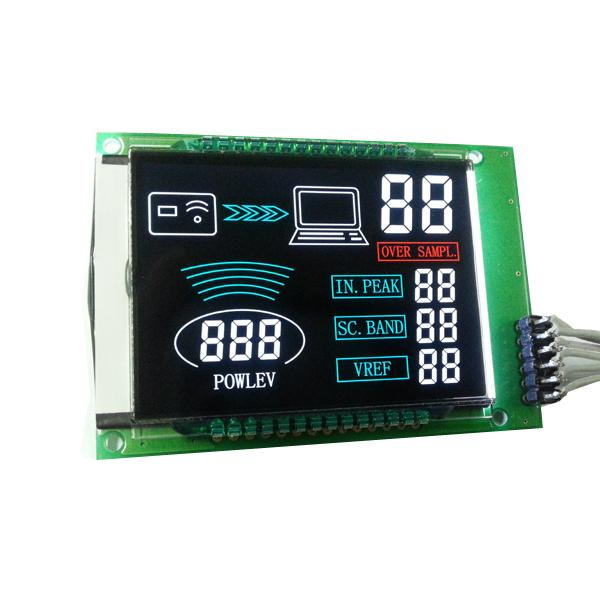

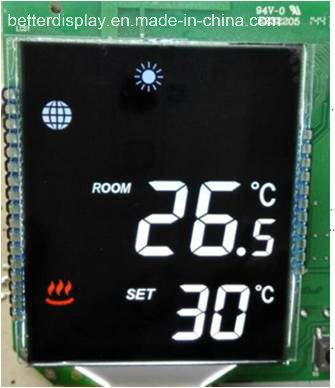

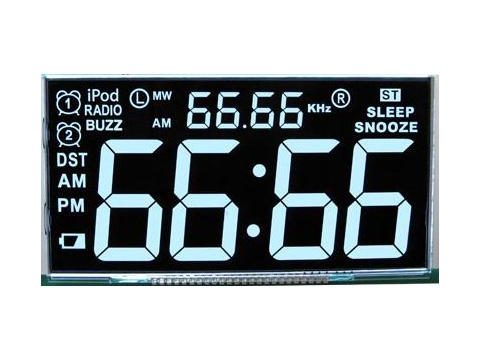

| Picture show |
|
|
| Bitmap Bitmap |
|
|
|
|
|
|
|
|
|
