| Prod Model: |
TFT052A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5inch |
| Resolution: |
320(RGB)X240 |
| LED Numbers: |
6 LEDs |
| Color Depth: |
24bit |
| Weight(Gram): |
29.3 |
| Piexl Pitch(Mm): |
0.219X0.219 |
| Display Colors: |
16.7m Dithering |
| Pixel Configuration: |
R.G.B.Vertical Stripe |
| LCM(Wxhxd)(Mm): |
76.9*63.9*3.2 |
| Active Area (Mm): |
70.08X52.56 |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Response Time: |
10ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |

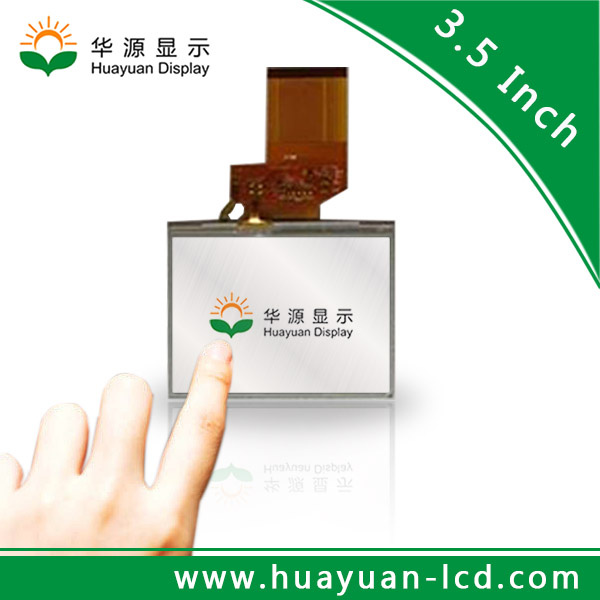

Product Description
Place of Origin: China (Mainland)
Brand Name: Huayuan
Model Number: TFT052A
Type: TFT
Resolution: 320(RGB)*240
Interface: RGB
Color Depth: 24bits
LCM(W*H*D): 76.9*63.9*3.2 mm
Active Area: 70.08*52.56 mm
With/Without TSP: Without TSP
LED Numbers: 6 LEDS
Piexl Pitch: 0.219*0.219 mm
Warranty: 12 Months
Quality: 100% test by aging room
Driver element a-Si TFT Active matrix
Number of Dots 320*(RGB)*240 Dots
Pixel Arrangement RGB Vertical Stripe
Viewing Direction 6 O'clock
Driver IC HX8238D
Back Light White LED
System interface 24-bit RGB interface
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
