| Prod Model: |
TFT052A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT Transmissive |
| Controller: |
Hx8238d |
| Interface: |
24bit RGB |
| Backlight: |
12LED White |
| Resoluton: |
320*240(Wqvga) |
| Active Area: |
70.08*52.56mm |
| Module Size: |
76.9*63.9*4.3mm |
| Pixel Arrangement: |
RGB Vertical Stripe |
| Driver Element: |
a-Si TFT Active Matrix |
| Viewing Direction: |
6 O'clock |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Screen Size: |
3.5" |
| Optimum Resolution: |
320X240 |
| Interface Type: |
RGB |

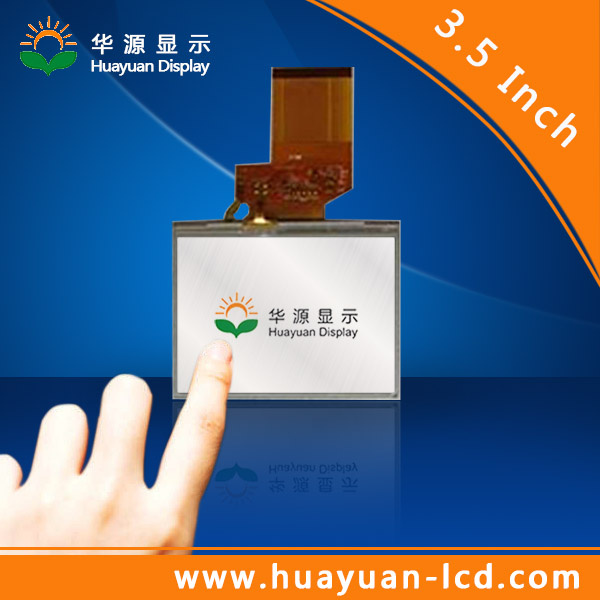

Product Description
1. Gerneral Specification
Place of Origin: Guangdong China (Mainland)
Brand Name: Huayuan
Model Number: TFT052A
Type: TFT
Size: 3.5 inch tft touch display
Resolution: 320x RGB x 240(WQVGA)
Backlight: 6 LEDs in Series
Viewing direction: 6 O'Clock
Driver: HX8238
Interface: 24 Bit RGB
FPC cable: 54 pin
Touch Panel: Resisitive touch panel
Outline dimension: 76.9x63.9x4.3mm
Operating temp: -20 to 70 degree
Customized: Available
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
