| Prod Model: |
RSM-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Communication: |
Wired |
| Connector: |
Tetra Mth500/Mth650/Mth800/Mth850/MTP850 |
| Voice: |
Loud and Clear |
| Color: |
Black |
| Use For: |
Security, Policeman, Swat, etc |
| Warranty: |
12 Months |
| Cerficate: |
CE/RoHS |
| Cable: |
Kevlar+PU |
| Material: |
TPU Black |
| Item: |
Tetra Mth800/Mth850/MTP850 Speaker Microphone |
| Style: |
Handheld Microphone |
| Signal Transmission: |
Wired |
| Sound Channel: |
Mono |
| Application: |
Two Way Radio/Walkie Talkie |
| Connector(',s): |
for Motorola, Kenwood, Icom, Hytera Connector, Rtc |
Product Description

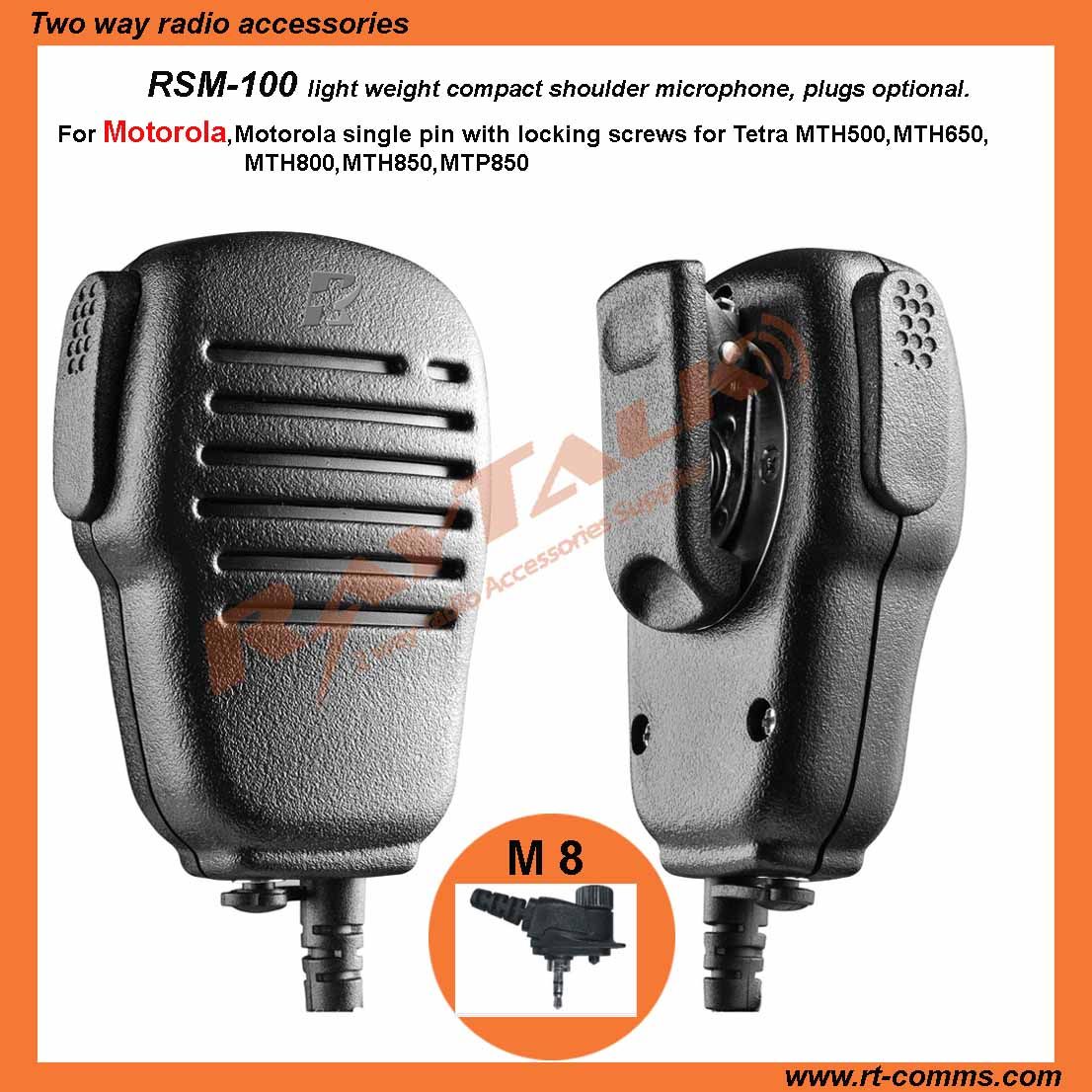

Tetra Mth800/Mth850/MTP850 Walkie Talkie Speaker Microphone with Single Pin Connector & Locking Screws
1. Remote speaker microphone
2. Light duty remote speaker microphone
3. Built in 3.5mm accessory jack
4. Connector is optional
| TECHNICAL SPECIFICATION |
| Speaker |
| Dimension | Φ36*9.8mm |
| Impedance | 8 Ω |
| Rated Input Power | 1.0W |
| Maximum Power | 1.5W |
| Sound Pressure Level |
98 dB±3dB at 1KHz |
Frequency Range |
50Hz - 5KHz |
| Microphone |
| Dimension | Φ9.7*6.5mm |
| Type | Electret Condenser Microphone |
| Impedance | 2.2K Ω |
Sensitivity |
-40dB ± 3dB at 1000Hz(0dB=1V/Pa) |
Operating Voltage | 2.0V |
| Directivity | Omni directional |
| Wire |
| Dimension | Φ4.2mm |
| Durable temperature | 60 ºC-20 ºC |
| Material | TPU Black |
Feature
1. Light weight compacts shoulder microphone
2. Great sounding transmit and receive audio
3. Small size: measures only 3''H×2''W×0.6''D(excluding clip)
4. Integrated PTT button
5. High constructed poly-carbonate housing
6. Strain relief cable for maximum durability
7. Spring loadedm metal reinforced clothing clip 360 degree rotation
Package
1pc with polybag
Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone
Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc.
Optional Connector
Motorola:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, GP300, GP600, GP88, GTX, GTX800, GTX900, P110, P1225, P1225LS, P1325, P225, SP1225, TALKABOUT, T280, TA2280, TA280, TA289, VISAR, I305, GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, EX500, EX560, EX600, GL2000, GP328PLUS, GP338PLUS, PTX700PLUS, PTX760PLUS, GP628, GP644, HT1000, GP1200, GP2010, GP2013, GP900, HT1100, HT6000, JT100, JT1000, MOBIUS, MT2000, MT2100, MTS1200, MTS2000, MTX8000, MTX838, MTX868, MTX9000, MTZ2000, MTP850, MTP800, MTH650, HTH800, MOTOTRBO, XPR6300, XIRP8200, XIRP8208, XIRP8260, XIRP8268, XPR6350, XPR6500, XPR6550, XPR6580, XBR6300. XBR6350, XBR6500, XBR6550, XBR6580, DP3400, DP3600, DGP4150, DGP6150, GTP800, APX7000
Kenwood:
TK208, TK308, TK2102, TK2107, TK238, TK3102, TK3107, TK338, TK2100, TK2100K2, TK260, TK260G, TK261, TK270, TK272, TK272G, TK278, TK3100, TK3100K2, TK3101, TK360, TK360G, TK370, TK370G, TK372, TK372G, TK373G, TK378, TK259, TK355, TK359, TK250, TK250G, TK250N, TK350, TK350G, TK350N, TK353, TK353N, TK430, TK431, TK2140, TK2160, TK2170, TK2360, TK3140, TK3148, TK3160, TK3170, TK3173, TK3360, TK2212, TK2300, TK2302, TK3212, TK3300, TK3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207, TK3302U, TK4100, TK490, TK180, TK190, TK280, TK290, TK380, TK390, TK480, TK481, TK5400, TK3130, TK3131, NX200, NX300, TK-208, TK-308, TK-2102, TK-2107, TK-238, TK-3102, TK-3107, TK-338, TK-2100, TK-2100K2, TK-260, TK-260G, TK-261, TK-270, TK-272, TK-272G, TK-278, TK-3100, TK-3100K2, TK-3101, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-372G, TK-373G, TK-378, TK-259, TK-355, TK-359, TK-250, TK-250G, TK-250N, TK-350, TK-350G, TK-350N, TK-353, TK-353N, TK-430, TK-431, TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3148, TK-3160, TK-3170, TK-3173, TK-3360, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK-2200, TK-2200L, TK-2200P, TK-2202, TK-2202L, TK-2207, TK-3200, TK-3200LP, TK-3200P, TK-3201, TK-3202, TK-3207, TK-3302U, TK-4100, TK-490, TK-180, TK-190, TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-5400, TK-3130, TK-3131, NX-200, NX-300
HYT(Hytera):
TC-268, TC-368, TC-268S, TC-368S, TC-370M, TC-380M, TC-3000, TC-3600, TC-3600M, PT-790, TC-780, TC-500, TC-600, TC-700, TC-610, TC-620, TC-2110, TC-1600, TC-510, CPS, CP-380, CP-330, CP-150, CP-350, CP-220, TC-500S, TC-585, TC-610S, TC-720S, TC-710, TC-510
etc
