| Prod Model: |
telephone cable 1-100pair |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White,Black....Optional |
| Length: |
305m Per Roll |
| Working Temperature: |
-20,+75 |
| Conductor Specification.: |
0.4/0.45/0.5/0.6mm..... |
| Insulation: |
PE |
| Jacket: |
PVC |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
GSM |
| Information Content: |
Voice |
Product Description

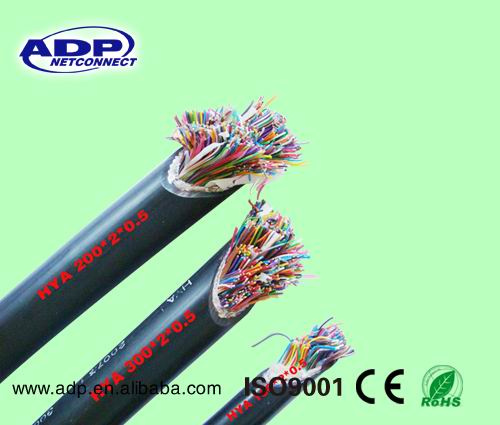

Telephone cable 1-100pair
Specifications
FTP cat3 0.5mm/0.45mm/0.4mm bare copper
1. Inner conductor
2. Factory supply
3. From 1 pair to 224
Telephone cable
1. Conductor size can be produced as per buyer's request. 0.40mm, 0.50, 0.60, 0.64, 0.70, 0.74, 0.90, 1.02mm.
2. Insulation: HDPE, it can be twisted pairs or no twisted pairs.
3. Jacket: PVC, the PVC jacket color can be white, red, black or red, beige, brown, any color is ok to production. Or UV resistance PVC, or fire retardant PVC or fire-retardant PE or UV resistance PE
4. With steel messenger or without steel messenger
5. Pairs and other specification can be produced as per customer's request.
6. Implementation standard: ANSI/ICEA S-98-688-2006, ANSI/ICEA S-99-689-1997.
7. We can produce as per buyer's cable strucutre, too
1pair telephone cable
Specifications:
BC: Bare Copper CCS: Copper Clad Steel
1) 1P*0.4/0.6/0.63mmBC conductor+0.95mmPE insulation+3.8mmPVC jacket
2)18AWG/20AWG CCS/BC Conductor +PVC/PE Insulation
25P*0.4/0.6/0.63mmBC conductor+0.95mmPE insulation+15mmPVC jacket
100P*0.4/0.6/0.63mmBC conductor+0.95mmPE insulation+22.5mmPVC jacket
3) Customers' specifications are welcomed.
Note:
1) Conductor: BC, TC, solid or stranded copper or tinsel conductor
2) From 1 pair to 100 Pairs, shield or non-shield
3) Colour coded PP or PE insulation
Characteristic:
Rated temperature: 75 degree
Rated voltage: 300V
Application:
Telephone handset cord or line cord
1) Packing Lengths: 305m/roll Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other Packing: Optional
| Conductor | CU ,CCA,CCS TC available |
| Cores | 1-100 pairs |
| Jacket | PVC |
