| Prod Model: |
25-pair telephone cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White,Black.....Optional |
| Length: |
305m /500m/1000m Per Roll....Optional |
| Working Temperature: |
-20,+75 |
| Conductor Specification.: |
0.4/0.45/0.5/0.6mm..... |
| Insulation: |
PE |
| Jacket: |
PVC |
| Conductor Material: |
Cu CCA CCS Tc |
| Number Of Pairs: |
5/10/25/50/100/200/300....Optional |
| Condition: |
New |
| Support Network: |
GSM |
| Usage: |
Laptop |
| Type: |
Wired |
| Information Content: |
Voice |
| Certification: |
CE ISO RoHS |
Product Description

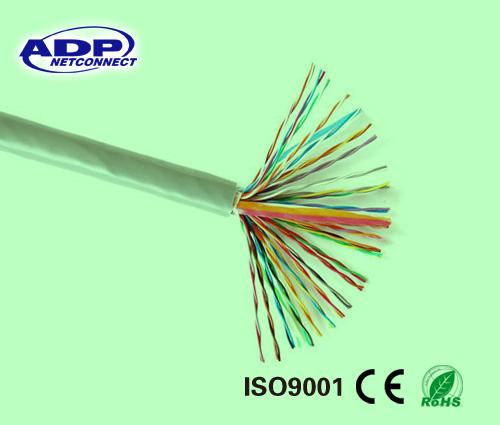

25-pair telephone cable
For Internet Connection
Comply to CE ISO RoHS
Quick Delivery, Low Price
OEM is available.
Specifications
Big Pair Cat5 Lan Cable with competitive price pass FLUKE
Lan cable with conductor of copper 10*2*0.5mm (24AWG)
1. SGS PE insulation
2. TIA/EIA 568B for reference
3. OEM, timely service
Product Description:
Reference standard: UL1581, UL444, ISO9001: 2008, CE
Pure copper conductor
RoHS complied PVC, PE insulation
Complies to TIA/EIA-568B&ISO/IEC 11801
Cable Construction:
Conductor Dimension: 1/0.5+-0.01mm)
Material: Pure Copper
No. Of Pairs: 10/25/50/100...With ripcord
Type of Jacket: New PVC/PE
Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31.25 62.5 100 155 200 250 300 350 400 500 550
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0 25.2 29 32.8 39.8 43 48 51.8
Impedance(ohm): 100+15 100+15 100+15 100+15 100+15 100+15 100+20 100+20 100+20 100+20 100+25 100+25 100+25 100+25 100+25
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 74.3 62.3 53.3 47.3 42.8 39.9 38.3 37.1 36.2 35.4 33.8 32.3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21 19 16 15 13
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21 20 18 16 15 13 12 10
Package:
305m/roll 500m/roll 1000m/roll
As customers' request.
|
Application: |
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring |
|
No. of Pairs |
5/10/25/50/100/200..... |
|
|
|
Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.
Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.
Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.
We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
