| Markets: |
North America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Sound Channel: |
2.0 |
| Voltage: |
110V or 220V |
| Function: |
Mini Amplifier |
Product Description
The TAS5630 is a high-performance analog-input class-D amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W. Stereo into 4-Ω to 8-Ω speakers from a single 50-V supply.
PurePath HD technology enables traditional AB-amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class-D amplifiers.
Unlike traditional class-D amplifiers, the distortion curve only increases once the output levels move into clipping.
PurePath HD technology enables lower idle losses, making the device even more efficient.
Sinewave have good experience in SMPS and high frequency switch amplifier, we develop the first SMPS and TAS5630 chip all in one board in the world, and this product have excellent sound and high stablity. Not only it used in PRO audio but hot loved for audiophile.

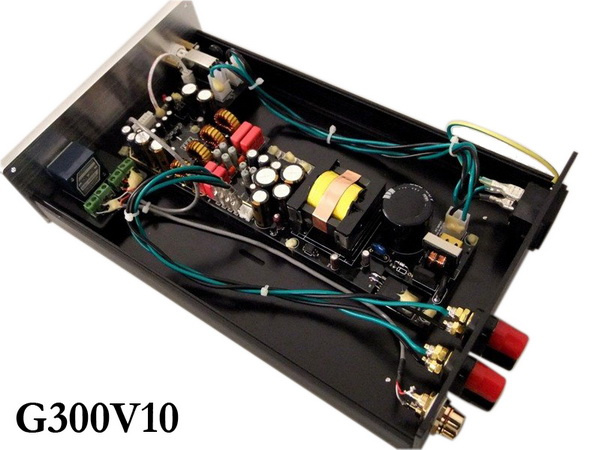

The lastest version on market now, G300V10 have excellent sound, optimization preamp, more powerful, optimization transformer higher power supports, Good EMI suppression circuit inside.
GENIUS300V10 FEATURES
1. SMPS+CLASS D Hi-Fi AMPLIFIER
2. ALL ALUMINUM CASE
3. HIGH EFFICIENCY QUASI RESONANT POWER.
4. ALPS RK27 POT INSIDE
5. EASY MODE JUMP DESIGN.
GENIUS300V10 SPECIFICATIONS:
1. Power out:
2X150W/4Ω/0.5%THD+N
1X300W/4Ω/0.5%THD+N
1X600W/2Ω/10%THD+N(peak value )
2X300W/4Ω/10%THD+N(peak value)
2. Input sensitivity: 0dB/100kΩ
3. Frequency response: 20-20kHz +/-1dB
4. Loader: 2Ω/4Ω/8Ω
5. AC power: 90-265Vac 50 or 60Hz
Establishing in 2009, Sinewave Electronics Co., Ltd locates in the beautiful city HangZhou China. We have rich experience in High Efficiency amplifier and digital audio processing system. We have developed lots of AMP modules, PRO amplifiers and digital processing products for our customers from across the world.
Under the goal of "The Relentless Pursuit of Perfection", our company keeps increasing quality level and developing new technology to meet customers' demand.
