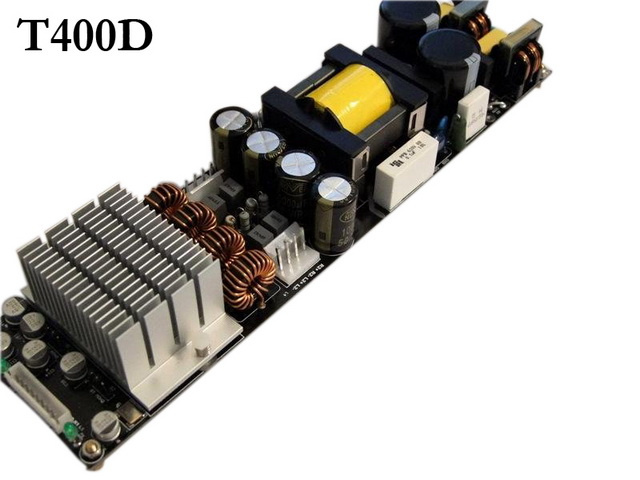

4Channel Tda8950 +SMPS 400W PRO Audio Amplifier Module

Prod Model:	T400D
Markets:	North America,Eastern Europe,Oceania,Eastern Asia,Western Europe
Function:	Post Amplifier
Voltage:	110V or 220V
Sound Channel:	4

Product Description

T400D FEATURES:
TDA8950TH Hi-Fi class D chip inside
Stage based on the new type high stability RESONANT SMPS
High performance audio signal compressor integrated, no overload signal pass, high stability.
A wide set of features for plug and play implementation into applications such as
Active speaker and home theatre and other hi-fi amp equipment
Easy using, BTL/SE jumped by jumper, 1channel or 2channel or 4channel
Auxiliary preamp power supprot. +/-15V &5V 500mA max each.

T400D SPECIFICATIONS:
POWER OUT: 4× 100W/ 4Ω /0.05%THD/4SE MODE
2× 200W/ 8Ω / 0.05%THD / 2BTL MODE
1× 400W/ 4Ω /1%THD/ PBTL MODE
FREQUENCY RESPONSE: THD+N ≤ 0.05% / 20-20kHz / ± 1dB/1W
INPUT SENSITIVITY: 0dB(1Vrms)
COMPRESSOR THRESHOLD: +4dBu
POWER SUPPLY: 110VAC OR 220VAC 50 OR 60Hz
AUXILIARY POWER: +/- 15V/100mA and +5V/200mArms
DIMENSIONS: 250MM(length)*65mm(width)*39mm(height)
WEIGHT: 0.47Kg
